Work rest blade height stands out as the most critical mechanical variable in grinding operations. Yet, facility operators frequently mismanage this exact parameter. Microscopic deviations in blade height lead to severe production consequences. You will often encounter out-of-round parts, severe chatter, unacceptably high scrap rates, and extended setup times. Mastering this specific parameter is essential for achieving long-term process stability. We will explore how geometric relationships dictate part roundness. You will learn to diagnose common surface defects linked to improper setups. Furthermore, we explain how modern equipment mitigates the risks associated with manual blade adjustments. By understanding centerline physics, your team can replace trial-and-error with reliable, repeatable methods. This guide delivers actionable insights into optimizing grinding geometry for superior manufacturing outcomes.
Positioning the workpiece above the machine's centerline is required to generate a true rounding action.
Setting the blade too high causes chatter and vibration; setting it too low results in lobing and geometric failure.
Work rest blade angles and materials must be matched to the specific demands of the production run.
Transitioning from manual setups to a CNC centerless grinder replaces operator guesswork with repeatable, servo-driven accuracy.
Three main components control the entire machining process. They form a functional mechanical triad. You have the grinding wheel, the regulating wheel, and the work rest blade. Each element must align perfectly. This alignment dictates the success of precision centerless grinding. The regulating wheel controls the rotational speed of the part. The grinding wheel removes the material. The work rest blade supports the part between these two wheels.
You must never place the workpiece exactly on the centerline of the two wheels. Physics demands a slight vertical offset. Operators must elevate the center of the workpiece above the machine centerline. If you place the part exactly on the center, the wheels will simply reproduce any existing irregularities. A flat spot on the raw material will transfer directly to the finished product. Elevating the part changes the contact angles. This shift forces the machine to correct geometric flaws.
The above-center offset creates a dynamic rounding action. High spots on the unmachined part eventually rotate against the regulating wheel. When this happens, the geometry pushes the part deeper into the grinding wheel. The abrasive wheel then grinds the high spot away. This progressive action eliminates ovality rapidly. As the part continues to spin, the varying contact angles ensure continuous correction. It transforms an irregular cylinder into a perfectly round shaft.
Engineers rely on standard starting formulas. You typically position the center of the part above the wheel centerline by a specific fraction. A common baseline is one-half of the workpiece diameter. However, you should rarely exceed a maximum elevation of 0.5 inches (12.7 mm). Ideal height varies constantly. It depends on material hardness and total stock removal requirements. Operators must establish a reliable scientific baseline before attempting any micro-adjustments.
Improper blade height directly causes specific surface defects. Operators must learn to read the workpiece. The metal tells you exactly what went wrong during the cycle. By recognizing these symptoms early, you save valuable production time.
Lobing creates a shape resembling a polygon rather than a perfect circle. You will often see a three-point or five-point out-of-roundness.
Cause: The work rest blade sits too low. It rests too close to the machine centerline. The part mimics its original imperfect shape instead of undergoing correction. The geometric angles fail to push high spots into the grinding wheel effectively.
Chatter manifests as visible parallel lines or a wavy pattern on the metal surface. The surface finish severely degrades.
Cause: The work rest blade sits too high. The workpiece loses stable, continuous contact with the regulating wheel. It begins to bounce. This bouncing causes rhythmic vibrations against the grinding wheel. These vibrations cut the chatter pattern into the metal.
Tapering occurs when one end of a part measures smaller than the other. This defect frequently plagues shaft centerless grinding operations.
Cause: Improper blade height alignment across the entire length of the blade causes this issue. Long, slender parts require perfectly parallel support. If the blade slopes, it creates uneven grinding pressure. The shaft bows or deflects during the pass.
Operators need structured methods to isolate variables. A systematic approach prevents unnecessary wheel dressing. It stops operators from randomly adjusting coolant flows when the actual problem is geometric.
Diagnostic Troubleshooting Matrix
Defect Symptom | Visual/Measured Evidence | Primary Blade Cause | Secondary Verification |
|---|---|---|---|
Triangular Lobing | Micrometer shows varying diameters; polygon shape. | Blade is set too low (near center). | Check regulating wheel speed. |
Surface Chatter | Visible rhythmic waves or spiral lines. | Blade is set too high (bouncing). | Inspect blade for looseness. |
Axial Tapering | Diameter gradually decreases along length. | Blade is not parallel to wheels. | Verify guide plate alignment. |
Galling / Scratches | Deep longitudinal scratches on the part. | Blade material picking up debris. | Check coolant filtration. |
Setting up a machine for continuous production requires precise calculations. Every angle interacts with the other variables. You must balance feed rates against material removal capabilities. We will look at the specific parameters necessary for successful through feed grinding.
The top angle of the work rest blade heavily influences the process. Industry standards typically utilize a 30-degree top angle.
Steeper Angles (e.g., 35 degrees): These generate faster rounding action. They force the part against the regulating wheel firmly. Use steeper angles for lightweight parts.
Shallower Angles (e.g., 20 degrees): These support heavy, large-diameter parts. A shallower angle prevents heavy workpieces from wedging tightly between the blade and the wheels.
Choosing the wrong angle compromises the entire setup. It causes parts to stall or spin erratically.
The regulating wheel dictates the axial feed rate. You must tilt the regulating wheel slightly relative to the grinding wheel. This feed angle usually ranges from 1 to 5 degrees. The tilt interacts directly with the work rest height. If you change the blade height, you alter the effective contact point. This shift slightly modifies how fast the part feeds through the machine. Operators must calculate these two variables together.
Physical constraints limit your tooling choices. The blade thickness must remain marginally thinner than the finished part diameter. If the blade is too thick, the grinding wheel will collide with it. This collision destroys the wheel and the blade instantly. However, thinner blades sacrifice structural rigidity. You must select blade materials that offer extreme stiffness even at narrow thicknesses. Proper clearance guarantees safe, uninterrupted production.
Evaluating production machinery requires looking closely at changeover times. Legacy equipment relies heavily on operator intuition. Modern automated systems rely on exact mathematics. Understanding this difference transforms production floors.
Manual grinders carry hidden operational costs. Operators depend on personal "feel" to set blade heights. They use small metal shims and dial indicators to align the blade. This traditional method requires immense skill. It leads to lengthy changeover times. A complex setup might take a skilled machinist four hours to dial in perfectly. Furthermore, you will see inconsistent setups across different shifts. A morning shift operator might use different shims than the night shift operator. This inconsistency destroys process reliability.

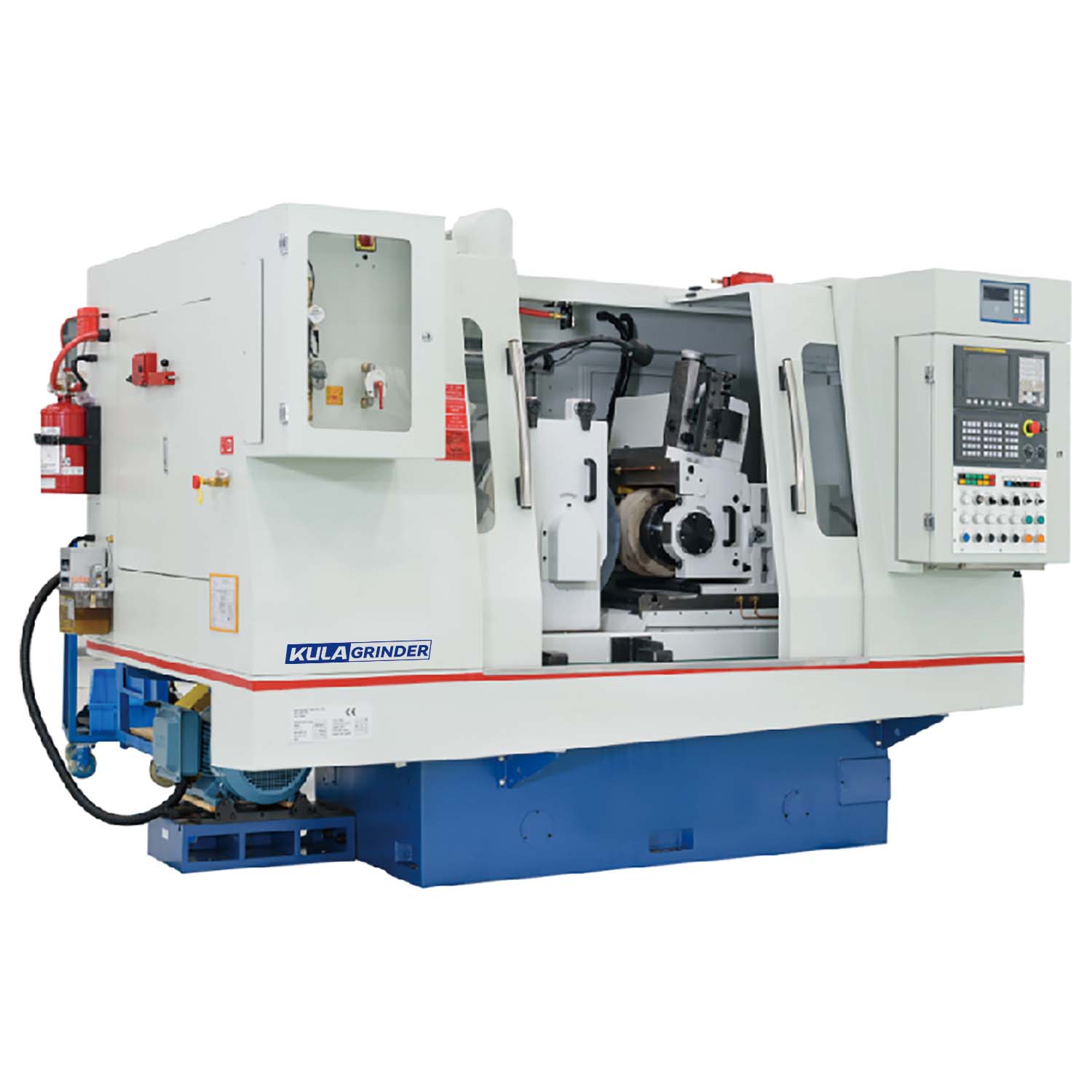

A modern CNC centerless grinder completely transforms the evaluation stage. It eliminates human guesswork from geometric setups.
Servo-Driven Positioning: The machine adjusts the work rest height using precise servo motors. You can program these adjustments down to the micron.
Recipe Storage: Engineers can save exact blade heights for specific parts. You can store regulating wheel RPMs and feed rates in a digital recipe. Operators simply load the file for recurring part numbers.
Taper Compensation: CNC controls offer automated, on-the-fly corrections. The machine adjusts wheel dress profiles or slide positions without shutting down. You no longer need to mechanically shim the blade mid-run.
You should frame equipment upgrades strictly in terms of throughput. Transitioning to servo-driven setups dramatically improves Overall Equipment Effectiveness (OEE). Reducing a manual setup from four hours down to a 15-minute CNC changeover yields massive productivity gains. Machines spend more time grinding and less time waiting for manual adjustments. This increased uptime directly boosts factory output. It allows manufacturers to handle smaller, more frequent batch runs profitably.
Even the most advanced machine fails if the tooling degrades. Work rest blades endure severe friction and constant pressure. You must evaluate tooling based on material science and wear patterns.
Matching the blade material to the workpiece prevents surface defects. We generally categorize blade materials into three main types:
High-Speed Steel (HSS): This provides a flexible, standard option. It works well for short runs or softer plastics.
Carbide-Tipped: Carbide offers superior wear resistance. It easily handles high-volume steel parts. It resists grooving longer than any other common material.
Bronze or Ampco: Bronze prevents galling and marring. You should use bronze blades when grinding softer metals like aluminum or titanium.
Blades do not last forever. A degrading blade dynamically alters the work rest height mid-run. As the workpiece carves a groove into the blade top, the part drops lower. This drop slowly pushes the workpiece closer to the centerline. Precision drift occurs rapidly. A setup that produced perfect parts at 8:00 AM might produce lobed scrap by 2:00 PM. You must monitor this degradation closely.
We recommend establishing strict criteria for auditing blade conditions. Operators should inspect the blade top for flatness during every changeover. Use an optical comparator to check the exact angle. Even the most advanced servo system cannot compensate for a heavily grooved or chipped work rest blade. Regrind blades at the first sign of visible wear. Proactive tooling maintenance guarantees geometric stability.
Work rest height remains the foundational geometric pivot for both roundness and surface quality. You cannot achieve tight tolerances if this vertical offset is incorrect. Improper setups guarantee chatter, lobing, and expensive scrap. The physical interaction between the wheels and the blade dictates your manufacturing success.
Traditional math and operator experience can certainly solve immediate scrap issues. Skilled machinists have done this for decades. However, long-term scalability requires modernization. Relying on manual shims and dial indicators bottlenecks high-volume production. It introduces unacceptable variability into the process.
We encourage production leaders to take immediate action. Audit your current scrap rates. Measure your true changeover times across different shifts. Consult with an application engineer to evaluate your baseline metrics. Upgrading to automated, servo-driven equipment might be the optimal decision for your facility. Embracing programmable precision ensures consistent quality, eliminates guesswork, and drastically increases factory throughput.
A: A general rule of thumb is to place the part center approximately one-half of its diameter above the wheel centerline. However, you should rarely exceed a maximum elevation of 1/2 inch (12.7 mm). Micro-grinding exceptionally small parts may require deviations from this rule to maintain stability.
A: Yes. The blade angle directly interacts with part weight and regulating wheel friction. If the angle is too steep for a heavy part, the part wedges between the wheels and stalls. If it is too shallow for a light part, it may spin erratically.
A: You should inspect the blade during every tooling changeover. Look for visible grooving, galling, or edge chipping. Replace or regrind the blade immediately if you detect any loss of flatness. Worn blades dynamically lower the part height, instantly causing precision drift and roundness failures.
