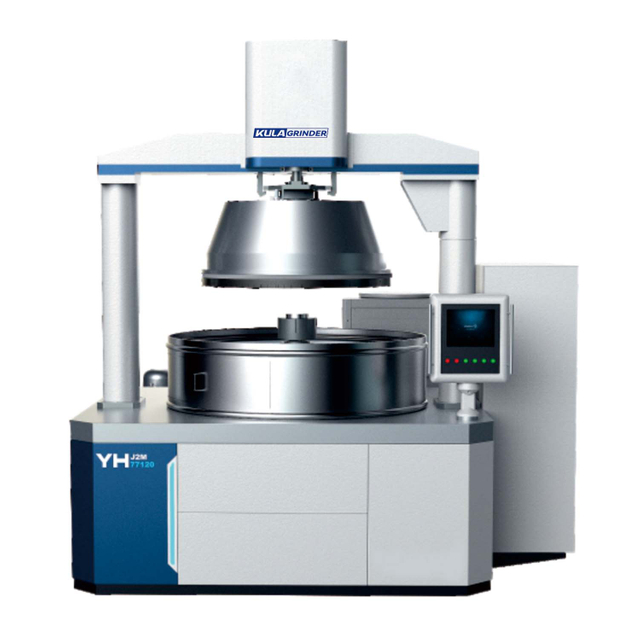

The CNC Vertical Grinder is a high-precision grinding machine specifically designed for multi-surface precision grinding of large parts. With its vertical layout and powerful CNC system, the CNC Vertical Grinder can efficiently process internal and external circles, end faces, taper surfaces, and grooves all in a single clamping. It is widely used in key industries such as aerospace, automotive, and energy for the precise machining of critical components.
This machine is especially suitable for complex-shaped parts requiring high load capacity and precision. Its exceptional grinding accuracy and processing efficiency make it an indispensable piece of equipment in modern manufacturing.
High Precision and Stability: Featuring a high-rigidity cast iron bed and precise spindle and worktable components, the CNC Vertical Grinder ensures long-term stability and high accuracy even under heavy loads. It is ideal for processing large and heavy parts.
Multi-Surface Grinding Capability: The machine can perform grinding on internal and external circles, end faces, taper surfaces, and grooves in one clamping. This reduces re-clamping and increases machining efficiency.
Intelligent Control System: Equipped with an advanced CNC control system, the CNC Vertical Grinder supports various automated functions such as online measurement, dynamic balancing, and automatic wheel changing, ensuring stable, high-performance operation across different production environments.
High-Volume Production Capability: This machine excels in high-efficiency grinding, making it highly suitable for batch production, reducing downtime, and minimizing manual intervention.
High-Precision Spindle System: The spindle precision is extremely high, with radial runout ≤ 0.0005mm and spindle vibration ≤ 0.1mm/s, making it capable of achieving mirror-like surface finishes, ideal for parts requiring exceptional surface quality.

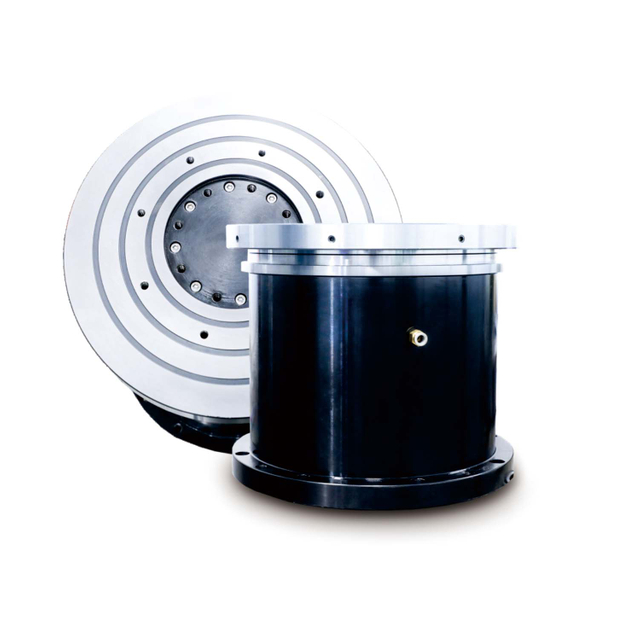

Hydraulic or Electric Rotary Worktable: The worktable is driven by hydraulic or electric systems to ensure stability and high accuracy during processing. The high torque design ensures consistent precision over long periods.
Versatile Design: The machine supports multi-axis motion and optional workhead configurations, enabling complex contour grinding such as step forms, cone surfaces, and more, providing unmatched versatility for comprehensive part finishing.
Automated and Intelligent Features: The integrated automation features, including real-time error correction through online measurement and compensation, ensure processing stability and tight tolerances, reducing human error and boosting efficiency.
Efficient Cooling System: The machine is equipped with a high-efficiency cooling system that precisely delivers coolant to the grinding area, preventing overheating and ensuring optimal chip removal, which helps maintain the integrity of the workpiece.
The CNC Vertical Grinder is used across various industries for high-precision component machining. Here are some key applications:
Aerospace Industry: Precision grinding of critical components like turbine disks, turbine blades, and landing gear.
Energy Sector: Grinding of turbine blades, wind power gears, and other components used in energy generation systems.
Heavy Machinery: Used for processing large components like bearing housings, shafts, and support sleeves, ensuring long-term reliability and performance.
Automotive Manufacturing: Ideal for grinding engine components, transmission parts, and other critical automotive components that demand high precision.
Precision Molding: Grinding of precision mold components such as pins, bushings, and ejector rods, which require high surface quality and tight tolerances.
Wide Selection: We offer various models to cater to different applications, from small precision parts to large industrial components.
Precision Grinding Guarantee: With high-precision spindle systems, advanced CNC technology, and an efficient cooling system, we ensure the highest quality grinding results for your workpieces.
Automation and Intelligence: Equipped with advanced automation functions like online measurement and error compensation, our machines allow for intelligent and efficient operations with minimal manual intervention.
Customized Solutions: KULA offers custom configurations based on specific customer needs, ensuring optimal productivity and processing quality.
Factory-Direct Pricing: As a direct manufacturer, KULA provides competitive pricing, along with dedicated technical support and transparent supply chains.
Get in touch with us now for a consultation or quot
