CNC Internal Grinder

CNC Internal Grinding Machine is a computer numerical control (CNC) grinding machine specifically designed for finishing the internal surfaces of part bores.

Unlike CNC external cylindrical grinders, which process the outer surfaces of parts, CNC internal cylindrical grinders use very small grinding wheels that must be inserted into pre-machined bores within the workpiece to perform high-precision grinding of the bore walls.

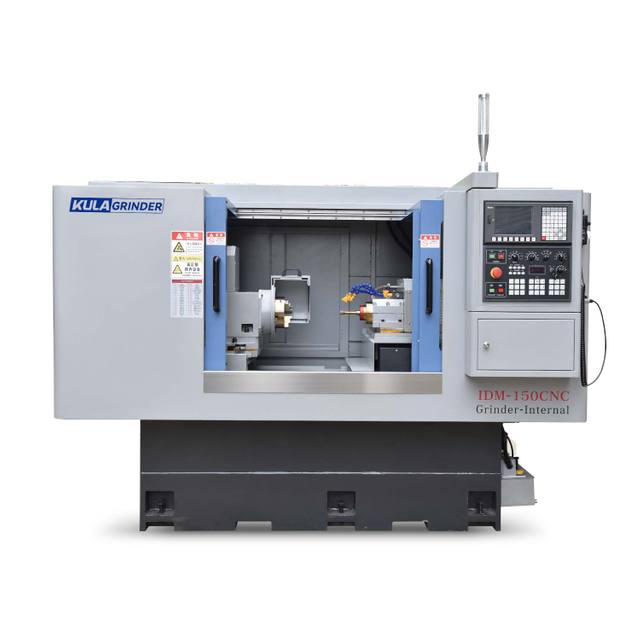

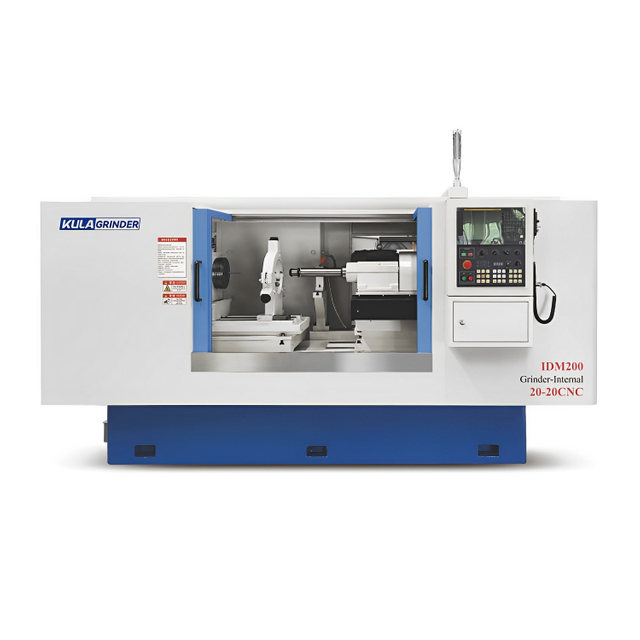

KULA CNC Internal Grinder Series Overview

KULA offers a comprehensive range of CNC Internal Grinders, engineered to meet the diverse demands of modern precision manufacturing. Our lineup provides exceptional accuracy, robust construction, and efficient automation, ensuring superior performance for your critical applications.

Key Features

Extremely high internal bore precision, exceptional flexibility, and efficient automation.

• Robust Construction: Built with high-quality Meehanite cast iron mechanisms, meticulously brazed and machined for exceptional durability and stability, ensuring long-term reliability.

• Advanced CNC Control: Featuring intuitive CNC systems for precise control over grinding processes, enabling complex contour grinding (steps, conical surfaces, arcs) in a single operation.

• Multi-Functional Capabilities: Beyond internal bore grinding, KULA machines are designed with flexibility in mind. With features like multi-axis rotation and optional workhead spindle configurations, they can often process outer diameters, end faces, and R-angles, offering unmatched versatility for comprehensive part finishing.

• Integrated Online Measurement & Compensation: Our advanced technology allows for real-time error correction, ensuring processing stability and consistently tight tolerances.

Industrial Applications

KULA Internal Grinding Machines are indispensable in modern precision manufacturing, addressing the significant challenges of high-precision, complex-shaped internal hole processing across a wide array of industries, its applications are extremely broad, encompassing aerospace, automotive industry, energy sector, mold industry, and more:

• Aerospace Industry: Precision grinding of critical components for aircraft engines, landing gear, and hydraulic systems.

• Automotive Industry: Manufacturing of fuel injectors, engine components, transmission parts, bearing races, and other precision automotive parts requiring tight tolerances.

• Energy Sector: Grinding of components for power generation equipment, including turbines and hydraulic systems.

• Mold Industry: Processing of mold components, pins, bushings, and other precision parts requiring exceptional surface finish.

• Motorcycle Manufacturing: Production of precision engine and transmission components.

• Precision Parts Industries: Any sector demanding extremely tight tolerances and exceptional surface quality on internal bores.

Specific Part Examples: Engine components, transmission parts, fuel injectors, surgical instruments, aerospace components, molds, precision bearings, hydraulic components.

The CNC Internal Grinder is an indispensable piece of equipment in modern precision manufacturing, addressing the significant challenges of high-precision, complex-shaped internal hole processing. By combining computer numerical control, high-speed spindles, and online measurement technology, it can stably produce internal hole parts with extremely tight tolerances and exceptional surface quality in an unmanned manner, serving as the cornerstone for the manufacturing of core components in the industry. KULA also offers CNC ID Grinding Machines, delivering exceptional performance for intricate internal grinding tasks.

Ready to achieve superior internal bore precision and efficiency?

Contact Us for a Custom Solution
