Machine Introduction

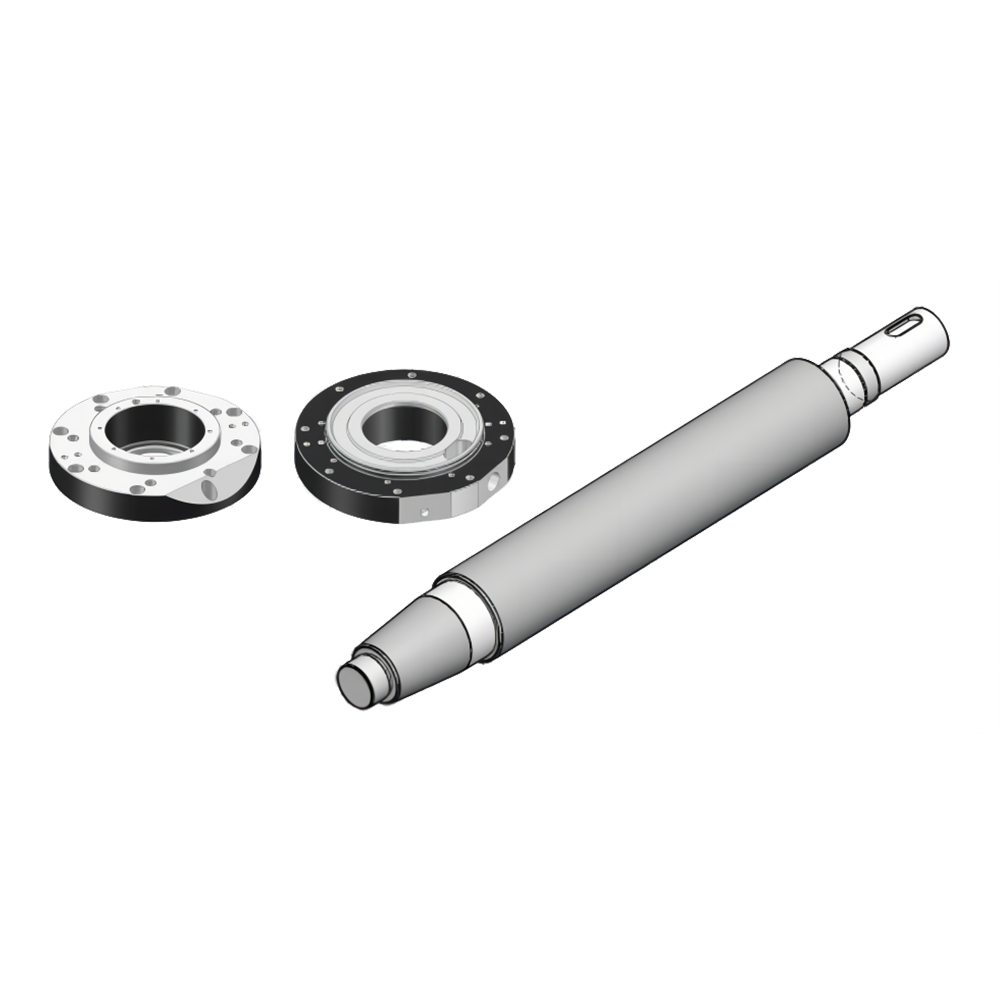

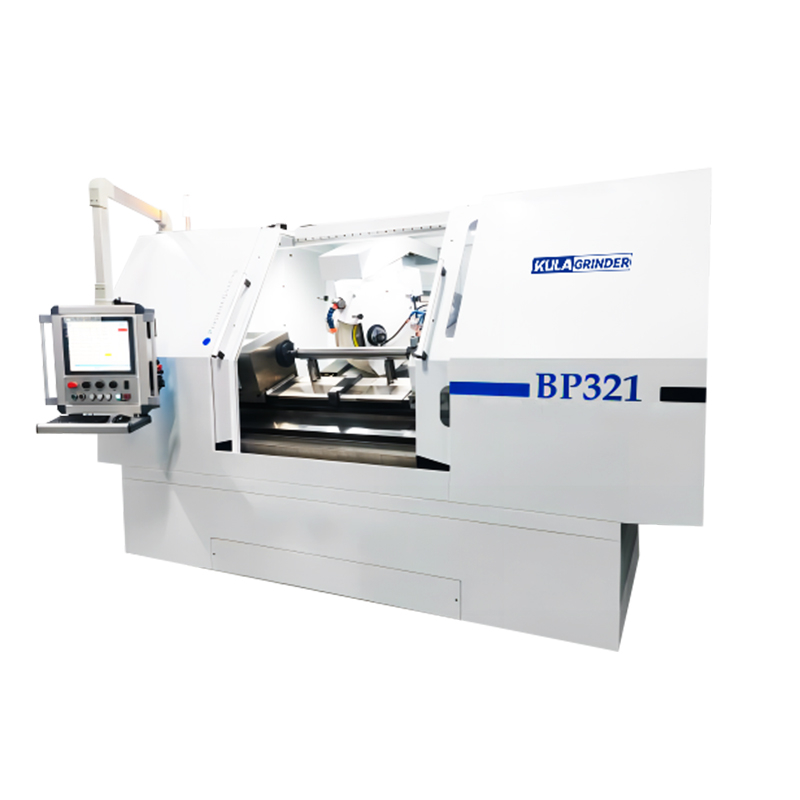

This is a CNC precision compound grinder developed and produced by integrating precision manufacturing technology and grinding process. It is equipped with direct-drive turret-type three-station grinding spindles which can be used to grind external surface, internal hole, end-face and profile of the parts in one-time clamping. It is suitable for precision grinding of shaft, disk, sleeve parts etc.
Technical Specifications
| Model | SSG3 |
| Max.workpiece diameter (mm) | 320 |
| Center height (mm) | 175 |
| Max.grinding length (mm) | 1000 |
| Distance between centers (mm) | 1100 |
| CNC resolution (mm) | 0.001 |
