Full-Process Automation for CNC Compound Grinders: From Rough To Fine Grinding

CNC compound grinders have transformed the way manufacturers approach grinding, offering a full-process automation solution that covers everything from rough grinding to fine grinding with unmatched precision and efficiency.

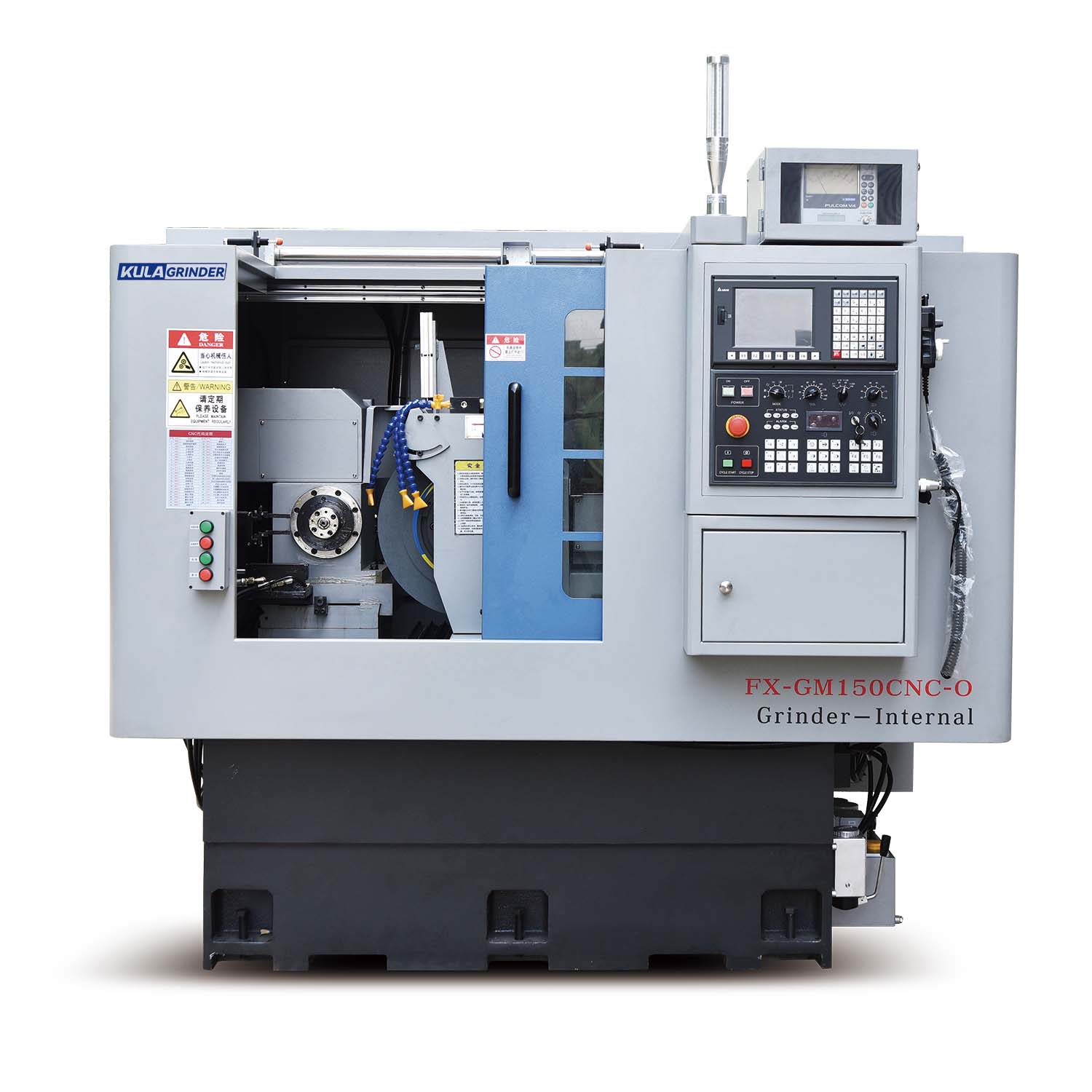

Overview of CNC Compound Grinders

CNC compound grinders are designed to perform both internal and external cylindrical grinding in a single machine. This versatility makes them ideal for industries that require high-precision components, such as aerospace, automotive, and medical device manufacturing. These machines combine the capabilities of multiple grinding processes into one integrated system, saving floor space and reducing the need for multiple machines to complete a single part.

The core components of a CNC compound grinder include a high-performance grinding spindle, linear guides for precision movement, rolling bearings for stability, and an advanced CNC system. The combination of these elements ensures that the grinding process is highly accurate and stable. The grinding spindle, powered by a robust motor and hydraulic device, allows the machine to perform high-speed operations, making it suitable for both roughing and finishing.

Full-Process Automation: Key Features

The full-process automation of CNC compound grinders is one of their most significant advantages. This automation is made possible by the advanced CNC system, which serves as the "brain" of the machine. The CNC system controls every aspect of the grinding process, from programming to real-time adjustments, ensuring that each step is performed with optimal precision. Automated programming, online monitoring, and fault diagnosis are some of the key functions of this system, allowing operators to focus on productivity without needing to manually adjust parameters.

Automation also extends to the handling of workpieces. Automated loading and unloading systems, along with automatic tool changers, minimize the need for manual intervention. This not only reduces labor costs but also lowers the risk of human error, further enhancing the overall precision of the process. For large-scale production environments, robotic loaders ensure continuous, uninterrupted operation, while flexible automation systems can adapt to small-batch production, accommodating a wide variety of workpieces with ease.

Grinding Process: From Rough to Fine

CNC compound grinders excel in both rough and fine grinding applications. Rough grinding involves the removal of large amounts of material quickly to shape a part, while fine grinding focuses on achieving the desired surface finish and tight tolerances. In both cases, CNC compound grinders optimize the grinding path and adjust parameters such as feed rate, speed, and pressure to achieve the best results.

During rough grinding, the CNC compound grinder removes excess material efficiently, preparing the workpiece for finer finishing. The system's ability to automatically switch between rough and fine grinding modes streamlines the process, reducing the need for multiple setups or machine changes. In the fine grinding phase, the machine delivers a smooth, precise finish, meeting the stringent requirements of industries like aerospace and automotive, where tolerances can be extremely tight.

Advantages of CNC Compound Grinders

The benefits of using CNC compound grinders extend beyond precision and efficiency. The integration of adaptive control and remote monitoring systems allows operators to keep track of the machine's performance in real time. These systems can identify potential issues before they lead to significant downtime, ensuring that production runs smoothly. The fault diagnosis system, another key feature, helps operators quickly identify the root cause of any problems, minimizing downtime and improving overall equipment reliability.

Additionally, the automation capabilities of CNC compound grinders significantly improve production safety. By reducing the need for manual intervention, the risk of operator injury is greatly minimized. Automated systems also enhance production consistency, ensuring that every part meets the required specifications without deviation.

Conclusion

CNC compound grinders have revolutionized the manufacturing process by offering a full-process automation solution that covers both rough and fine grinding. With their advanced CNC systems, automated handling equipment, and adaptive control capabilities, these machines provide manufacturers with a powerful tool for achieving high precision and efficiency. KULA, as a leader in this field, has the expertise to deliver a comprehensive automation solution for CNC compound grinders, meeting the diverse needs of modern manufacturing environments.
