Features
Machine Introduction

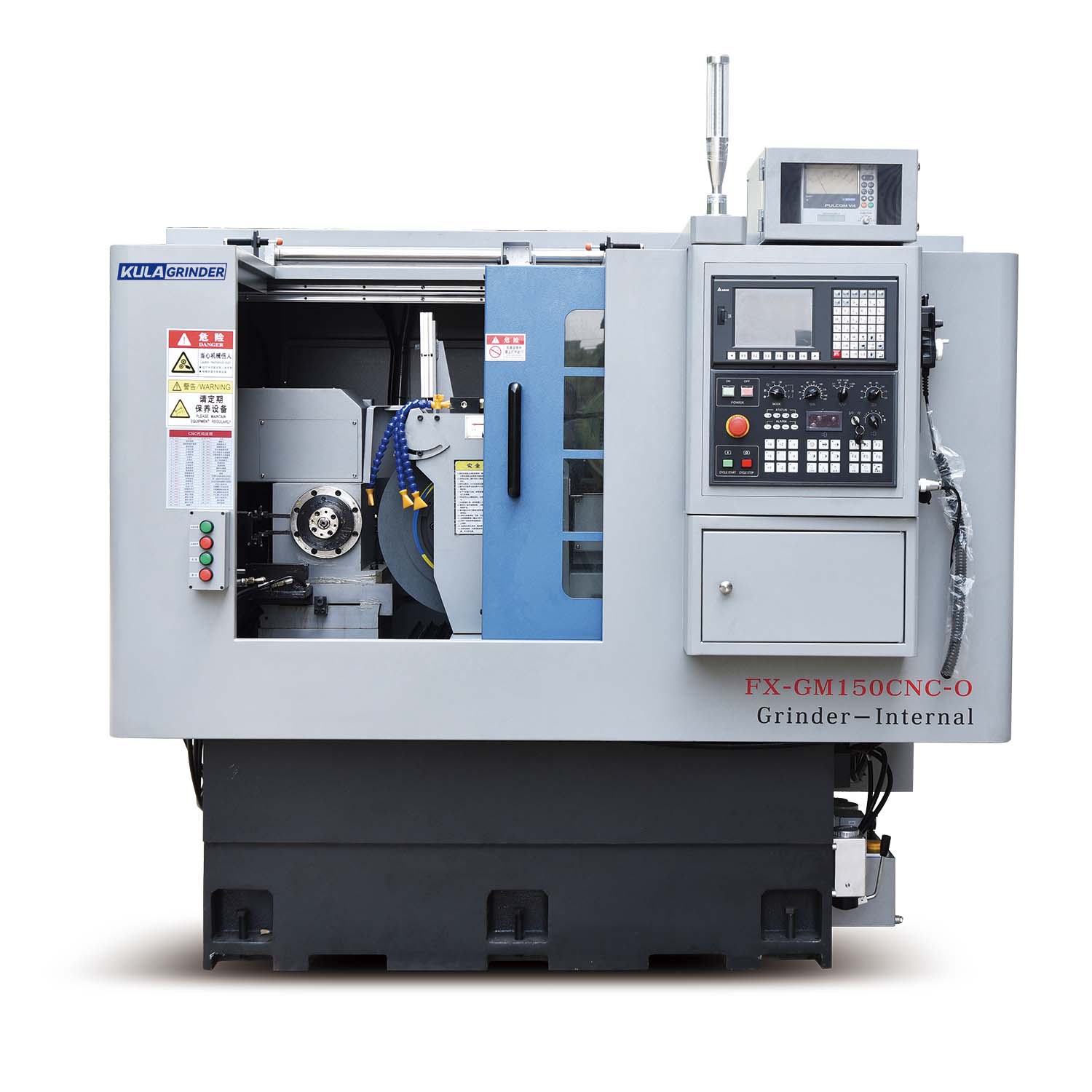

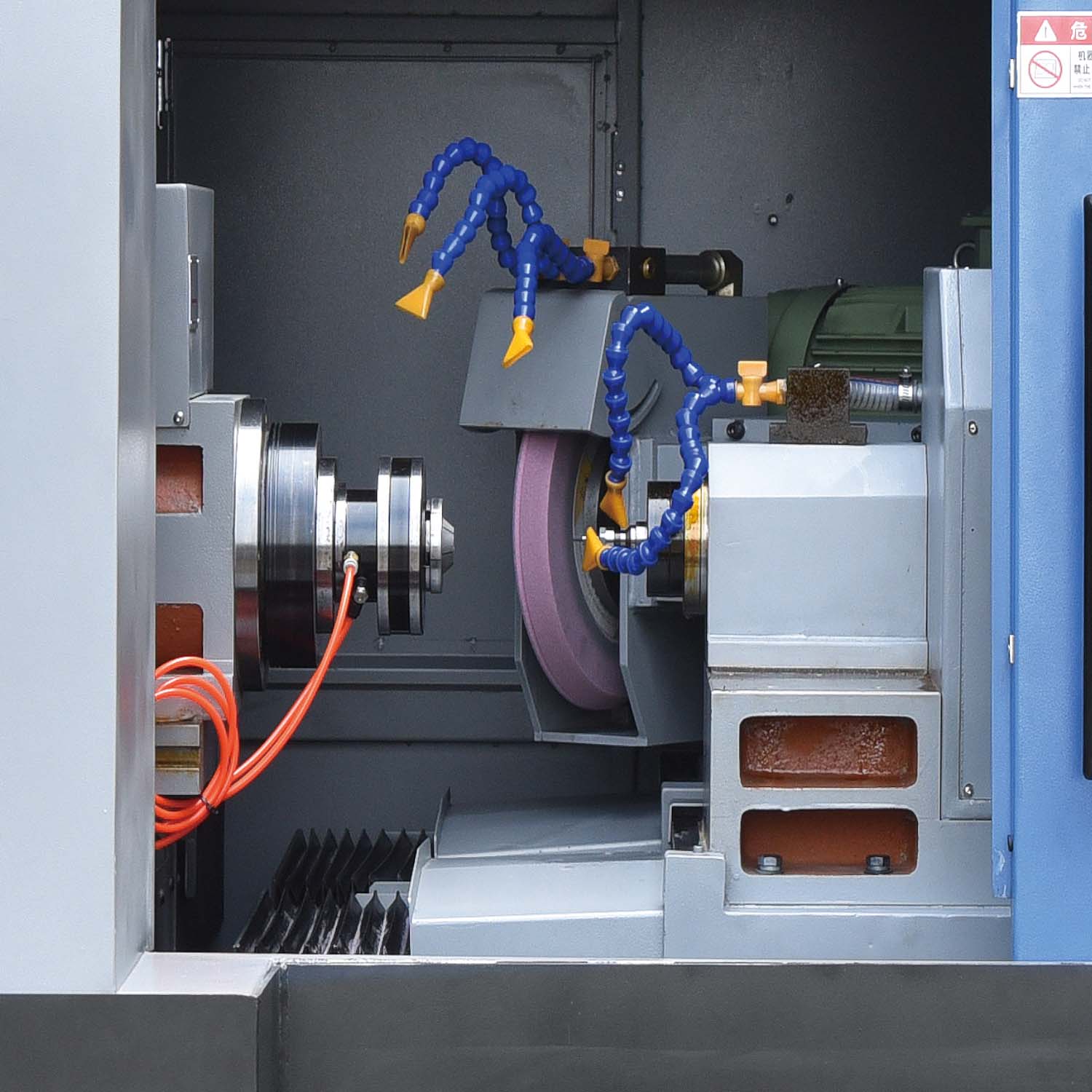

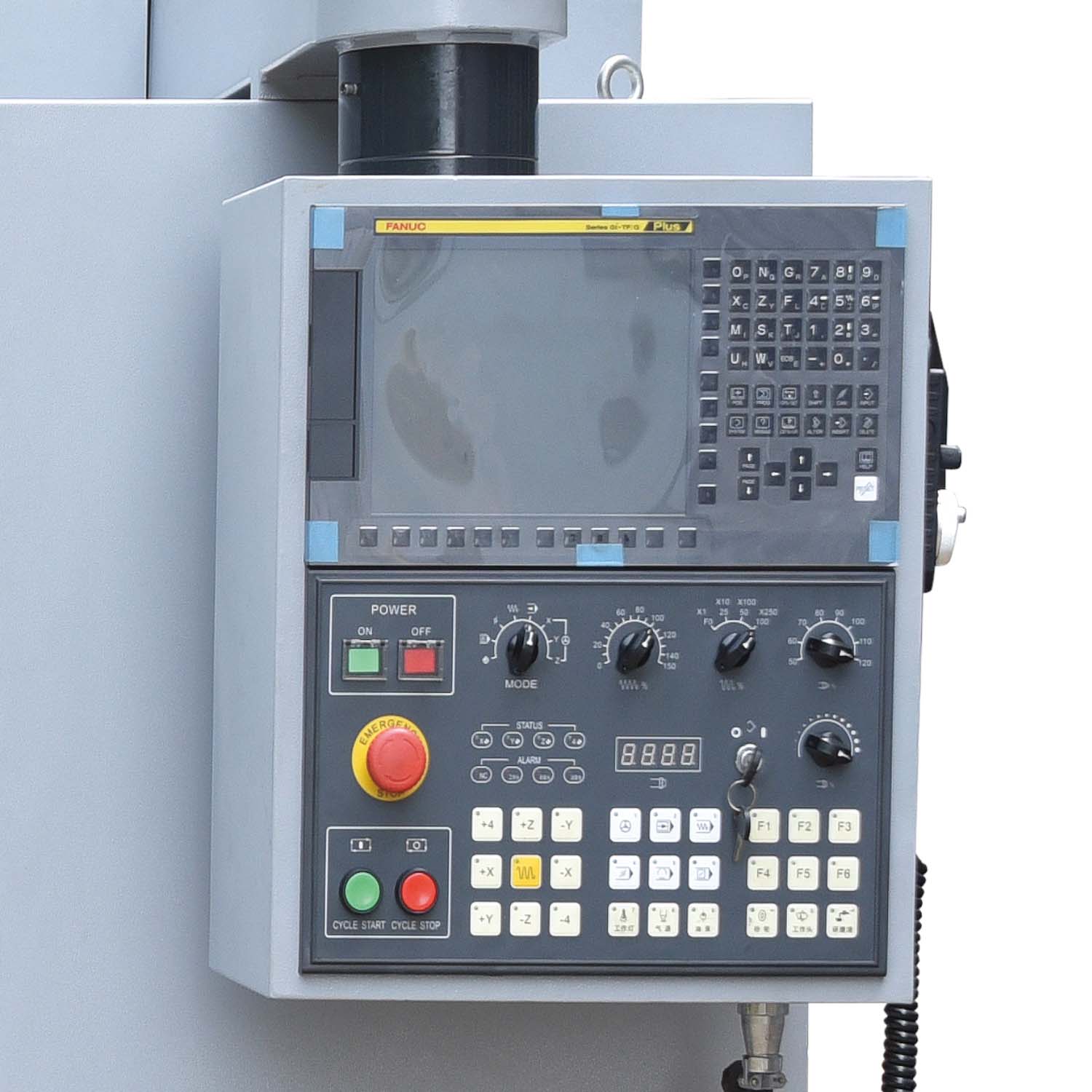

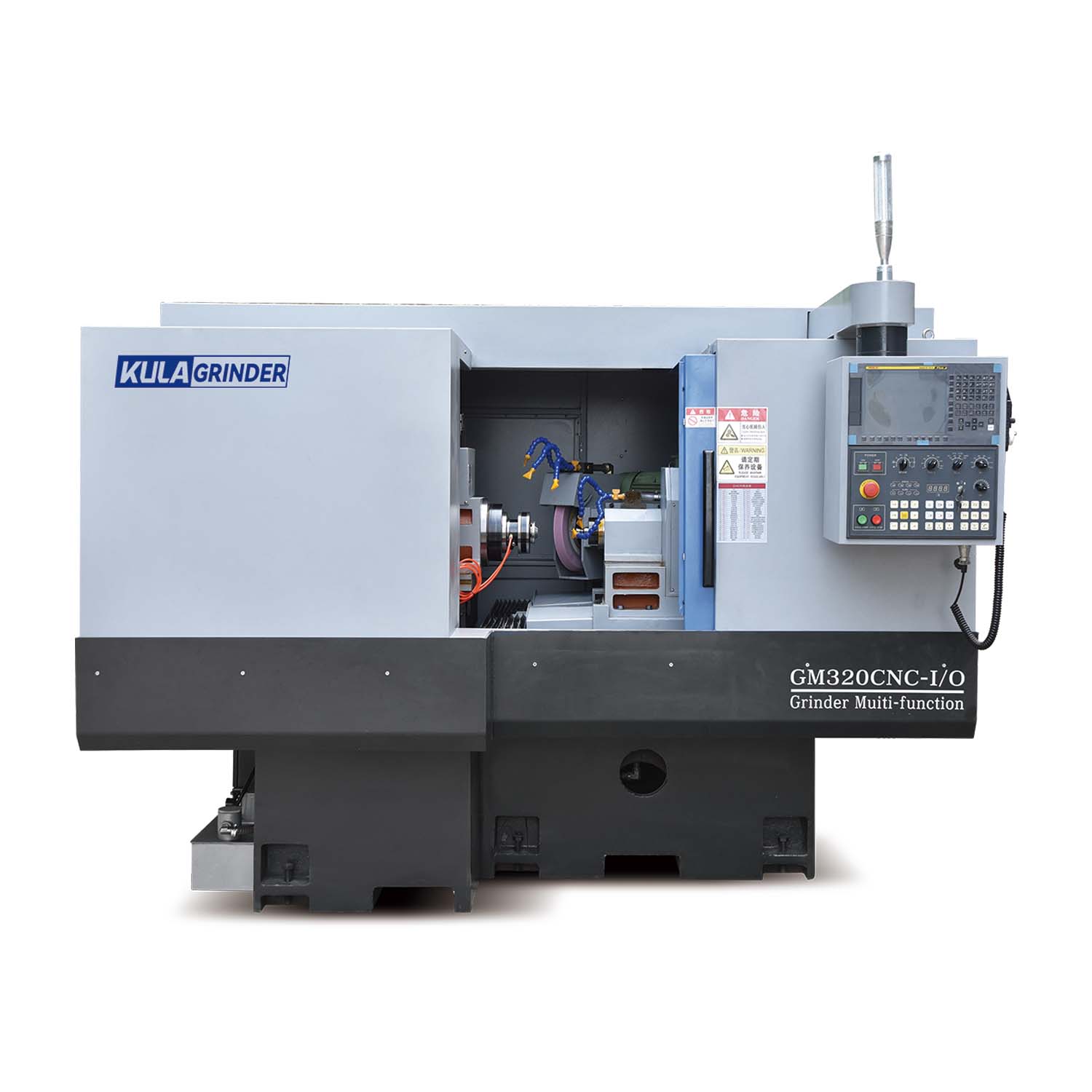

A powerful and versatile compound grinding machine customized to meet the processing requirements of small special workpieces. There are various design options for the internal and external diameter mechanical spindle and electric spindle. Fixtures such as three-jaw chucks, collets, and diaphragms can be designed and installed to meet various special workpieces. With one clamping of the workpiece, multiple grinding surfaces such as the internal and external diameters, end faces, and tapers can be machined. It can be equipped with various automatic measuring devices to ensure the high precision requirements of workpiece processing.
Technical Specifications

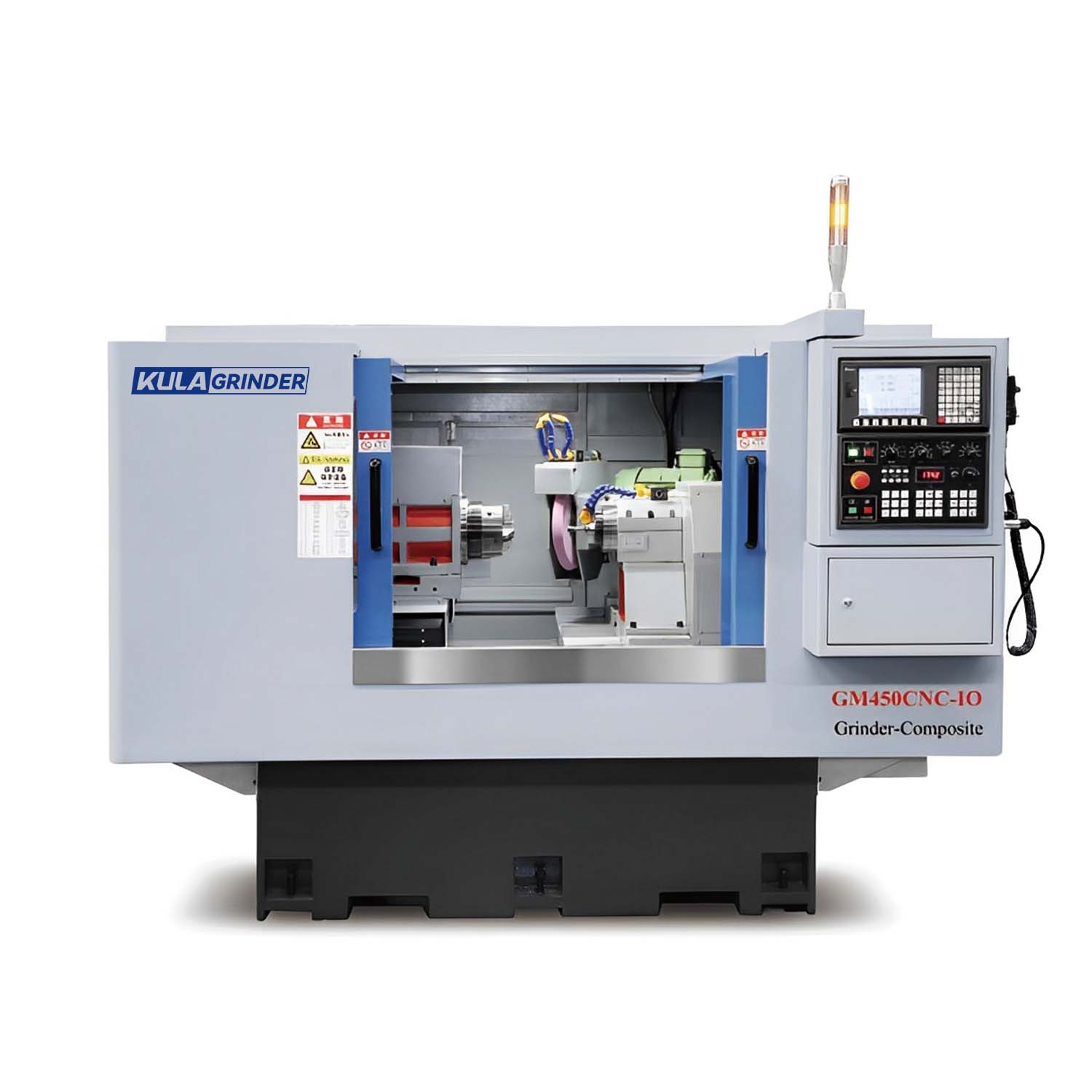

Model | Unit | GM100CNC-I/O/II | GM450CNC-IO/II |
Max. swing diameter of worktable | mm | 200 | 500 |
Grinding bore diameter range | mm | φ6-100 | φ6-150 |
Grinding outside diameter range | mm | φ6-100(External diameter) | 150 |
Grinding depth | mm | 100(Aspect ratio ＜ 3) | 120+400 |
Max. travel of worktable | mm | 270 | φ405×50×φ127(External diameter) |
Max. workpiece weight | kg | 40 | 50 |
Note | / | Customized small parts compound model | Bore spindle selection according to workpiece |
