Machine Introduction

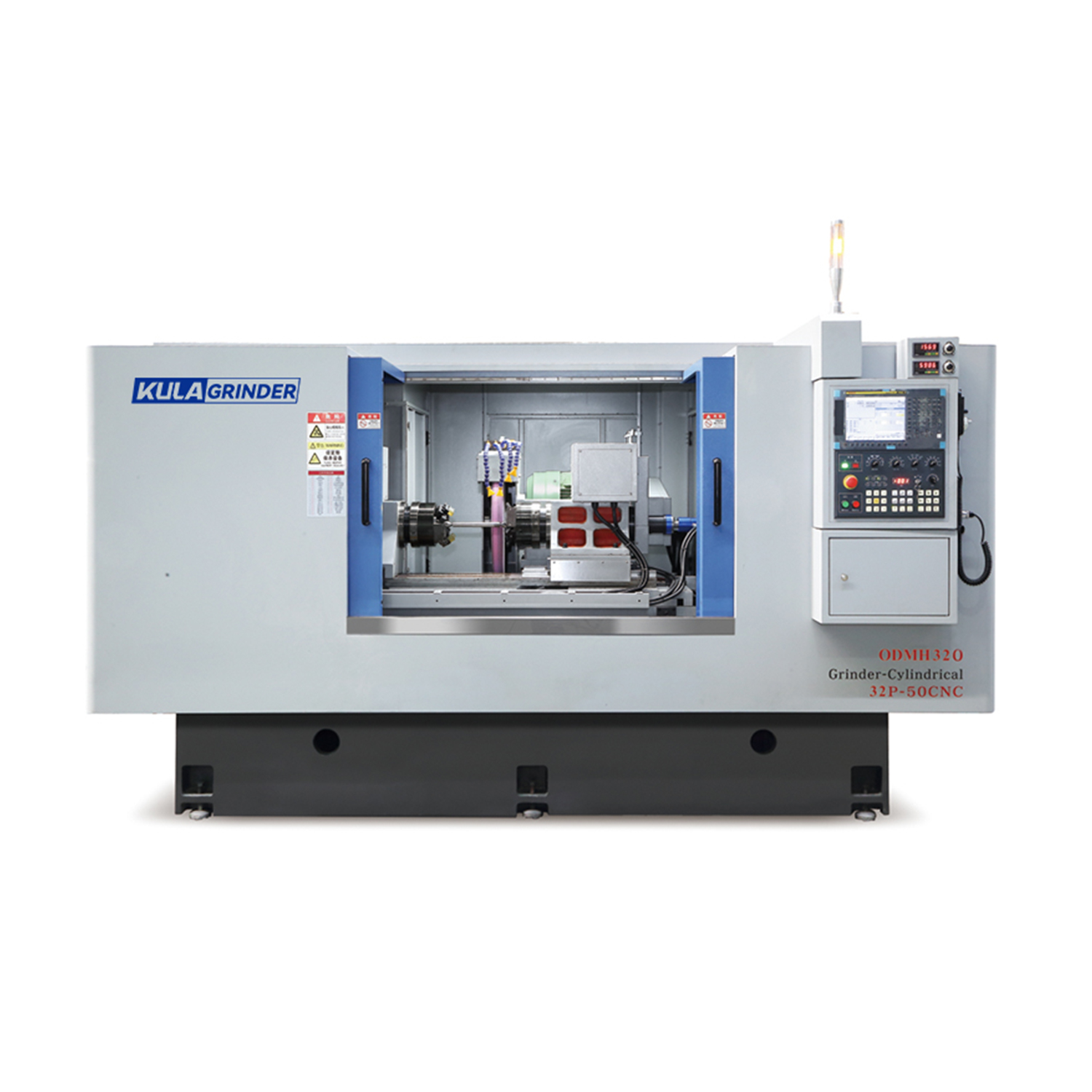

The ODMH series of cylindrical grinder is designed to meet the needs of high-precision mass production. The hydrostatic high-speed spindle with CBN grinding wheel is several times more efficient than traditional equipment.

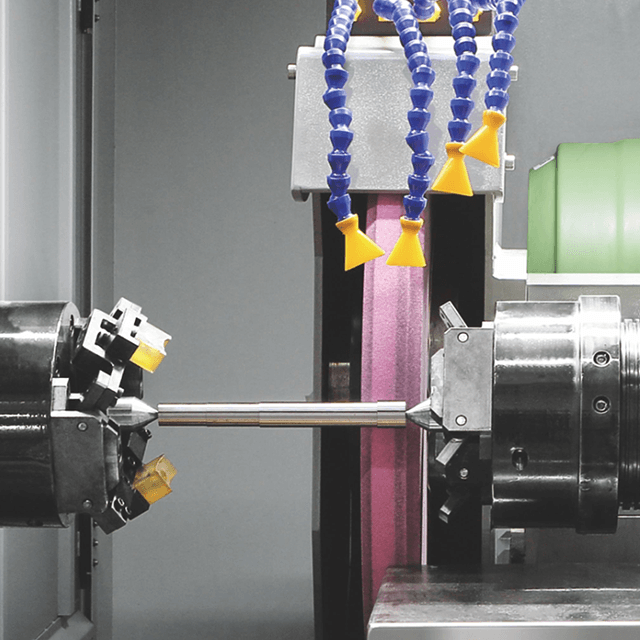

The hydrostatic high-speed spindle with CBN grinding wheel (60/80/100m)/X-axis linear motor/double-drive tailstock. The grinder's X-axis linear motor with closed-loop grating can achieve fast and accurate feeding. The double-drive tailstock design, which does not require a jaw or chuck, completes all machining of the workpiece at once.
Technical Specifications
Model | Unit | ODMH32P-50CNC |
Max. swing diameter of worktable | mm | 320 |
Max. distance between centers | mm | Φ500/1000/1500/2000 |
Grinding wheel dimensions (outside diameter x thickness x inside diameter) | mm | Φ510×50×Φ203.2 |
Grinding wheel speed | / | Hydrostatic high-speed spindle with CBN grinding wheel (100 m/s) |
