Machine Introduction

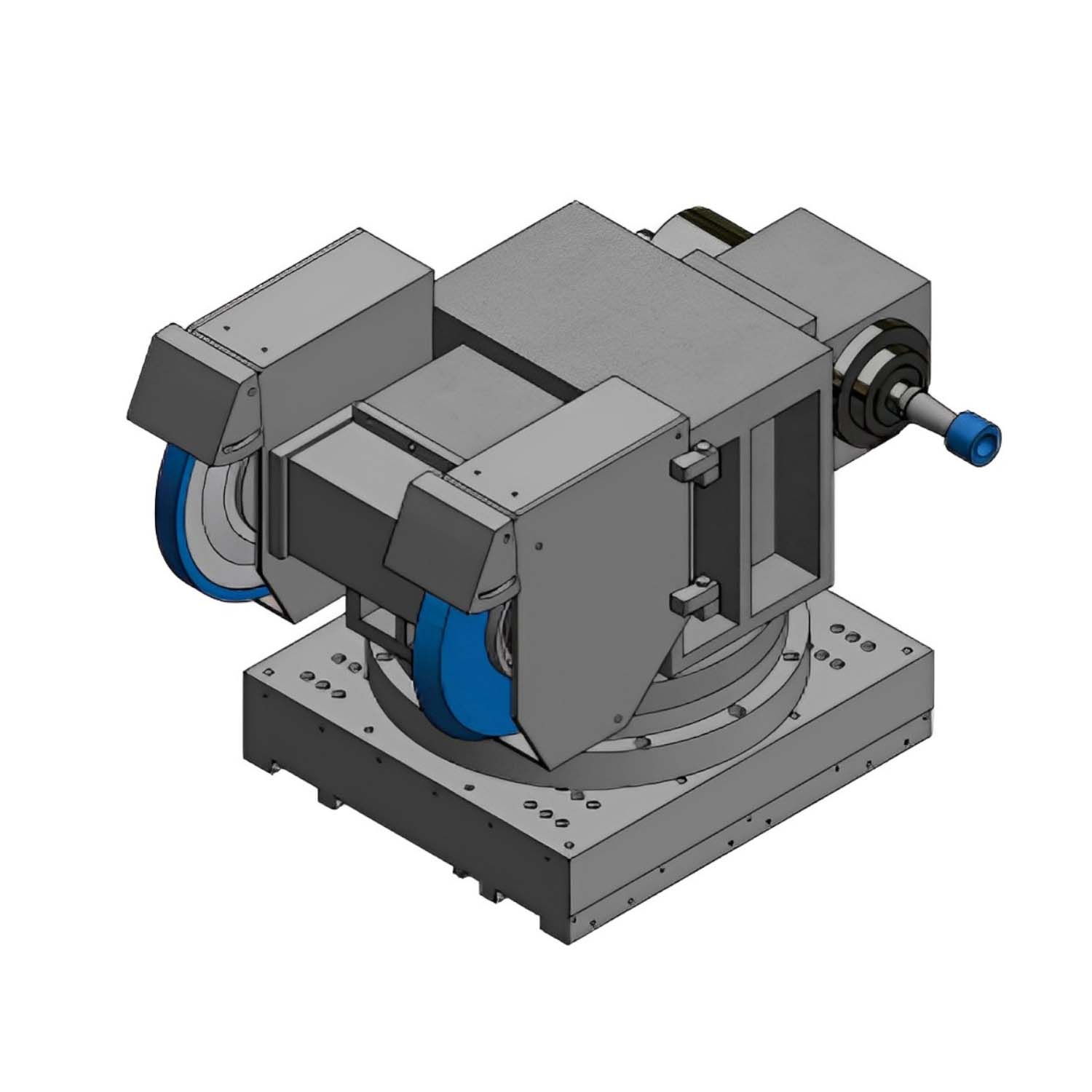

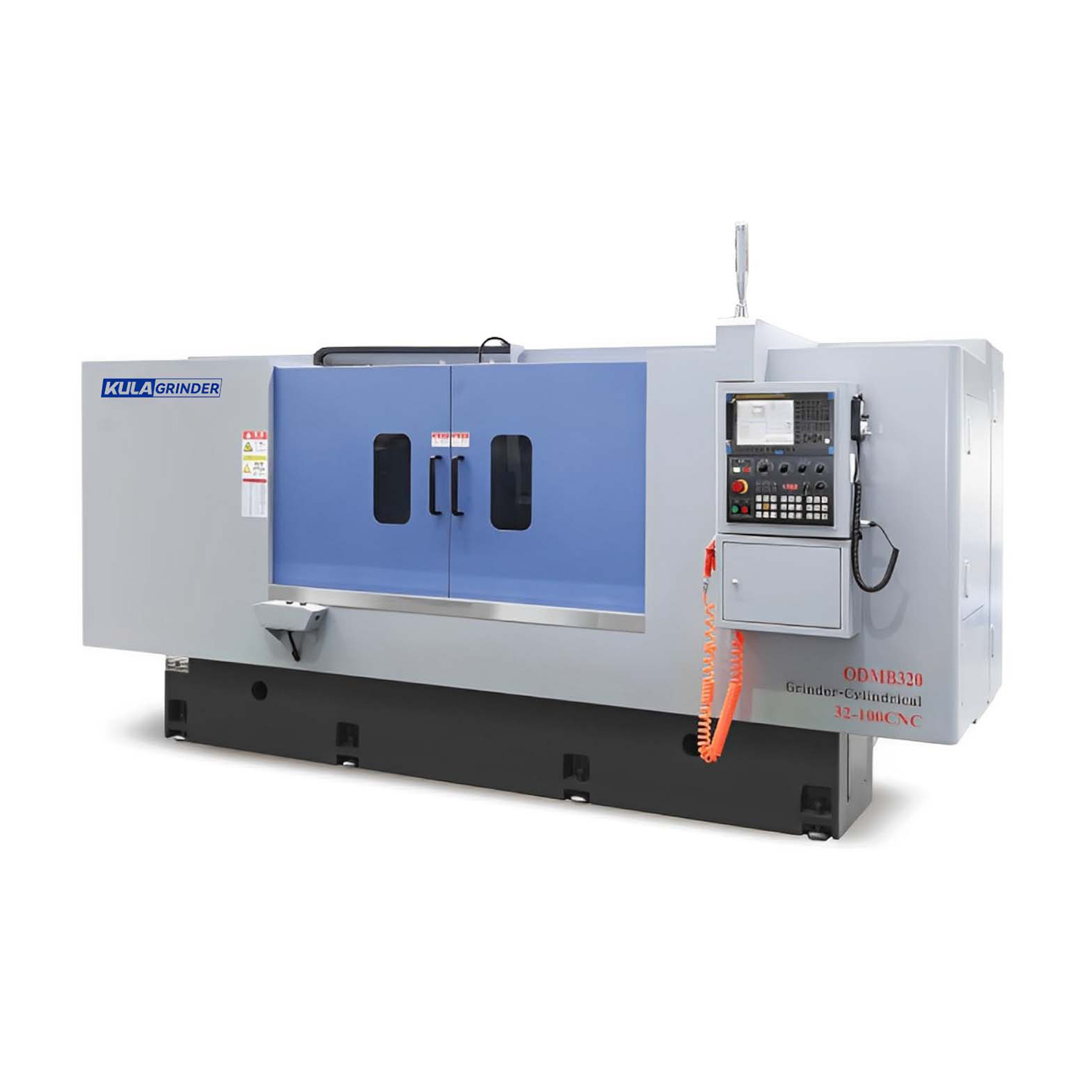

The CNC universal grinding machine ODMB Series is designed to handle a wide range of complex grinding processes. The wheelhead is directly driven for fast rotation with high positioning accuracy. The grinding wheels are modularly mounted and can be freely combined according to the machining process for internal and external spindles. Wheel B-axis IO / OO (I-internal spindle/O-external spindle).
Technical Specifications
Model | Unit | ODMB32-100CNC |
Max. swing diameter of work table | mm | 320 |
Max. distance between centers | mm | 1000 |
Size of external grinding wheel (external diameter x thickness x internal diameter) | mm | Φ510×50×Φ203.2 |
Grinding wheel combination | / | IO/OO/II |
Max. workpiece weight | kg | 150 |
