Features
Machine Introduction

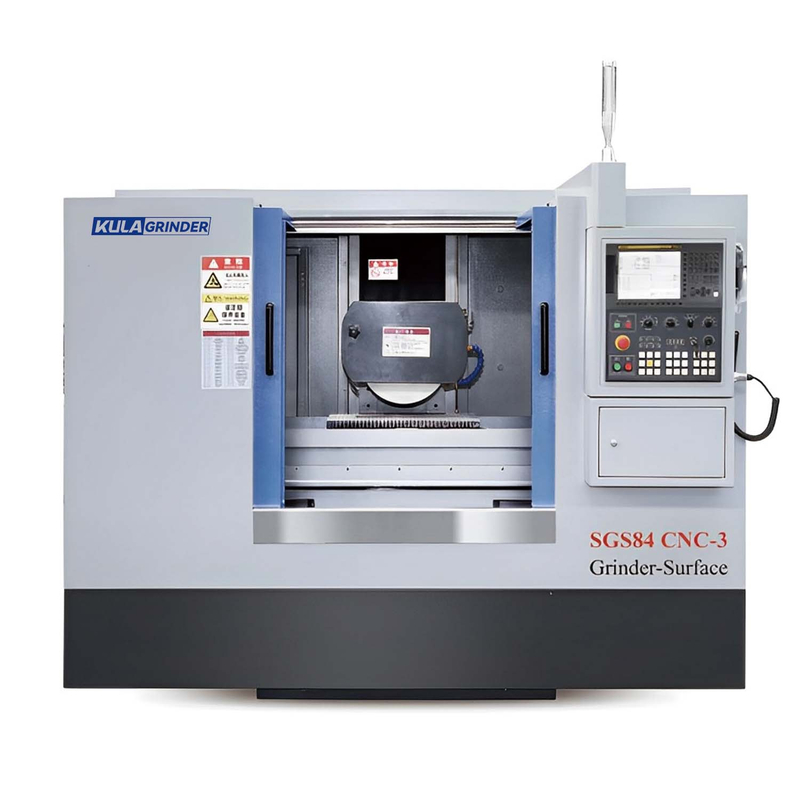

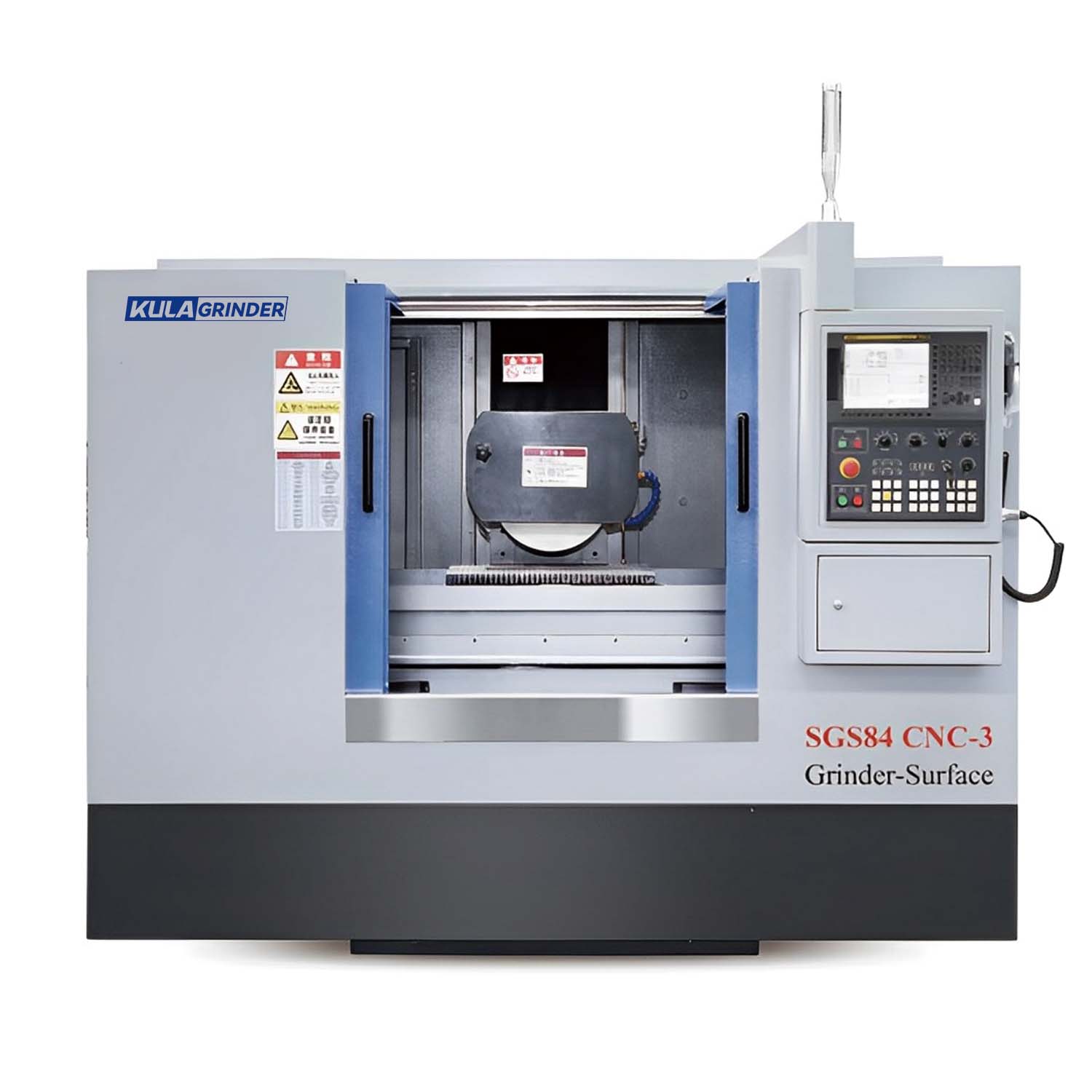

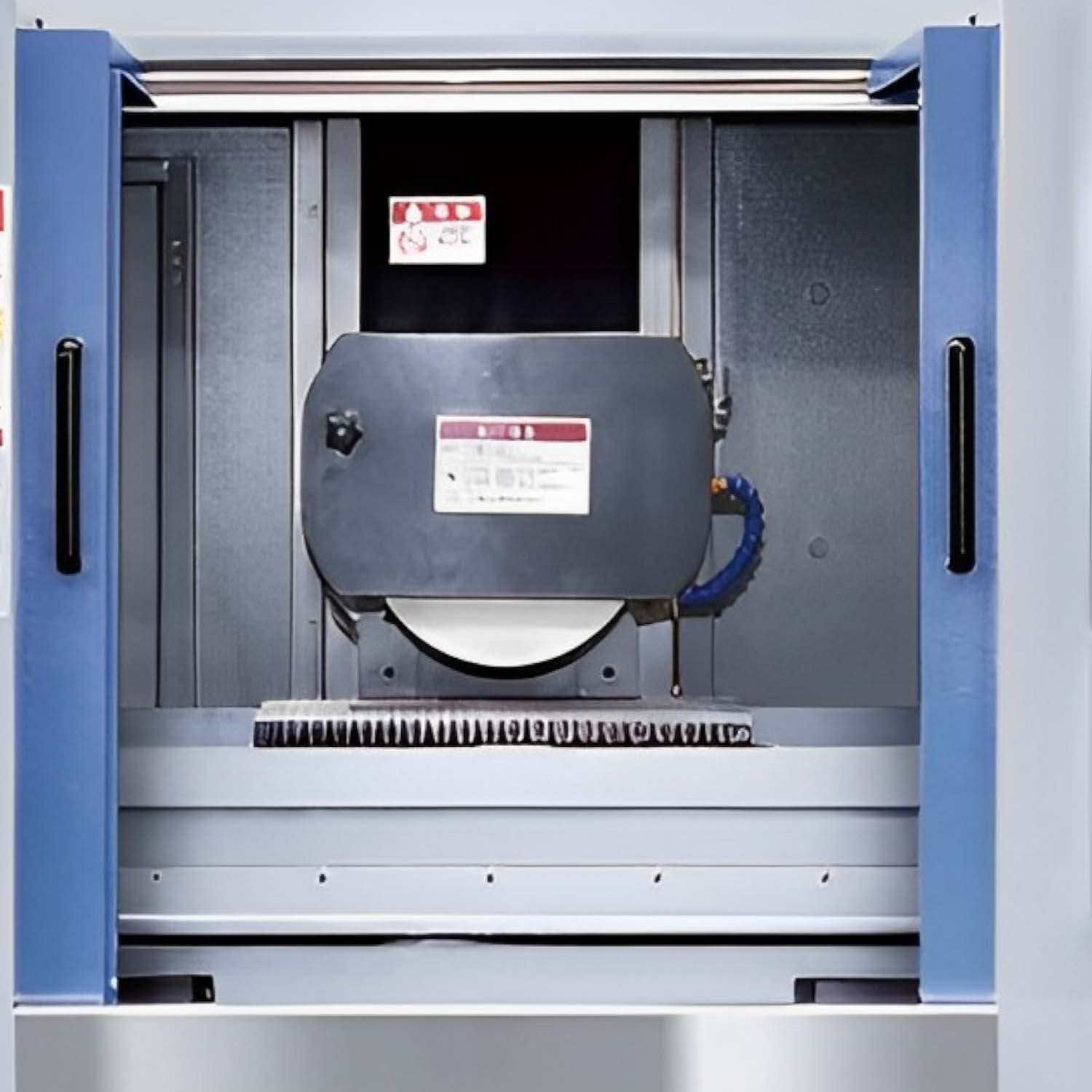

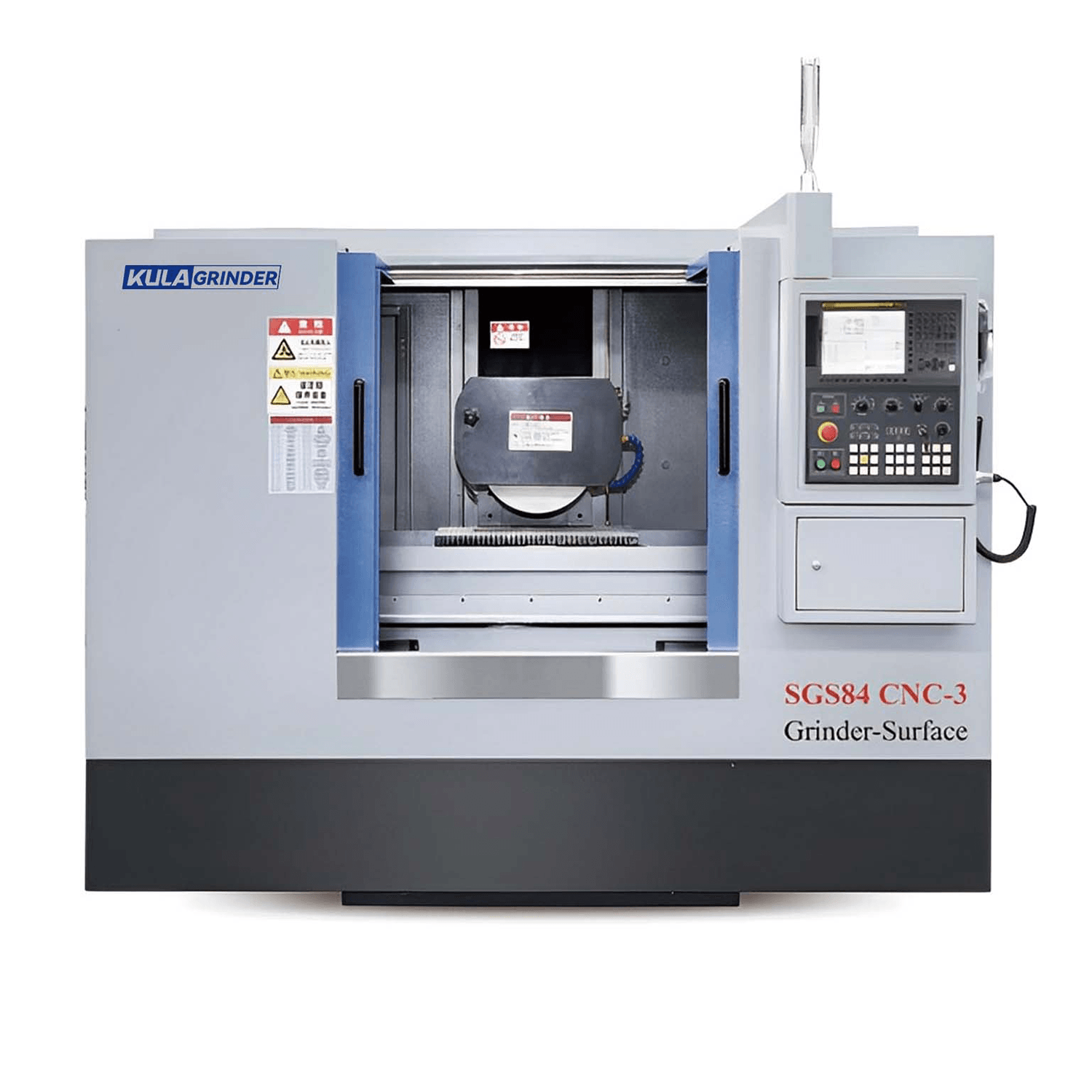

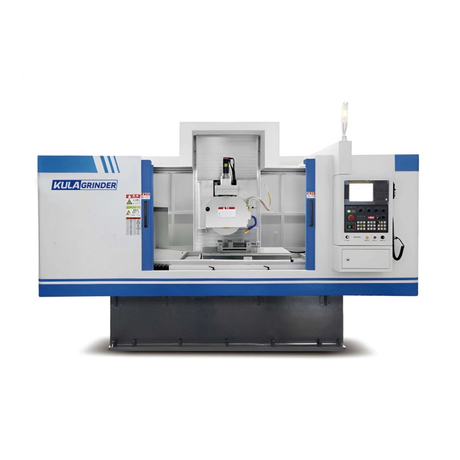

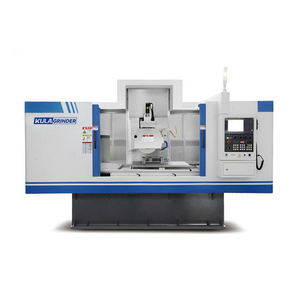

The Surface Grinder SGS saddle series is a small, economical, high-precision surface grinding machine with a saddle-type structure that takes up little space. The CNC surface grinding machine offers a variety of grinding possibilities, and can meet the grinding needs of grooves, pitches, forming, indexing, etc. The three-axis track is a plastic-coated hard track that has been hand scraped for high precision and durability.
Optional A1 upper and lower axis servo automatic feed.
CNC-1 upper and lower linear guide rails/one axis direct-drive servo.
CNC-2 upper and lower linear guide rails, double V-shaped front and rear hard rails/upper and lower front and rear servos, automatic left and right hydraulic pressure.
CNC-3 three-axis linear guide rails/three-axis servo automatic.
Technical Specifications
| ITEM | SGS63CNC-2 | SGS63CNC-3 | SGS84CNC-2 | SGS84CNC-3 | |

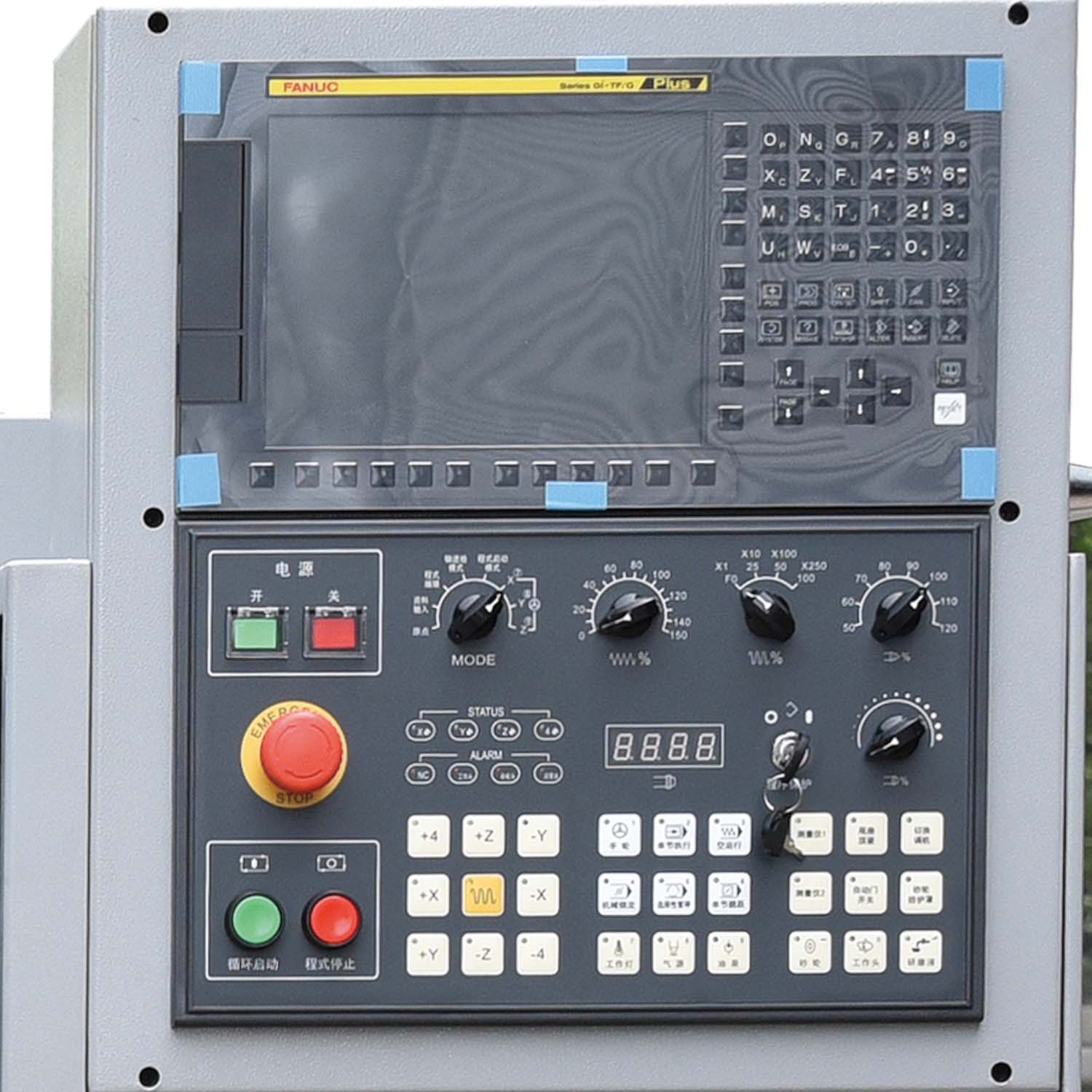

| CNC | Operating system | FANUC/Other options | FANUC/Other options | FANUC/Other options | FANUC/Other options |
| Scope of processing | Maximum Stroke (W×L) | 340 x 700 mm | 340 x 700 mm | 460 x 900 mm | 460 x 900 mm |
| Distance from worktop to center of spindle | 490mm | 490mm | 600mm | 600mm | |
| Countertop area | 300×600mm | 300×600mm | 400×800mm | 400×800mm | |
| Workbench | Table Tracks | Double V Hard Track | Double V Hard Track | Double V Hard Track | Double V Hard Track |
| Structure | Table T-slot (mm×n) | 14x1 | 14x1 | 14x3 | 14x3 |
| Machining precision and efficiency | Table left/right speed (60HZ) | 1-25 (0.3-25) m/min | 1-25 (0.3-25) m/min | 1-25 (0.3-25) m/min | 1-25 (0.3-25) m/min |
| Machining accuracy (flatness of machined base surface) | 0.005mm | 0.005mm | 0.005mm | 0.005mm | |
| Surface roughness | Ra≤0.25Hm | Ra≤0.25Hm | Ra≤0.25Hm | Ra≤0.25Hm | |
| Handwheels | Back and forth movement during inching | 0.1-10mm/feed | 0.1-10mm/feed | 0.1-10mm/feed | 0.1-10mm/feed |
| A turn of the front and rear handwheels | 4mm | 4mm | 4mm | 4mm | |
| Front and rear handwheels in one scale | 0.02mm | 0.02mm | 0.02mm | 0.02mm | |
| The upper hand wheel turns. | 1mm | 1mm | 1mm | 1mm | |
| Upper handwheel one scale | 0.005mm | 0.005mm | 0.005mm | 0.005mm | |
| Grinding wheel spindles and Hydraulic Horsepower | Grinding wheel dimensions (outer diameter×W×inner diameter) | 355×38×127mm | 355×38×127mm | 355×38×127mm | 355×38×127mm |
| Spindle Horsepower(kw) | 3.7kw | 3.7kw | 3.75kw | 3.75kw | |
| Hydraulic horsepower(kw) | 1.5kw | 1.5kw | 3.75kw | 3.75kw | |
| Grinding wheel speed 50/60HZ | 1500/1800r.p.m | 1500/1800r.p.m | 1500/1800r.p.m | 1500/1800r.p.m | |
| Net weight | 1900kg | 1900kg | 2800kg | 2800kg | |
| Gross weight of machine | 2300kg | 2300kg | 3400kg | 3400kg | |
| Carton size (L×W×H) | 2.3×1.6×1.97m | 2.3×1.9×2.1m | 2.3×1.9×2.1m | 2.3×1.9×2.1m | |
ITEM | SGS510 | SGS615 | SGS620 | SGS720 | |
CNC | Operating system | 560×1150 mm | 660×1650 mm | 660×2350 mm | 760×2350 mm |
Scope of processing | Maximum Stroke (W×L) | 700mm | 700mm | 700mm | 700mm |
Distance from worktop to center of spindle | 500×1000mm | 600×1500mm | 600×2000mm | 700×2000mm | |
Countertop area | Double V Hard Track | Double V Hard Track | Double V Hard Track | workbench rail | |
Workbench | Table Tracks | 14x3 | 14x3 | 14x3 | 14x3 |
| Structure | Table T-slot | 1-25(0.3-25) m/min | 1-25(0.3-25)m/min | 1-25(0.3-25)m/min | 1-25(0.3-25)m/min |
Machining precision and efficiency | Table left/right speed | 0.005mm | 0.005mm | 0.005mm | 0.005mm |
Machining accuracy (flatness of machined base surface) | Ra≤0.25Hm | Ra≤0.25Hm | Ra≤0.25Hm | Ra≤0.25Hm | |
Surface roughness | 0.1-10mm/feed | 0.1-10mm/feed | 0.1-10mm/feed | 0.1-10mm/feed | |
Handwheels | Back and forth movement during inching | 5mm | 5mm | 5mm | 5mm |
A turn of the front and rear handwheels | 0.02mm | 0.02mm | 0.02mm | 0.02mm | |
Front and rear handwheels in one scale | 0.025mm | 0.025mm | 0.025mm | 0.025mm | |
The upper hand wheel turns. | 0.002mm | 0.002mm | 0.002mm | 0.002mm | |
Upper handwheel one scale | 355×50× 127mm | 355×50×127mm | 355×50×127mm | 355X50×127mm | |
Grinding wheel spindles and | Grinding wheel dimensions (outer diameter×W×inner diameter) | ||||
Spindle Horsepower(kw) | 7.5kw | 7.5kw | 7.5kw | 7.5kw | |
Hydraulic horsepower(kw) | 3.75kw | 3.75kw | 3.75kw | 3.75kw | |
Grinding wheel speed | 1500/1800r.p m | 1500/1800r.p.m | 1500/1800r.p.m | 1500/1800r.p.m | |
Net weight | 5800kg | 7400kg | 8900kg | 9700kg | |
Gross weight of machine | 6900kg | 9000kg | 12000kg | 12500kg | |
Carton size (L×W×H) | 3.4×2.2× 2.6m | 5.3×2.2×2.6m | 6.4×2.2×2.6m | 6.4×2.2×2.6m | |
