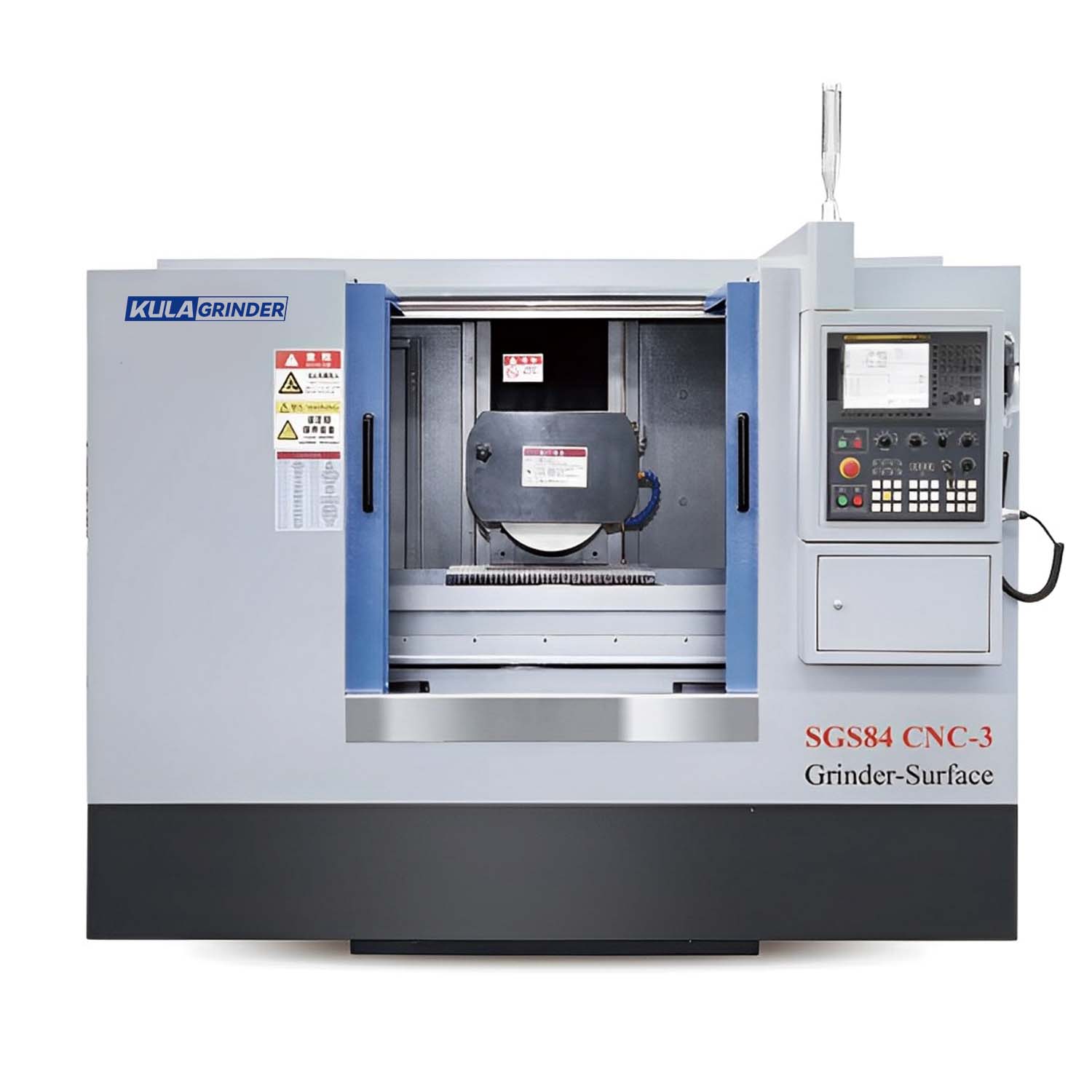

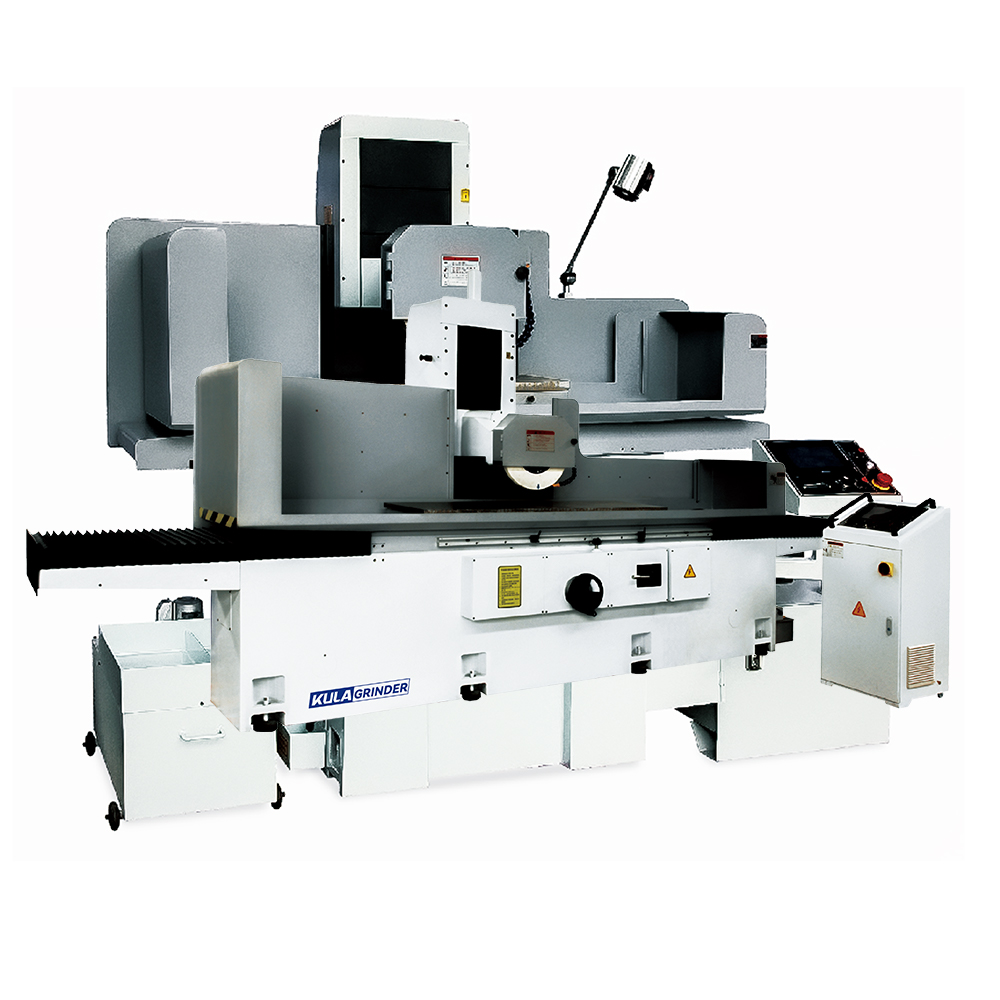

Clamping Methods for CNC Surface Grinders: Ensuring Precision And Efficiency

In the world of precision manufacturing, CNC surface grinders are indispensable for achieving superior surface finishes and tight tolerances. However, accurate clamping of workpieces is crucial for maintaining machining precision. Improper clamping can lead to poor surface roughness, reduced machining accuracy, and even unnecessary wear and tear on the machine. In this article, we explore key clamping methods used in CNC surface grinders and highlight best practices for ensuring high-quality results.

Spindle Precision and Maintenance

One of the primary factors affecting the performance of a CNC surface grinder is the spindle’s radial clearance. If the clearance is too large, the spindle will experience excessive movement, leading to poor surface roughness and compromised accuracy. Additionally, the grinding machine may suffer unnecessary wear, reducing its service life and hindering production efficiency. Typically, the radial clearance for precision CNC surface grinders is controlled within 0.003 mm when the spindle is cold. During operation, when the machine heats up, the radial runout is kept below 0.005 mm to maintain accuracy.

In cases where the spindle’s radial runout exceeds acceptable limits, professional maintenance personnel should adjust the clearance between the spindle and its bearings. Most of the time, the issue stems from the radial clearance of the front bearing. To rectify this, the front bearing’s clearance must be adjusted. For grinders with rolling bearings, loosening the front nut clamping screw and turning the front nut appropriately can allow axial movement of the bearing’s inner ring. After a test run, if the spindle operates smoothly at high speeds and shows no signs of resistance, the clamping screw can be tightened to complete the adjustment.

Clamping Methods for Thin Workpieces

Thin workpieces pose unique challenges in CNC surface grinding. To ensure the required precision, various clamping techniques can be employed to enhance the rigidity and stability of these workpieces during grinding.

1.Epoxy Resin Bonding Method

To enhance the rigidity of thin workpieces, one effective method is bonding the workpiece to a flat plate using epoxy resin. The plate, along with the bonded workpiece, is then placed on a magnetic chuck. After grinding one side, the workpiece is removed, flipped, and the opposite side is ground. The fluid nature of epoxy resin before hardening allows it to fill gaps between the workpiece and the flat plate, ensuring the workpiece remains rigid during grinding. Alternatively, thick grease can be used in place of epoxy to achieve similar results.

2.Mechanical Clamping Method

Mechanical clamping with flat-nose pliers is another common approach. By securing the thin workpiece on the magnetic workbench with flat-nose pliers, gradual feed reduction can be employed to grind one surface. The workpiece is then flipped and the other surface is ground, ensuring both planes meet the required flatness.

3.Elastic Shim Clamping

When grinding thin workpieces, an elastic clamping mechanism can also be used. A thin rubber layer (approximately 0.5 mm thick) is placed between the workpiece and the magnetic worktable. The rubber compresses slightly under magnetic force, allowing the workpiece to be held in a free state without deformation. This method is particularly effective for preserving flatness during multiple grinding passes.

4.Vacuum Clamping Method

In the vacuum clamping method, atmospheric pressure is used to clamp the thin workpiece. A rubber seal is placed between the workpiece and the clamping body, forming a sealed cavity. A vacuum pump extracts air from the cavity, securing the workpiece in place. This method allows for peripheral grinding and ensures both sides of the workpiece can be ground to the desired precision.

Conclusion

Proper clamping methods are essential for maintaining the accuracy and efficiency of CNC surface grinders, particularly when handling thin or delicate workpieces. Techniques such as epoxy resin bonding, mechanical clamping, elastic shim clamping, and vacuum clamping offer flexible solutions for various machining needs. By addressing spindle maintenance and adopting appropriate clamping methods, manufacturers can ensure high-quality results and prolong the service life of their CNC surface grinders.
