Ever wondered how industries achieve such precise metal finishes? Enter the world of OD grinding machines. These CNC cylindrical grinders are pivotal in modern manufacturing, delivering unmatched precision and performance. In this post, you'll learn about OD grinding machines' role in achieving high-quality finishes and their importance in industries like automotive and aerospace.
OD grinding, or Outside Diameter grinding, is a precise machining process used to shape and finish the external surface of cylindrical parts. It removes small amounts of material from the outside of a workpiece to achieve exact dimensions, smooth finishes, and tight tolerances. This process is essential in industries where precision and surface quality are critical, such as automotive, aerospace, and medical manufacturing.
OD grinding focuses on the outer surface of a cylindrical object. Imagine a metal shaft that must fit perfectly into a bearing housing. The shaft's diameter must be exact, with a smooth surface to reduce friction and wear. OD grinding achieves this by using an abrasive wheel that spins at high speed, removing tiny layers of material from the workpiece as it rotates.
This grinding method is ideal for parts that require:
● High dimensional accuracy (often within microns)
● Superior surface finishes (smooth, consistent surfaces)
● Machining of hard or heat-treated materials that are difficult to cut by other means

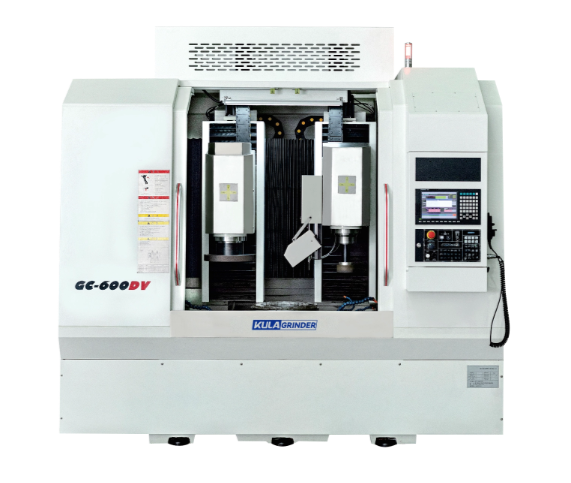

An OD grinding machine consists of several key components working together to deliver precision:
1. Workpiece Holding: The cylindrical part is securely held between centers or clamped in a chuck. This ensures stability and proper rotation during grinding.
2. Rotating Workpiece: The workpiece spins steadily at a controlled speed. This rotation exposes the entire outer surface to the grinding wheel.
3. Grinding Wheel: A high-speed abrasive wheel spins independently. It moves in controlled passes along the length or around the diameter of the workpiece, removing material layer by layer.
4. CNC Control System: Modern OD grinders use computer numerical control (CNC) to precisely manage the wheel’s feed rate, position, and speed. This automation ensures consistent accuracy and repeatability.
5. Coolant System: Grinding generates heat due to friction. Coolant is applied continuously to prevent overheating, protect the workpiece, and extend the grinding wheel’s life.
The grinding wheel's movement can be:
● Traverse Grinding: The wheel moves along the length of the workpiece, grinding the entire surface.
● Plunge Grinding: The wheel moves directly into the workpiece to grind a specific diameter or feature.
The combination of these movements and controlled parameters allows for complex shapes, tapers, and shoulders to be ground with high precision.
Example: In automotive manufacturing, OD grinding is used to finish crankshafts and camshafts, where exact diameters and smooth surfaces are vital for engine performance.
Note: Proper setup and programming of the CNC system are crucial for OD grinding machines to achieve the desired precision and surface quality efficiently.
When it comes to OD grinding, two main types of machines stand out: External Cylindrical Grinding Machines and Universal Cylindrical Grinding Machines. Each serves a distinct purpose and offers unique advantages depending on your manufacturing needs.
These machines focus entirely on grinding the outside diameter of cylindrical workpieces. They hold the part securely—often between centers or in a chuck—and rotate it while a high-speed abrasive wheel removes material from the external surface.
Key features include:
● Precision Control: CNC systems guide the grinding wheel, controlling feed rates and wheel speed to achieve tight tolerances, often within microns.
● Surface Finish: They deliver smooth, consistent finishes essential for parts like shafts, pins, and rollers.
● Material Versatility: Can grind hardened metals and exotic alloys that are tough for other machining methods.
● Size Range: Handle small pins up to large shafts weighing hundreds of kilograms.
This type is ideal when you need highly accurate external diameters and fine finishes, common in automotive crankshafts, aerospace components, and hydraulic cylinders.
Universal grinders extend the capabilities of external grinders by adding the ability to grind internal diameters and faces, making them more versatile.
How they differ:
● Swiveling Wheelhead: Allows mounting of a smaller internal grinding wheel. This wheel can enter bores to grind precise internal surfaces.
● Multi-functionality: Can perform external grinding, internal grinding, and sometimes taper grinding in a single setup.
● Complex Profiles: Capable of grinding complex shapes, including tapers, shoulders, and sometimes flats or polygons.
● Setup Flexibility: Often used in job shops or production environments where diverse parts require different grinding operations.
While universal machines add flexibility, they may not match the rigidity or specialized precision of dedicated external grinders for the most demanding tasks. Still, they offer excellent value when your workflow involves both internal and external grinding.
● Use an External Cylindrical Grinder if your work focuses mainly on high-precision external diameters and you need maximum rigidity and accuracy.
● Opt for a Universal Cylindrical Grinder if you require both internal and external grinding capabilities and want to reduce machine count and setup times.
● External Cylindrical Grinder: Finishing hardened steel shafts for automotive transmissions.
● Universal Cylindrical Grinder: Grinding both the bore and outer surface of hydraulic valve bodies in one setup.
OD grinding machines play a crucial role across multiple industries where precision and surface quality are non-negotiable. Their ability to deliver tight tolerances and fine finishes on cylindrical parts makes them indispensable in automotive, aerospace, and medical device manufacturing.
In automotive manufacturing, OD grinding machines help produce components that must withstand high stress and operate smoothly. Parts like crankshafts, camshafts, transmission shafts, and pistons require exact outside diameters and flawless finishes to ensure engine efficiency and longevity. OD grinding achieves micron-level accuracy, reducing friction and wear. For example, a crankshaft must fit precisely within bearings to avoid excessive vibration or failure. The grinding process also handles hardened steel parts that turning or milling cannot finish effectively. This precision improves fuel efficiency, reduces emissions, and extends engine life.
The aerospace sector demands extreme precision and reliability due to safety and performance requirements. OD grinding machines shape turbine shafts, landing gear components, and other critical cylindrical parts. These components often use exotic alloys or heat-treated materials that are difficult to machine otherwise. OD grinding ensures dimensional accuracy and superb surface finishes, which are vital for reducing stress concentrations and fatigue failure in flight conditions. Additionally, the process supports complex profiles and tapers needed for aerodynamic or mechanical functions. The consistent quality helps aerospace manufacturers meet stringent certification standards.
Medical devices require exceptional accuracy and surface quality to function safely inside the human body. OD grinding machines are used to finish orthopedic implants, surgical instruments, and precision medical tubing. For instance, hip and knee implants must have smooth, perfectly round surfaces to fit and move naturally without causing tissue damage. The grinding process also works well on biocompatible materials like titanium and stainless steel, providing the required finish and dimensional control. This precision improves patient outcomes by ensuring device compatibility and durability. Moreover, OD grinding supports small batch production and customization, common in medical device manufacturing.
OD grinding machines bring several critical advantages that make them indispensable in precision manufacturing. They excel in delivering high-quality finishes and tight tolerances on cylindrical parts, essential for industries like automotive, aerospace, and medical devices.
OD grinding machines achieve exceptional dimensional accuracy, often within microns. This precision stems from their controlled grinding wheel movements and CNC automation. The grinding wheel removes tiny layers of material, ensuring the final diameter matches exact specifications. This accuracy is crucial for parts that must fit perfectly into assemblies, such as shafts, bearings, and hydraulic components.
Moreover, the machines maintain geometric precision, including roundness and cylindricity, which affects a part’s performance and longevity. The ability to produce smooth, consistent surface finishes reduces friction and wear during operation, enhancing component life.
These machines can handle a wide range of materials, from soft metals like aluminum to hardened steels and exotic alloys. OD grinding is especially valuable for heat-treated or hardened parts that are difficult to machine by traditional methods like turning or milling.
The versatility extends to complex shapes. OD grinders can produce tapers, shoulders, and other profiles on cylindrical parts, accommodating diverse design requirements. This flexibility reduces the need for multiple machines or setups, saving time and costs.
Automation through CNC controls improves efficiency by reducing manual intervention and setup times. The machines can run unattended for extended periods, producing consistent parts batch after batch. This repeatability is vital in mass production environments where uniform quality is non-negotiable.
Additionally, the use of coolant systems minimizes heat buildup, preventing thermal distortion and prolonging tool life. This leads to fewer rejects and lower maintenance costs.
In automotive manufacturing, OD grinding machines produce crankshafts with micron-level tolerances and superior surface finishes. These precise finishes ensure smooth engine operation and longer component life.
Operating OD grinding machines demands more than just basic knowledge. Skilled operators play a crucial role in ensuring precision and preventing costly mistakes. These machines rely heavily on proper setup, programming, and monitoring to achieve tight tolerances and smooth finishes.
While CNC automation handles much of the grinding process, human expertise remains vital. Operators must understand:
● How to program CNC controls accurately for specific parts.
● Proper wheel selection based on material and desired finish.
● Correct machine setup, including workpiece holding and wheel alignment.
● Monitoring grinding cycles to detect issues like wheel wear or vibration.
● Troubleshooting problems such as dimensional errors or surface defects.
Without skilled operators, even the best machines can produce inconsistent or defective parts. Training and experience help operators optimize grinding parameters, reduce downtime, and extend equipment life.
Grinding generates heat due to friction between the abrasive wheel and workpiece. Excessive heat can cause:
● Thermal expansion of the part, leading to dimensional inaccuracies.
● Surface burns or discoloration, affecting appearance and material properties.
● Micro-cracks or structural changes that weaken the workpiece.
Managing heat is essential to maintain quality. OD grinding machines use coolant systems to continuously cool the grinding zone, flushing away debris and reducing temperature. However, improper coolant application or too aggressive grinding can still cause thermal damage.
Operators must balance grinding speed, feed rate, and depth of cut to minimize heat buildup. Using wheels designed for efficient heat dissipation and maintaining sharp wheel conditions also help prevent thermal issues.
● Regular maintenance of machines and coolant systems is necessary to ensure consistent performance.
● Material properties, such as hardness and thermal conductivity, influence grinding parameters.
● Complex part geometries may require specialized setups or multiple grinding passes.
Example: In aerospace, grinding turbine shafts demands expert operators to avoid thermal damage that could compromise part strength and safety.
OD grinding machines have come a long way from basic manual tools. Today, they are at the heart of precision manufacturing, and their future looks even brighter thanks to ongoing technological innovations and deeper integration with CNC systems.
New advances keep pushing the boundaries of what OD grinders can achieve. Some key innovations include:
● Advanced Abrasive Materials: Grinding wheels now use superabrasive materials like cubic boron nitride (CBN) and diamond. These last longer and cut harder materials more efficiently, improving precision and reducing downtime.
● High-Speed Spindles: Faster spindle speeds allow for smoother finishes and quicker material removal. This minimizes heat buildup and reduces thermal damage risks.
● Adaptive Grinding: Sensors monitor wheel wear and part dimensions in real-time. The machine adapts its grinding parameters on the fly, ensuring consistent quality and reducing scrap rates.
● Smart Coolant Systems: Innovations in coolant delivery optimize cooling and lubrication, preventing overheating and extending wheel life. Some systems recycle coolant to reduce waste.
● Automation and Robotics: Automated loading/unloading and robotic arms make production lines more efficient. This reduces manual labor and increases throughput, especially in high-volume manufacturing.
These innovations boost precision, speed, and reliability, making OD grinding machines smarter and more efficient.
CNC control has revolutionized OD grinding, and future machines will leverage this even more:
● Enhanced CNC Software: Modern CNC systems use sophisticated software that can handle complex part geometries and multi-axis movements. This enables grinding of intricate profiles, tapers, and shoulders with micron-level accuracy.
● Digital Twins and Simulation: CNC programs can be tested virtually using digital twins—exact replicas of the machine and part. This helps optimize grinding paths and parameters before actual machining, saving time and materials.
● IoT and Data Analytics: Connected machines collect data on performance, wear, and errors. Manufacturers use analytics to predict maintenance needs, avoid downtime, and improve process control.
● Multi-Process Integration: CNC systems increasingly combine grinding with other machining steps, such as turning or milling, in a single setup. This reduces handling and improves overall precision.
● User-Friendly Interfaces: Touchscreen controls and intuitive programming make CNC grinding more accessible, reducing the learning curve for operators.
These integrations mean OD grinding machines will be more adaptable, easier to program, and capable of delivering unmatched precision.
OD grinding machines excel in delivering precise finishes and tight tolerances for cylindrical parts across industries like automotive, aerospace, and medical devices. They offer exceptional accuracy, material versatility, and efficiency. With technological advancements and CNC integration, these machines continue to enhance performance. KULA Precision Machinery Co., Ltd. provides high-quality OD grinding machines, ensuring precision and reliability in manufacturing processes. Their products deliver unmatched value, optimizing production and ensuring superior results in demanding applications.
A: A CNC Cylindrical Grinder is a machine tool used to shape and finish the external surface of cylindrical parts with high precision.
A: CNC Cylindrical Grinders enhance efficiency by automating the grinding process, ensuring consistent precision and reducing manual intervention.
A: Precision ensures parts fit perfectly into assemblies, reducing friction and wear, which is crucial for industries like automotive and aerospace.
A: They offer high accuracy, versatility in material processing, and consistent efficiency, essential for producing high-quality cylindrical parts.
