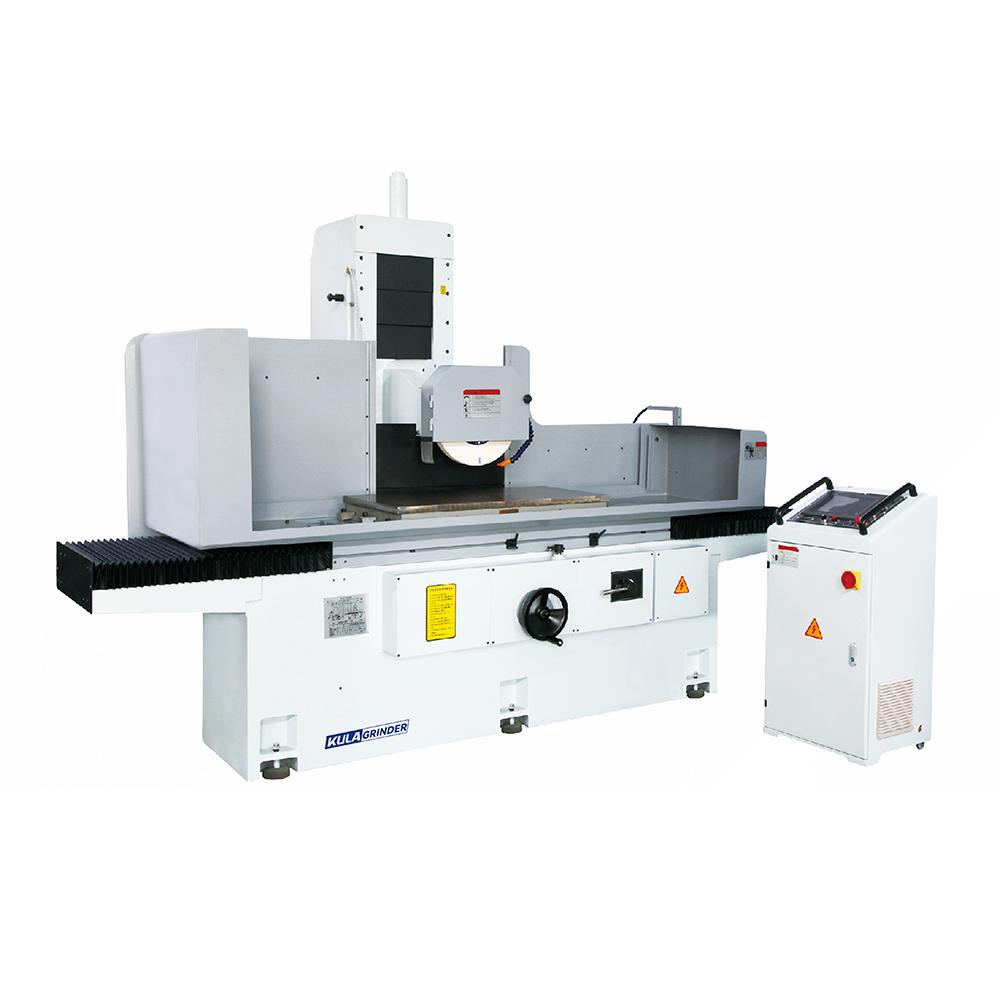

What Makes the HRE Series CNC Horizontal Surface Grinder Stand Out?

You get great grinding accuracy and work faster with the HRE Series CNC Horizontal Surface Grinder. The double-layer casting makes the machine strong and steady. Six very precise ball bearings in the spindle help it hold heavy things. The hydraulic system lets the table move up to 98 feet per minute. Real-time performance checks keep your work exact. The advanced control system and quick servo motors make switching jobs simple and fast. You save time and always get good results on every project.

Key Takeaways

• The HRE Series CNC Horizontal Surface Grinder is very accurate and fast. It helps you finish your work quickly. Its strong T-jointed frame and double-layer casting make it shake less. This keeps grinding steady and exact. The dual V-guides have a tough coating that does not wear out fast. This makes the grinder last longer and stay accurate. Smart PLC controls make it easy to use and set up jobs fast. This saves you time and hard work. This grinder can be used for many materials and jobs. It is a great tool for any workshop.

CNC Horizontal Surface Grinder Features

High Rigidity and T-Jointed Frame

You want your machine to stay steady every time you use it. The HRE Series CNC Horizontal Surface Grinder has a T-jointed frame that makes it strong. This frame connects the front and back parts together. Because of this, the machine does not shake or bend when you are working. The double-layer casting gives even more support. You get a strong base that helps you keep your grinding work correct.

The way the machine is built and how it handles cutting forces are very important for how well it works and how long it lasts. The machine needs to be stiff but not too heavy, or it will cost too much. Using stiffener plates in the right places can make the machine stronger. Engineers use special tests and computer methods, like Finite Element Methods, to make the machine better. These methods help the machine move less and become stiffer, so it works better.

This means you can trust your CNC Horizontal Surface Grinder to work with heavy pieces and still be exact.

Dual V-Guides and Wear Resistance

You want your machine to last a long time and work well. The HRE Series uses dual V-guides for moving parts. These guides help the table and carriage move in a straight line. The V-shape keeps everything moving the right way and stops it from sliding the wrong way. The guides have a special coating that fights wear. This coating helps the machine stay accurate, even after many hours of work. You do not need to worry about fixing it often or losing accuracy as time goes on.

Advanced Z-Axis Feed and Spindle

You can control how deep you grind with the advanced Z-axis feed system. The HRE Series CNC Horizontal Surface Grinder uses a stepper motor with a brake and a built-in encoder. This setup lets you move the grinding wheel up and down by hand, automatically, or very fast. You can switch between different jobs without wasting time. The spindle is thicker now, so it gives you more grinding power. Six high-precision ball bearings hold the spindle. You can work with heavy loads and still get smooth, exact results.

PLC Control and Automation

You get smart controls with the HRE Series. The PLC control system lets you set up the grinding process to run by itself. You can make the machine grind flat surfaces or grooves easily. The main control panel puts all the buttons in one place. You can pick automatic or manual grinding wheel feed. The machine also has a fast up and down feed. The hydraulic system moves the table left and right, and a stepper motor moves the column. You can control each part by itself, which makes your work faster and easier. The automatic grinding wheel dressing keeps your tools sharp and ready.

With all these features, the HRE Series CNC Horizontal Surface Grinder is a smart and reliable choice for your workshop.

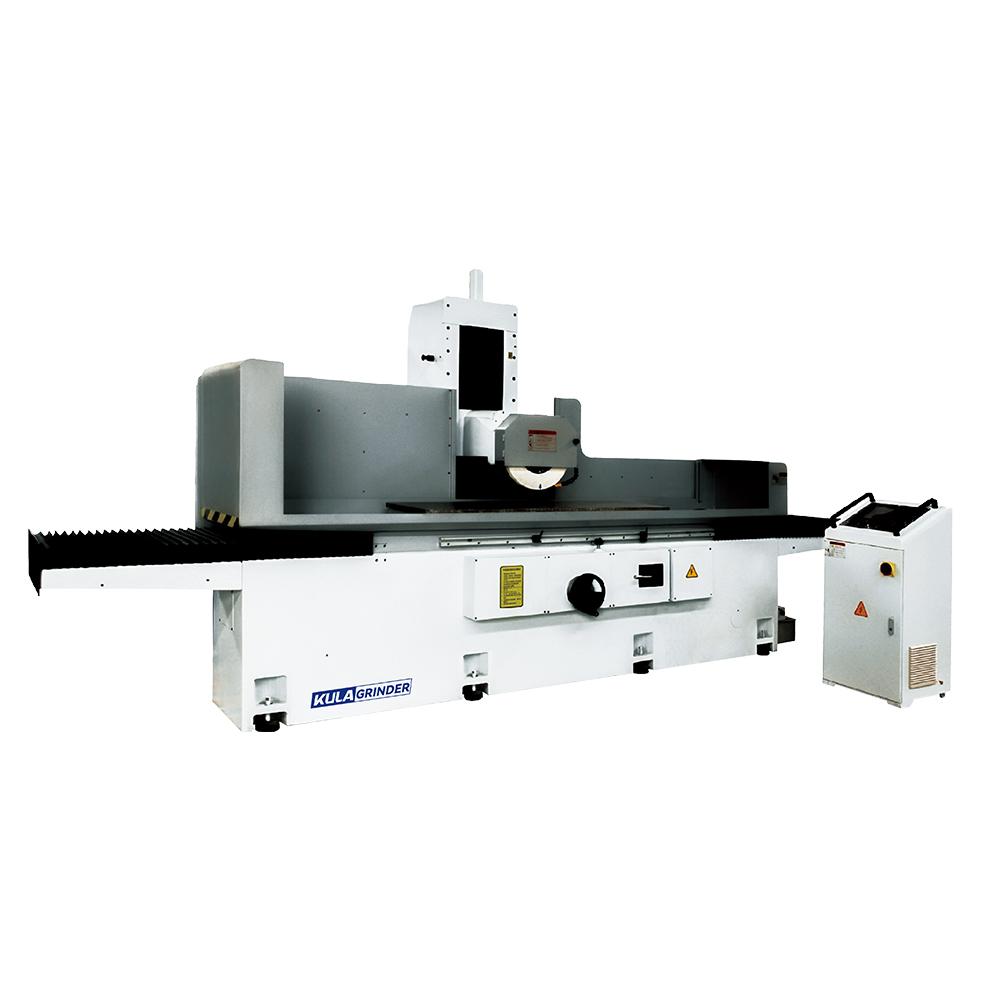

Performance and Precision

Consistent Grinding Accuracy

You want every part to be made right. The CNC Horizontal Surface Grinder helps you do this. It uses a stepper motor with an encoder for the Z-axis. You can set how deep to grind with great accuracy. The dual V-guides keep the table moving straight. You get the same results each time you use it. The automatic grinding wheel dressing keeps the wheel sharp. You do not have to worry about rough surfaces or mistakes.

Tip: Always look at the encoder readings before you start. This helps you avoid errors and keeps your work correct.

Vibration Reduction and Stability

You need a steady machine for good grinding. The T-jointed frame and double-layer casting make the grinder strong. This design cuts down on vibration when you use it. Six ball bearings in the spindle hold heavy loads without shaking. You see less movement and have more control. The hydraulic system moves the table smoothly. You get nice finishes on your workpieces.

• Strong frame

• Double-layer casting

• Six ball bearings

• Smooth hydraulic table movement

These things work together to keep your grinding steady.

Efficient Operation and Maintenance

You save time with easy controls and smart features. The PLC system lets you automate many jobs. You can switch between manual and automatic modes fast. The control panel puts all the buttons together. You do not waste time looking for controls. The wear-resistant coating on the guides means less maintenance. The automatic wheel dressing keeps your tools ready for the next job.

You get more work done and keep your machine working well.

User Benefits and Applications

Versatility for Different Workpieces

You can use the CNC Horizontal Surface Grinder for many jobs. This machine works with metal and non-metal materials. You can shape sheet metal and mold templates. It also helps make instrument bases and precision fixtures. You can handle big workpieces easily. Many industries use this grinder. You see it in precision machinery, and car factories. It is also used in aerospace and tool making.

You get more choices for your workshop. You do not need to change machines for different jobs. You finish more projects with just one tool.

Ease of Use and Centralized Controls

You control the machine from one main panel. All the buttons and switches are in one spot. You do not waste time looking for controls. The PLC system helps you set up jobs fast. You can pick automatic or manual modes with one touch. You can change the grinding wheel feed and table movement easily. You learn to use the machine quickly, even if you are new.

Tip: Try automatic mode first for smooth work. Use manual mode for special jobs.

You spend less time learning and more time working. You keep your work simple and fast.

Reduced Downtime and Maintenance

You keep your machine working by being smart. You store extra parts like belts, filters, seals, and sensors. You do not wait long when you need to fix something. You write down checks and repairs in a log. You watch your grinder’s health and find problems early. You change how often you do maintenance based on how much you use the machine. You stop breakdowns and keep your work on track.

• Store extra parts for quick fixes

• Write logs for checks and repairs

• Change maintenance times for your needs

You have less downtime and your CNC Horizontal Surface Grinder is always ready.

Comparison with Other Surface Grinders

Key Differentiators

You might wonder why the HRE Series is special. The HRE Series has a T-jointed frame and double-layer casting. This makes the base strong and steady. Many other grinders use just one layer for the frame. These can shake more and lose accuracy. The HRE Series uses dual V-guides with a special coating. This helps the parts move smoothly and last longer. Other grinders use flat guides. Flat guides can wear out faster and need more repairs.

The HRE Series has an advanced Z-axis feed system. You can control how deep you grind with a stepper motor and encoder. You can pick manual, automatic, or rapid feed. Most grinders only have manual or simple automatic feed. The HRE Series also has automatic wheel dressing. This keeps your grinding wheel sharp and ready.

Competitive Advantages

You get many good things with the HRE Series. The PLC control system lets you automate jobs. You can set up tasks fast and change settings on one panel. Other grinders may have controls in different places. This can slow you down and cause mistakes. The HRE Series uses a hydraulic system to move the table. It uses a stepper motor for the column. You can control each part by itself. You work faster and get better results.

Here is a simple table to show the differences:

You can see the HRE Series CNC Horizontal Surface Grinder gives you more control. You get better accuracy and easier operation. You finish jobs faster and your machine lasts longer.

You have a CNC Horizontal Surface Grinder that is special. It has a strong frame and dual V-guides. The advanced controls make it easy to use. You can work with many materials. You finish your jobs faster. There is less downtime, so you do not wait long. It is simple to operate.

You pick this machine because it works well and gives you exact results every time.

FAQ

How do you operate the HRE Series CNC Horizontal Surface Grinder?

You use the main control panel to run the machine. You can pick automatic or manual mode. The PLC system helps you set up jobs fast. You press buttons to start, stop, or change the grinding.

What materials can you grind with this machine?

You can grind metal and non-metal materials. It works well with sheet metal and mold templates. You can also use it for instrument bases and precision fixtures. Many industries use this machine for different jobs.

How does the machine keep grinding accurate over time?

The dual V-guides have a special coating that fights wear. The automatic wheel dressing keeps the grinding wheel sharp. You get the same accuracy, even after using it for a long time.

What maintenance does the HRE Series require?

You check the guides, spindle, and hydraulic system often. You keep extra belts and filters ready to use. The wear-resistant parts mean you spend less time fixing the machine.
