What Is A Grinding Machine?

A grinding machine is a machine tool used to further process workpieces, achieving higher surface roughness control and dimensional accuracy. It typically uses a high-speed rotating grinding wheel to remove material from the workpiece surface, thus achieving grinding, removing excess material, and refining shape and surface quality.

Contents:

1. Definition of a Grinding Machine

2. Grinding Process

3. Differences between Grinding, Cutting, and Polishing

4. Common Types of Grinding Machines

5. Common Applications of Grinding Machines

I. Definition of a Grinding Machine

Before explaining grinding machines, let's first explain "grinding," a material removal process.

Grinding is a machining method that uses a high-speed rotating grinding wheel to remove a small amount of material from the workpiece surface, achieving high dimensional accuracy and excellent surface roughness. It is typically used in the final finishing stage and is suitable for machining workpieces with high hardness and requiring extremely high geometric accuracy and surface finish.

II. Grinding Processes are Mainly Divided into Four Types

External Grinding: Precise grinding of the outer diameter of cylindrical workpieces, significantly improving roundness, cylindricity, and surface roughness. Typical applications include the final finishing of shafts, gear hubs, and connecting parts. Key monitoring points are concentricity, clamping rigidity, and coolant management.

Internal grinding: Grinding the inner surface of holes to achieve high concentricity, roundness, and diameter tolerance. Commonly used for mating holes, bushings, etc. The challenge lies in clamping and preventing wheel movement, requiring stable support and precise control of the toolpath.

Surface grinding: Grinding a flat surface on a worktable to achieve extremely high flatness and low roughness. Widely used for mold reference surfaces, flat parts, etc. Important indicators include flatness, perpendicularity, and in-plane uniformity.

Centerless grinding: Suitable for mass production of cylindrical parts. The workpiece does not require center positioning; efficient machining is achieved through the centerless structure of the grinding machine. Advantages include high machining speed and relatively high positioning tolerance, but higher requirements are placed on grinding parameters and machine tool rigidity, requiring precise feed and grinding wheel compensation management.

III. The difference between grinding machines and turning/polishing.

Item	Grinder	Cut	Polish
Objectives and core principles	High-hardness abrasive grains are used to remove minute amounts of material from the surface of a workpiece, aiming for extremely high geometric accuracy and surface roughness. This method is often used in the final finishing stage.	A large amount of material is removed by cutting/cutting tools to achieve separation of size and shape or preliminary shaping, emphasizing processing speed and edge quality.	Under conditions where the amount of material removed is very small or even close to zero, the surface smoothness is improved through mechanical, chemical or electrochemical actions, emphasizing the mirror effect and uniformity.
Common equipment and abrasives	Grinding wheels, belts, and other abrasive tools require a good cooling and dressing system, and attention should be paid to heat input and abrasive wear.	Band saws, lasers, plasmas, etc., emphasize rapid cutting and edge control.	Polishing pads/discs, polishing fluids or pastes, paying attention to abrasive particle size and the chemical properties of the medium.
Typical processing objects	Components requiring extremely high precision, such as cylindrical surfaces, inner holes, and planes (e.g., shafts, hubs, mold reference surfaces).	Preliminary forming or cutting of large materials such as plates, pipes, and rods.	Surfaces requiring a mirror finish, such as mirror parts, optical components, and the internal cavity of molds, require a bright finish.

IV. Common Types of Grinding Machines

Surface Grinding Machine: Specialized for high-precision grinding of flat or shaped surfaces of workpieces, aiming to achieve extremely low surface roughness and high flatness.

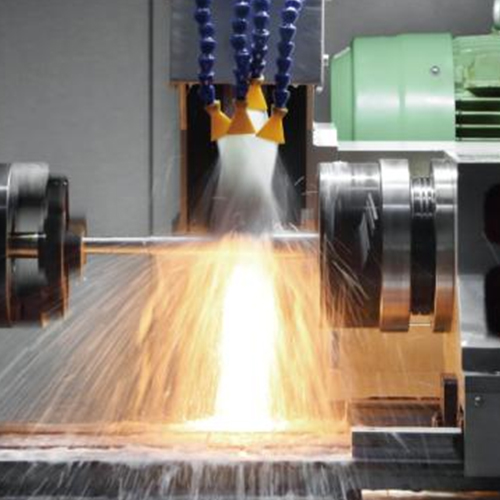

Cylindrical Grinding Machine: Used for precise grinding of the outer diameter of cylindrical workpieces to improve roundness, cylindricity, and coaxiality.

Internal Grinding Machine: Used for grinding the inner surfaces of holes, primarily achieving high-precision control of hole diameter tolerances, roundness, and inner diameter.

Centerless Grinding Machine: Suitable for mass production of cylindrical parts, allowing for rough/finish grinding of the workpiece without center positioning, emphasizing output and stability.

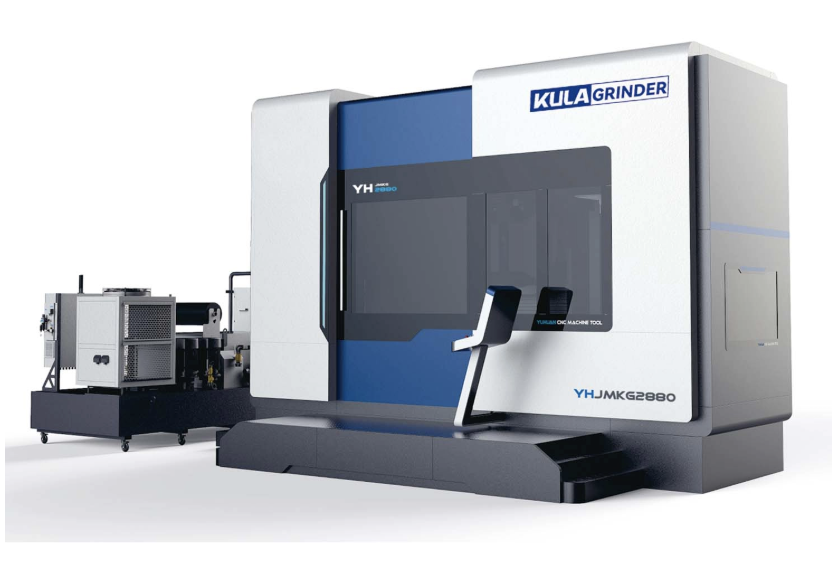

Vertical Grinding Machine: A type of grinding machine with a vertical spindle and workpiece clamped and machined vertically. Suitable for high-precision grinding of flat, cylindrical, and other surfaces of large or heavy workpieces, and generally superior to horizontal machine tools in terms of structural rigidity, stability, and machining stability.

V. Common Applications of Grinding Machines

Automotive and Energy Industries: Machining high-precision cylindrical or conical surfaces such as crankshafts, camshafts, gear shafts, and bearing housings; precision grinding of gears and shaft parts to improve surface quality and dimensional stability.

Aerospace: Machining engine components (such as turbine shafts, supports, and guides) and high-strength structural parts, requiring extremely high geometric accuracy and surface quality.

Precision Machinery and Mold Manufacturing: Machining guide surfaces, planar reference surfaces, mold working surfaces, and fixture surfaces, requiring high flatness and consistency.

Machine Tool and Tool Manufacturing: Tool sharpening, tool spheroidizing, and micro-dressing to improve tool life and machining stability.

Components and General Industrial Manufacturing: High-precision grinding of external diameters, internal diameters, cylindrical surfaces, conical surfaces, and end faces to improve the concentricity and surface roughness of mating parts.

Electronics and Precision Electronic Equipment: Machining small, high-precision parts with high flatness and surface quality to ensure assembly accuracy.

Energy and New Materials: Precision grinding and surface cleaning of high-hardness materials (such as hardened steel and cemented carbide) to improve component durability and reliability.

FAQ

I don't know which grinding equipment to choose.

If you'd like, please tell us your material type, target output, and tolerance requirements, and we can provide you with a complete solution.

What is the role of the grinding wheel in a grinding machine?

The grinding wheel is the turning tool of the grinding machine, responsible for progressively removing material from the workpiece and determining machining accuracy and surface quality. In other words, the materials and shapes that can be machined during grinding depend on the grinding wheel used.

If you encounter difficulties in choosing a grinding machine or would like to learn more about grinding machines, please contact us. We will recommend the most suitable grinding machine based on your needs and concerns.
