Views: 0 Author: Site Editor Publish Time: 2025-03-21 Origin: Site

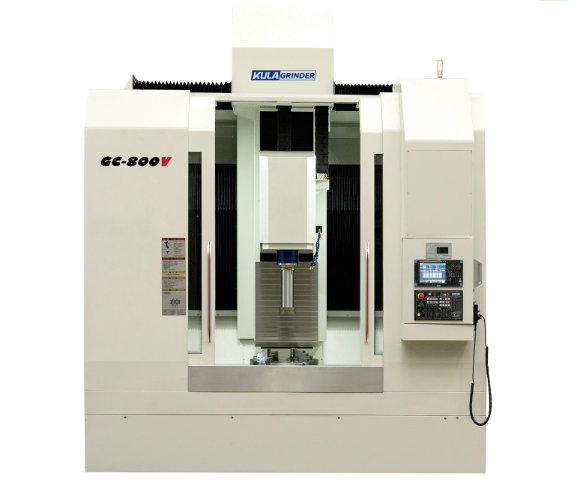

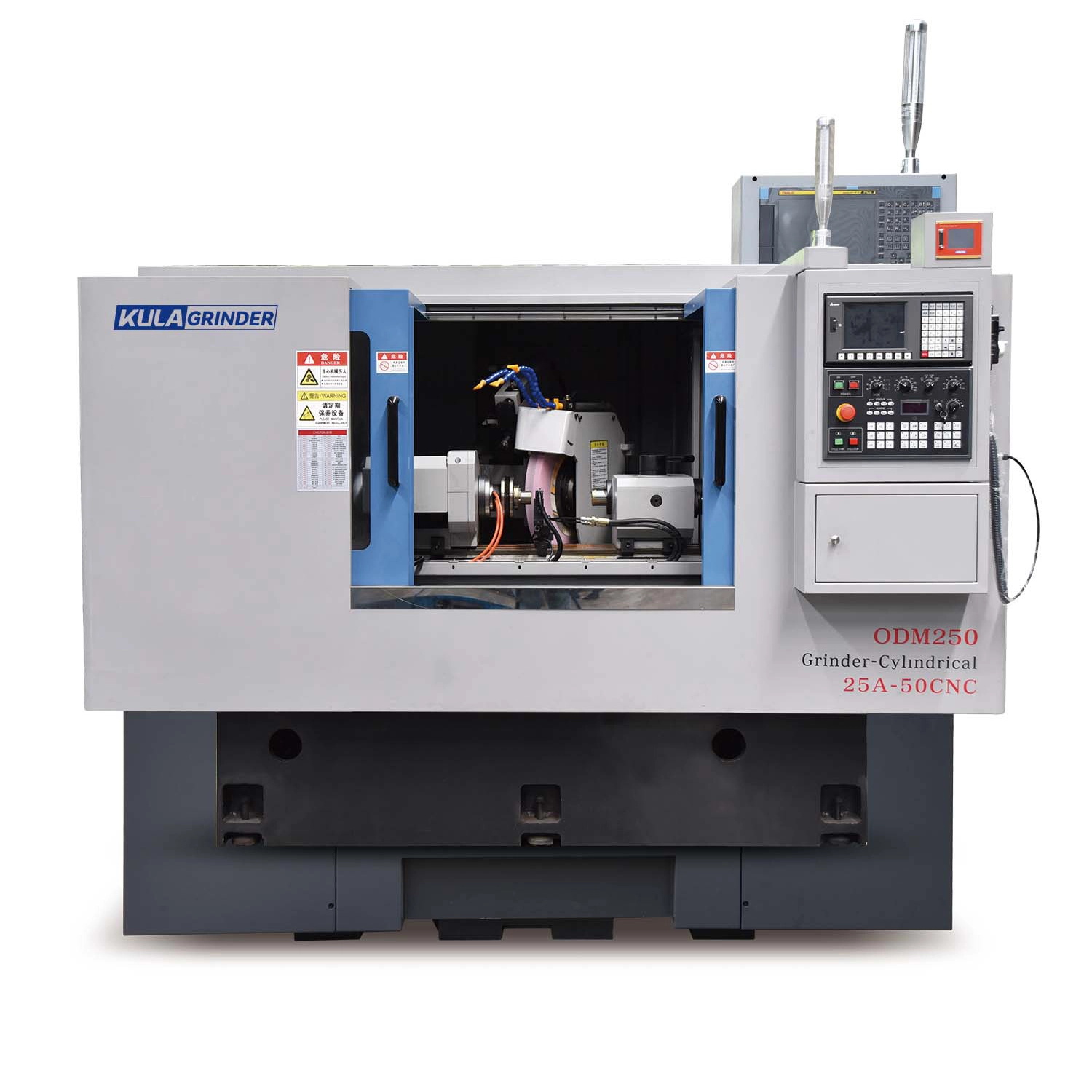

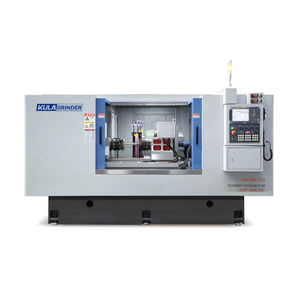

A CNC Cylindrical Grinder is an advanced grinding machine that uses computer numerical control to automate the grinding process of cylindrical workpieces. Precision is achieved through coordinated movements between the grinding wheel and the rotating workpiece, ensuring tight tolerances and uniform surface quality. These machines are vital for industries that demand precise components such as automotive shafts, aerospace bearings, and medical instruments.
A CNC Cylindrical Grinding Machine combines an abrasive wheel and a programmable system, often controlled via CNC software, to grind the outer diameter (OD) or inner diameter (ID) of cylindrical parts. Key mechanical elements include:
Wheelhead
Workhead
Tailstock/Steady Rest
Precision Linear Guides
These components work together to provide stability and precision required in high‑accuracy grinding processes.
Below is a simplified breakdown:
| Component | Function |
|---|---|
| Wheelhead | Rotates and positions grinding wheel |
| Workhead | Secures and rotates workpiece |
| Tailstock/Steady Rest | Supports long or thin parts |
| CNC Control | Dictates precise motion and cuts |
Precision in a CNC Cylindrical Grinder starts with machine rigour and dynamic control of all these elements.
Achieving superior results in a CNC Cylindrical Grinder involves managing multiple precision factors. Below are the most critical factors and how they influence the results:
A robust machine frame minimizes vibration. Stiffness in base and guides reduces geometric distortion during grinding.
Effective clamping (chucks, centers, steady rests) prevents part deflection. A secure grip ensures consistent material removal.
Wheel composition, abrasive grit, and bonding affect surface finish and dimensional accuracy.
Accurate tool paths and CNC commands ensure repeatability and precision through programmed motion.
Appropriate coolant reduces heat effects that cause thermal expansion, improving dimensional stability.
To guarantee precision on your CNC Cylindrical Grinder, follow these actionable practices:
Programming must achieve the correct balance between feed rate, speed, and depth of cut. Well‑designed CNC code minimizes grinding stresses and improves part accuracy.
Selecting wheels with proper grit, hardness, and profile ensures precise material removal and stable surface finish. Dressing wheels regularly also ensures consistent cutting performance.
Before grinding, verify:
Workpiece alignment
Center positioning
Wheel and part concentricity
A minor setup error can cause cumulative inaccuracies.
Excess heat leads to expansion and dimensional variation. Integrating temperature control and stable coolant flow can maintain high precision.
Implement real‑time gauging and feedback systems (e.g., laser measurement or touch probes) to detect deviations and adjust grinding parameters instantly.
Using a CNC Cylindrical Grinder drastically improves precision over manual methods due to automation and repeatability. The table below highlights key differences:
| Feature | Manual Cylindrical Grinding | CNC Cylindrical Grinder |
|---|---|---|
| Precision | Moderate | High (±0.002 mm achievable) |
| Repeatability | Low | Very High |
| Automation | None | Fully Programmable |
| Operator Skill Dependency | High | Moderate |
| Surface Quality | Variable | Consistent & Fine |
Today’s CNC Cylindrical Grinder isn’t just a mechanical tool—it's part of precision manufacturing ecosystems enhanced by:
Sensors monitor grinding forces and vibrations, feeding data back to the CNC controller for on‑the‑fly adjustments.
Computer‑Aided Manufacturing (CAM) tools generate optimized grinding strategies, reducing errors and improving surface finishes.
Automatic dressing units maintain wheel shape and balance, preserving grinding consistency throughout production.
Even the best CNC Cylindrical Grinder loses precision without regular maintenance. Consider these activities:
| Task | Importance |
|---|---|
| Linear Guide Lubrication | Prevents wear |
| Spindle Calibration | Ensures geometric accuracy |
| Coolant System Cleaning | Reduces thermal issues |
| Ball Screw Inspection | Maintains motion precision |
Consistent maintenance prevents deviations that erode dimensional accuracy over time.
In one manufacturing scenario, using CNC cylindrical grinding methods dramatically improved product quality and repeatability:
Before CNC: Performance shaft diameter tolerance varied ±0.01 mm
After CNC Implementation: Tolerance consistently achieved ±0.002 mm
Surface Finish Improvement: Ra 0.25 μm to ~0.1 μm
This level of precision was key in delivering parts for an aerospace assembly—underscoring how improvements in grinding practices directly correlate with performance outcomes.
Even with modern CNC technology, precision challenges remain:
Solution: Use coolant systems and stable environmental conditions.
Solution: Scheduled maintenance and component replacement.
Solution: Adjust clamping strategy and optimize grinding parameters.
By identifying and proactively managing these challenges, manufacturers can maintain high accuracy.
As digital transformation continues, precision in CNC cylindrical grinding evolves:
Machine‑embedded sensors will provide richer datasets for predictive control.
Machine learning models will optimize grinding paths and parameters for reduced cycle times and improved accuracy.
Robotic integration will automate loading and part handling, reducing human error and increasing throughput.
Precision in a CNC Cylindrical Grinder results from a synergy of advanced machine design, high‑quality tooling, optimized programming, environmental control, and ongoing maintenance. By following best practices and leveraging modern technologies, manufacturers can achieve tight tolerances, consistent surface finishes, and reliable part quality that meets or exceeds industry standards. Precision grinding is not just about the machine—it’s about the systems and processes integrated around the grinding machine to maximize performance.
1. What tolerance can a CNC Cylindrical Grinder realistically achieve?
A well‑configured CNC Cylindrical Grinder can achieve tolerances as tight as ±0.002 mm and even finer with advanced control systems.
2. How often should grinding wheels be dressed for precision grinding?
Grinding wheels should be dressed regularly based on usage, surface finish requirements, and material type to maintain true wheel geometry.
3. Are CNC Cylindrical Grinders suitable for batch production?
Yes—CNC Cylindrical Grinders provide high repeatability and automation, making them ideal for batch production.
4. What industries benefit the most from precision cylindrical grinding?
Aerospace, automotive, medical device manufacturing, and precision engineering sectors benefit significantly from CNC cylindrical grinding’s accuracy.
5. How do environmental conditions affect grinding precision?
Temperature variation and humidity can lead to thermal expansion or contraction, affecting dimensional accuracy. Controlled shop environments help ensure consistent results.
