Machining high-precision parts often brings a familiar frustration. Moving components between dedicated internal and external grinders introduces clamping variations, stack-up errors, and costly dead time. Achieving tight concentricity between a bore and an outer diameter—such as +/- 0.0002" or better—relies heavily on minimizing human intervention. Every time an operator unchucks a workpiece, microscopic debris or alignment shifts threaten the final tolerance. These tiny disruptions ruin perfectly good parts and destroy your production schedule. You can eliminate handling errors and compress cycle times by consolidating these operations into a seamless workflow. We will explore how performing OD ID face grinding in one setup serves as the definitive solution for modern machine shops. You will learn the technical architecture, evaluation criteria, and hidden operational risks involved in multi-spindle machining.
Combining OD, ID, and face grinding in one setup effectively eliminates stack-up tolerance errors and guarantees near-perfect concentricity and perpendicularity.
CNC composite grinders shift the ROI equation from "speed per operation" to "yield and total cycle time," making them highly advantageous for High-Mix, Low-Volume (HMLV) production.
Successful implementation requires strict environmental controls, such as thermal stability management (chillers, 68°F ambient) and rigorous wheel balancing protocols.
Evaluating between horizontal composite machines and a CNC Vertical Grinder depends primarily on part length, weight, and center-of-gravity dynamics.
Traditional multi-machine routing creates heavy bottlenecks on the shop floor. You might start a part on a lathe. Next, it goes to a cylindrical grinder. Then it moves to an internal grinder. Finally, it finishes on a surface grinder. Every single unclamping and reclamping phase introduces risk. Microscopic debris or chips can easily wedge against the chuck jaws. These tiny alignment shifts destroy sub-micron tolerances before you even start the next cycle.
Single-clamping geometry inherently guarantees concentricity between the internal diameter and the outer diameter. The spindle holds the part exactly once. Because the workpiece never leaves the chuck, the relationship between the inner and outer surfaces remains mathematically perfect. The machine also maintains strict squareness and perpendicularity to the ground face. You remove the stack-up error entirely.

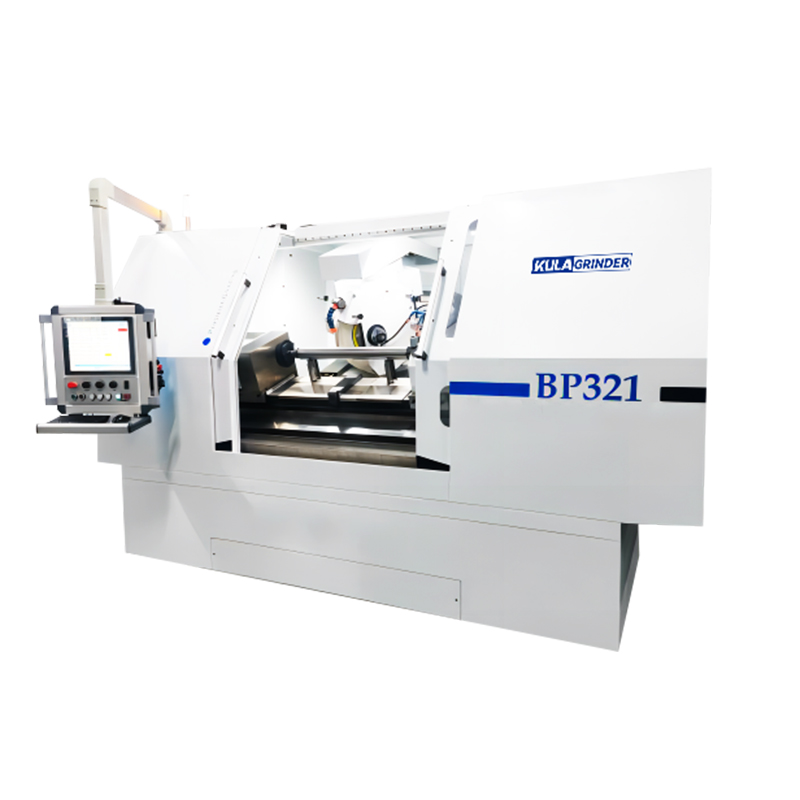

Transitioning from three dedicated footprint machines to a single CNC OD and ID Grinding Machine transforms your operation. You immediately reduce the required square footage in your facility. You also free up operator headcount. One machinist can manage a single automated cell instead of tracking batches across three different departments.
Moving parts between machines drastically increases handling damage risks. Eliminating the transfer of parts lowers your scrap rate significantly. Dropping an expensive, late-stage high-nickel alloy or aerospace part ruins your profit margin. Consolidating the process safely keeps the delicate component securely clamped from start to finish.
How exactly do these machines manage multiple complex operations simultaneously? Let us look at the internal mechanical anatomy.
Modern machines utilize intelligent indexing wheelheads, commonly called turrets. They often feature robust B-axis configurations. This setup holds multiple wheels at the same time. You might mount a straight wheel, a cup wheel, and an angled wheel on the same turret. The machine rotates the turret into position for different material removal strategies. All of this happens seamlessly in one cycle.
You gain incredible abrasive flexibility. The machine can run different wheel formulations sequentially without stopping. Consider a complex aerospace shaft. It might feature a tungsten carbide coating over a steel substrate. You can program a diamond wheel to dress the hard carbide. Immediately after, the turret indexes automatically. A CBN (Cubic Boron Nitride) wheel then finishes the softer steel sections.
Precision relies on constant verification. Integrated touch probes measure sub-micron tolerances directly inside the machine. They check the bore or outer diameter before the finish pass. This enables on-the-fly dimensional compensation. The control software automatically triggers dressing cycles if it detects wheel wear.
Here are the core technical steps in a standard composite workflow:
The touch probe measures the raw stock to establish a precise zero point.
The coarse abrasive wheel removes the bulk material rapidly via plunge grinding.
The control system initiates an automated dressing cycle to restore wheel sharpness.
The fine-grit wheel executes the final spark-out pass for optimal surface finish.
We must transparently address where this technology excels and where it might be overkill. Selecting the right architecture dictates your future success.

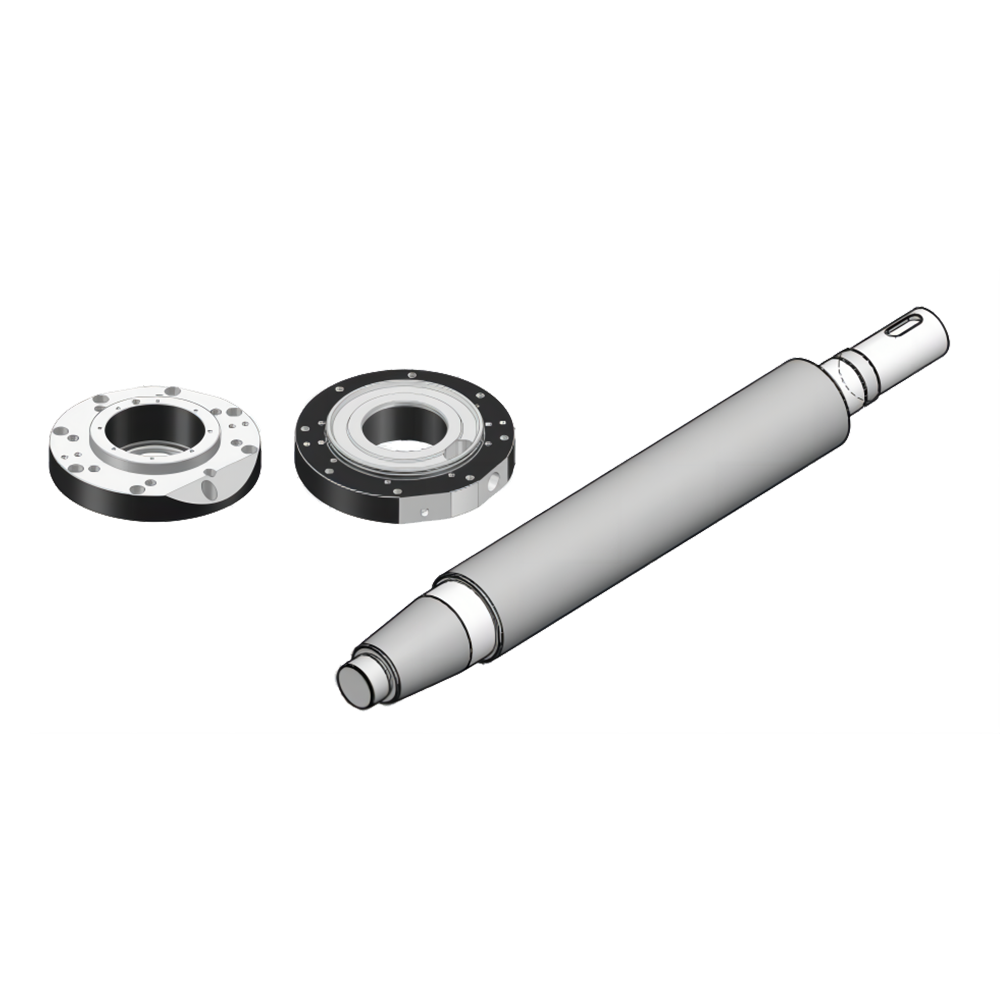

These machines thrive in High-Mix, Low-Volume (HMLV) environments. They easily handle highly complex components. Think of aerospace shafts, specialized bearing races, or custom hydraulic cylinders. These parts require frequent changeovers. A single setup machine eliminates hours of manual re-tooling. Conversely, consider millions of standardized, low-complexity pins. Dedicated centerless grinders or PLC-driven single-purpose machines still offer better raw throughput for uniform massive-volume runs.
Standard shafts and moderate-weight components fit perfectly on horizontal machines. However, heavy, large-diameter parts change the physics entirely. Awkward-to-chuck parts like large aerospace rings demand a CNC Vertical Grinder. In a vertical setup, gravity becomes your ally. It assists in seating the heavy part flat against the workholding. This naturally prevents the severe spindle sag common in horizontal setups.
Evaluate the machine's compatibility with robotic loading systems. Can it easily integrate with a gantry or an articulated arm? Lights-out, unattended shifts require robust automation interfaces. You need reliable part ejection and automatic door mechanisms to make unattended grinding possible.
Use this quick comparison chart to guide your initial assessment:
Part Profile | Production Volume | Best Machine Choice |
|---|---|---|
Complex, Multi-Stepped, High-Value | Low to Medium (HMLV) | Horizontal Composite Grinder |
Heavy, Large Diameter, Ring-Shaped | Low to Medium | CNC Vertical Grinder |
Simple Uniform Pins, Small Cylinders | High (Millions of units) | Centerless Grinder |
Flat Plates, Molds, Square Blocks | Variable | Surface Grinder |
You cannot simply plug these machines in and expect perfection. Tight tolerances demand strict environmental and operational controls. We must address the hidden realities of operating multi-spindle equipment.
A multi-spindle machine generates complex heat maps. Heat causes metal to expand unpredictably. Achieving a 0.0002" tolerance requires temperature-controlled environments. You must maintain your shop at 68°F (+/- 2°F) year-round. High-grade coolant chillers are absolutely necessary to extract heat from the cutting zone. Look for thermally stable machine beds made from polymer concrete or epoxy granite. Cast iron fluctuates too much under heavy thermal loads.
Multi-spindle setups present unique physical hazards regarding coolant. Consider a stationary, porous grinding wheel. If you leave a coolant nozzle dripping onto it overnight, disaster awaits. The wheel absorbs moisture on one side. This creates a massive weight imbalance. Upon spin-up the next morning, you face severe out-of-balance vibrations. In worst-case scenarios, you risk catastrophic wheel bursts. Always shut off coolant properly and run dry spin cycles before shutting down.
Transitioning machinists from lathes to CNC grinding requires paradigm shifts. Turning relies on distinct chip loads and hard inserts. Grinding behaves differently. Operators must understand spark-out passes. They need to master dressing variables and wheel-bond behavior. To bridge this gap, look for controllers equipped with conversational programming. Visual interfaces help traditional machinists adapt to grinding logic quickly.
Keep these best practices in mind to avoid common mistakes:
Never ignore ambient shop temperature swings during summer months.
Always dynamically balance grinding wheels after the initial heavy dressing.
Avoid using the wrong coolant formulation, which glazes the abrasive grains.
Rely on in-machine probing rather than removing the part for manual inspection.
Base your machine selection on your largest, heaviest, and tightest-tolerance parts. Do not buy a machine based on your average parts. If your heaviest part causes spindle deflection, the machine fails you. Measure your largest swing diameter and maximum part length before talking to vendors.
Assess your true spindle configuration needs carefully. Do you need a basic dual-spindle setup? Or do you require a complex multi-station tool changer? A highly configured CNC Composite Grinder can execute roughing, finishing, and face grinding in rapid succession. Match the spindle count and wheel capacities directly to your most complex part print.
Hardware outlasts software. Evaluate the builder’s control system with the future in mind. Is it a proprietary black box, or a standard Siemens or Fanuc system? Standard systems offer easier troubleshooting and wider operator familiarity. Check the availability of conversational software for easy dressing cycles. Finally, ensure the system easily exports digital quality traceability data. Generating Cpk statistics directly from the control proves your capability to demanding aerospace clients.
Executing OD, ID, and face grinding in one setup is an advanced manufacturing strategy. It trades slightly higher upfront equipment costs for massive downstream gains. You secure exceptional part yield, flawless geometric accuracy, and reduced labor bottlenecks. By keeping the part clamped once, you let the machine dictate the precision rather than the operator.
Encourage your buying committee to demand evidence before purchase. Request a detailed time-study from the manufacturer. Better yet, run a test-grind using your specific part prints. Validate their cycle times and concentricity claims directly. Seeing your actual part hit the required tolerance builds ultimate confidence before procurement.
A: It completely eliminates stack-up tolerance errors caused by re-chucking the part. By keeping the workpiece clamped once, you ensure near-perfect concentricity between internal and external diameters. It also significantly reduces overall cycle time and manual handling risks.
A: Vertical grinders are superior for heavy, large-diameter, or short parts. Gravity helps stabilize the workpiece securely against the chuck. This natural seating prevents the spindle sag or part distortion that often occurs on a horizontal spindle with massive components.
A: Yes. Utilizing indexing wheelheads, these machines hold multiple wheels at once. You can load coarse grit wheels for heavy stock removal via plunge grinding. You can then index to fine-grit or CBN wheels for precision finishing in the exact same cycle.
A: For rotational, cylindrical parts requiring a finished perpendicular face, yes. The composite machine handles the face grinding perfectly. However, for flat plates, complex molds, or square blocks, a dedicated surface grinder remains absolutely required.
