Views: 0 Author: Site Editor Publish Time: 2026-03-24 Origin: Site
CNC internal grinding machines give very high accuracy for making parts. You use cnc internal grinding machines to shape hard inside spaces. They help you make exact holes and small, detailed parts for planes or medical tools. These cnc machines are very good at doing the same thing over and over. They also make smooth surfaces. This meets the needs of high-precision work. With cnc control, you can get very tiny tolerances and the same results each time. The table below shows how cnc grinding is better than old grinding in accuracy, how many parts you can make, and how steady the process is:
Metric | CNC Grinding | Traditional Grinding |
|---|---|---|
Tolerance | Micron range | Higher tolerances |
Accuracy | 0.0001 inches | Varies |
Production Volume | > 50 million parts annually | Lower volume |
Daily Component Processing | > 10,000 in automotive/aerospace | Varies |
Process Stability Improvement | 85% | N/A |
Reduction in Human Error Rates | 60% | N/A |
Continuous Operation Capability | Up to 20 hours | N/A |
You count on cnc internal grinding machines for accuracy, doing the same thing every time, and smooth finishes in every job. These machines help your factory reach top quality and work fast.
Common uses for cnc internal grinding machines include:
Complex internal geometries
Precision bores
Aerospace components
Medical device manufacturing
Intricate parts with strict tolerances
CNC internal grinding machines give very accurate results. They can make the same part many times. This helps make parts that need to be exact.
You must use the right spindle power and speed. This helps make surfaces smooth. It also keeps the quality high in CNC grinding.
You should clean and oil CNC machines often. This helps them work well. It also makes sure they give the same results every time.
Automation in CNC grinding makes work faster. It lets the machine run all the time. It also lowers mistakes made by people.
Picking the right grinding wheel and coolant is important. This keeps parts safe. It also helps get the finish you want.
CNC control systems help you get very exact results in internal grinding. The cnc system is like the brain of the cnc grinder. It follows instructions and moves the grinding tool and workpiece very carefully. This makes it possible to reach tiny tolerances and do the same thing again and again. You can grind hard shapes and get the same outcome each time. The cnc system moves in many directions. This helps keep the tool in the right spot and makes sure the grinding path is always the same. All your parts turn out with the same accuracy. When the cnc machine moves smoothly, there are fewer mistakes. You can count on cnc grinding machines to give you great quality and very exact work.
Tip: Always check the instructions before you start a cnc grinding job. This helps you keep your work accurate and repeatable every time.
You need a strong and steady machine for very exact cnc grinding. The machine’s frame must not shake or move. If the setup is not steady, you might see mistakes or lose accuracy, especially when working fast. The Adyn number tells you how steady your machine is. If the grinding force or stiffness changes, the machine can become less steady. When you use a cnc grinding machine that is very strong, you get better results and smoother surfaces. You also stop the workpiece from moving when you do not want it to. This is important when you need parts with very small tolerances.
Main things that affect precision in cnc internal grinding:
Wheel speed
Depth of cut
Table speed
Material properties
Abrasive wheel grade
You have to watch spindle power and speed in cnc grinding. The spindle makes the grinding wheel spin. If the wheel spins fast, you can remove material quickly and get a smoother surface. How deep you cut changes how exact the grinding is. Table speed changes how fast you finish the job. You need to control heat and rubbing so you do not hurt the workpiece. How hard you press on the workpiece also changes how smooth it is. If you pick the right spindle settings, you get better results and higher quality.
Parameter | Effect on Grinding Quality |
|---|---|
Wheel Speed | Changes how smooth the surface is and how fast you remove material |
Depth of Cut | Changes how exact the grinding is |
Table Speed | Changes how fast you finish grinding |
CNC grinding helps you get very exact and repeatable results. The right spindle power and speed help you reach small tolerances and smooth finishes. You make better parts and work faster with every grinding job.
CNC internal grinding machines shape the inside of parts very precisely. They make smooth and accurate surfaces inside holes and bores. You can trust cnc grinding to make parts that fit together well. The cnc system controls the grinding wheel and the part. This means you get the same quality every time. Internal cylindrical grinding machines use a small wheel to reach inside hollow parts. These machines are used in many factories because they give high precision and good quality for important parts.
Characteristic/Function | Description |
|---|---|
Grinding Capability | Can grind inside hollow parts with great precision |
Grinding Wheel | Uses a small wheel to shape the inner surface |
Application | Needed for parts that must fit together, like bearing housings or hydraulic cylinders |
Industries | Used in aerospace, automotive, and medical fields |
It is important to know how internal grinding and external grinding are different. Internal grinding shapes the inside of a part, like bores or tapered holes. External grinding works on the outside, like cylinders or shafts. CNC grinding lets you control both types, but the setup and results are not the same. Internal grinders use a small wheel to work inside. External grinders use a bigger wheel on the outside. You pick internal grinding when you need precise bores or parts with tight tolerances inside.
Feature | Internal Grinder | External Grinder |
|---|---|---|
Definition | A machine for grinding inside surfaces of parts (like bores or tapered holes). | A machine for grinding outside surfaces of parts (like cylinders or tapers). |
Working Principle | The part spins; a small wheel spins fast and moves into the inside of the part. | The part spins; a big wheel spins fast and moves against the outside surface. |
Workpiece Types | Bores, inside tapered surfaces, inside formed surfaces. | Outside cylindrical surfaces, outside tapered surfaces, shoulders. |
Core Difference | Works on inside surfaces. | Works on outside surfaces. |
CNC internal grinding machines are used in many industries. They help make parts for cars, planes, and medical devices. You use them to make precise bores in engine parts, bearing races, and hydraulic cylinders. In medicine, cnc grinding makes surgical tools, dental implants, and orthopedic implants. These machines give you the same results and smooth surfaces for important jobs.
Common uses for cnc internal grinding:
Surgical tools
Dental implants
Orthopedic implants
Engine parts
Bearing races
Hydraulic cylinders
Tip: If you need tight tolerances and smooth surfaces inside a part, use cnc internal grinding machines for the best results.

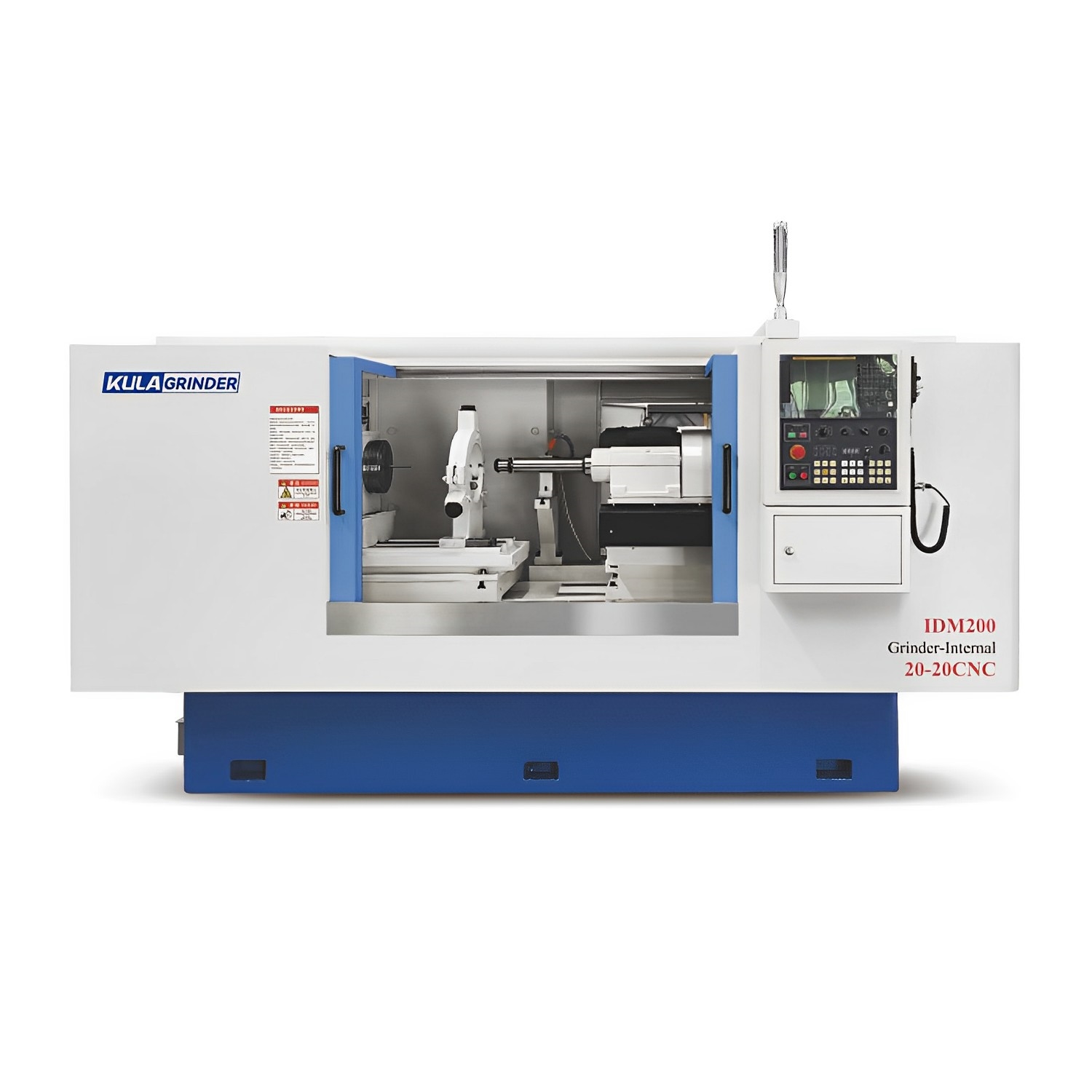

A cnc grinding machine must be very strong to work well. The IDM Series from KULA Precision Machinery has a base made from one piece of cast iron. This base has a honeycomb shape with ribs. The ribs are filled with a hard composite material. This makes the machine very stiff and keeps it stable when it gets hot. When you use a cnc grinder built like this, it shakes less. You get more accurate work. The base, spindle, and guideways all help the machine hold tight tolerances. They also help make sure your parts are high quality.
Key structural features:
One-piece cast iron base
Honeycomb rib design
Stiff composite material for stability
Precision guideways and ball screws
You can pick different spindle types for cnc grinding machines. The IDM Series lets you choose mechanical or electric spindles. Mechanical spindles are strong and good for tough jobs. Electric spindles spin faster and are better for smooth finishes. This means you can match the spindle to your job. With the right spindle, you get smoother parts and the same results every time.
CNC grinding machines have special axes and movement systems. These help shape the inside of parts very exactly. Some machines, like the IDM Series, can grind both inside and outside surfaces. This helps you get round parts and smooth finishes. The axes move carefully, so every part comes out the same.
Modern cnc grinding uses smart control systems. These systems use sensors and make changes by themselves to keep grinding accurate. Some features are direct drive spindles, linear motors, and in-process gauging. These help you keep your work exact and repeatable. The table below lists some advanced control features:
Advanced Control System | Description |
|---|---|
Direct drive spindles | Remove backlash for higher precision and torque. |
Linear motors | Give smooth, direct movement and reduce vibration. |
Active wheel dressing | Keep the grinding wheel sharp for consistent profiles. |
In-process gauging | Measure parts during grinding to prevent errors. |
Automatic tool changers | Switch tools quickly for better efficiency. |
Picking the right tools is important for cnc grinding. You need to choose grinding wheels that fit your material’s hardness. Changing feed rate and speed helps stop tools from wearing out or getting too hot. Using coolants and lubricants makes tools last longer and gives a better finish. CNC tool grinder machines can automate these choices. This helps you work faster and make better parts.
Tip: Using automation and flexible cnc tool grinder machines helps you get more exact work, finish jobs faster, and get the same results every time.
You use conventional grinding to shape the inside of a part. The cnc grinder has a spinning wheel that takes off small bits of material. You tell the cnc grinder where to go inside the part. This way, you get good accuracy and tight tolerances. Conventional grinding works for many kinds of parts. It is good for making simple holes and shapes. The process gives you a smooth surface and the same results each time.
High-speed grinding uses a faster spindle and special wheels. You pick this process when you want to finish parts quickly. High-speed grinding makes the surface better and saves time. The cnc system controls how fast and how much the wheel moves. You can get high accuracy and keep tight tolerances. This works best for hard materials and making lots of parts. You also make less heat and the wheel lasts longer.
Bore and groove grinding helps you make small details inside a part. The cnc machine can make tiny bores, deep holes, and thin grooves. You set the cnc to follow the right path for each shape. This process gives you high accuracy and smooth surfaces. You can trust the cnc to make the same part every time. Bore and groove grinding is important for car and airplane parts.
Automation makes cnc grinding faster and more exact. You can add robots and real-time checks to your cnc machines. These systems help you:
Use cnc controls with robots for better accuracy than people.
Let robots move parts so each one is in the right spot.
Keep parts moving all the time, which stops damage and keeps them clean.
Automation helps you do the same thing every time and meet tight tolerances. You can make more parts and get smoother surfaces. Automation also helps check quality at every step of cnc grinding.
Tip: Add automation to your cnc grinding to work faster and keep your parts top quality.
You need to pick a cnc grinding machine that matches your material and part. Each part has its own size, shape, and how close the measurements must be. Hard materials need more spindle power and a strong machine. If your part has a tricky inside shape, check if the machine can handle it. The table below lists what you should think about when picking a cnc grinder:
Criteria | Description |
|---|---|
Part Requirements | Size, geometry, and tolerance requirements dictate the machine's capacity. |
Material Type | Hardness and grindability influence spindle power and rigidity needed. |
Production Volume | High-volume production may require machines with automation capabilities. |
Accuracy Requirements | Positioning accuracy and repeatability must meet part specifications. |
Flexibility Needs | Ability to handle various parts or dedicated to specific components. |
Automation Integration | Machines with robotic loading/unloading for lights-out production. |
Cost Considerations | Balance initial investment with long-term operating costs. |
CNC automation and special features help you work faster and better. Automation means less hand work and lower labor costs. You get the same results every time, so all parts are alike. CNC grinding machines let you make custom programs for special shapes. Precision grinding wastes less material and keeps workers safe. The IDM Series has full cnc automation, which is good for many factories.
Automation in cnc grinding helps you work faster and pay less for labor.
CNC grinding machines give you the same quality for lots of parts.
Programmable systems let you make tricky inside shapes.
Precision grinding saves material and helps the planet.
Automated cnc grinding keeps workers safer.
You want your cnc universal internal grinders to change with new jobs. Flexible machines can make many kinds of parts and inside shapes. Modular designs and digital tools help you keep up with others. Training your team on cnc grinding helps your factory get ready for new things. The IDM Series is flexible and works with Industry 4.0, so it is ready for the future.
Modular and flexible cnc universal internal grinders can change for new jobs.
Teaching workers about cnc grinding helps your factory grow.
Industry 4.0 and automation help you make more parts and work better.
Smart grinding technologies help you do a better job and make tricky shapes.
You need to think about both the first price and the cost to run the cnc grinding machine. Figure out how long it takes to earn your money back and if the investment is worth it. Automation saves money on workers and makes fewer mistakes. You can use your workers for other jobs and save money each year. The IDM Series gives you high accuracy and the same results, so you get more for your money.
Methodology | Description |
|---|---|
Payback Period | Time taken to recover the investment from net cash inflows. |
Internal Rate of Return | Compares the investment’s rate of return to the required rate of return. |
Net Present Value (NPV) | Calculates the present value of cash inflows and outflows. |
Tip: Always look at machine features for your needs and how much they help in the long run. Think about the IDM Series because it is flexible, has cnc automation, and works for many factories.
CNC grinding gives you very exact parts and smooth surfaces. These machines can make a surface roughness less than 1 micrometer. This means your parts will feel smooth and look nice. You can keep tolerances as close as ±0.0001mm. This is much better than most other ways to make parts. CNC grinding helps parts fit together just right. You also throw away fewer parts because the process is so exact. The table below shows what you get with cnc grinding:
Metric | Value |
|---|---|
Surface Roughness (Ra) | as low as 0.025μm |
Dimensional Tolerances | ±0.0001mm |
Automated Precision | ±0.0005mm |
Scrap Rate Reduction | <2% |
Median Surface Roughness | less than 1 micrometer |
CNC programming helps stop mistakes from people. You can make thousands of parts that are all the same. Special feedback systems check sizes while you work. This keeps your quality high and your results steady.
CNC grinding lets you work faster and make more parts. You can run your cnc grinder all day and night. The machine works by itself, so you do not worry about mistakes. You can finish jobs up to 40% faster than by hand. CNC grinding machines can shape tricky parts in one setup. This saves time and means you do not move parts as much. The table below shows how cnc grinding helps your factory:
Feature | Benefit |
|---|---|
Automated Precision | Repeatability of ±0.0005mm for thousands of parts |
High-Volume Throughput | 24/7 operation, 30–40% faster cycle times |
Complex Geometry | Grinds non-circular profiles in one setup |
CNC controls keep the grinding steady and exact. This is important for parts that must fit perfectly. You also save money because you throw away less and check less.
You might have some problems with cnc grinding, but you can fix them. Wheel loading can slow you down. Use open wheels and good coolant to stop clogging. Heat can damage your parts. Use the right feed rates and enough coolant to keep things cool. Brittle materials need gentle grinding. Use diamond wheels and make sure your setup is steady. If you want a smoother finish, try grinding more than once with different wheels and speeds. The table below shows common problems and how to fix them:
Challenge | Solution |
|---|---|
Wheel Loading | Open-structured wheels, proper coolant flow |
Thermal Damage | Optimize feed rates, apply coolant properly |
Brittleness | Use diamond wheels, stable setups |
Surface Finish | Multiple passes, vary wheel grits and speeds |
Wheel Wear | Dress the grinding wheel regularly |
Vibration | Rigid setups, balanced wheels |
You can keep your cnc grinding working well and your quality high if you follow these tips.
You must set up cnc grinding machines the right way for best results. First, pick the correct settings for each job. Use clear GD&T callouts for important part features. This helps you measure and check the shape of your parts. Set the surface finish and where to check it to control quality. Choose a good datum plan so your cnc grinder has solid reference points. Always look at the material’s condition because it can change your setup. Leave enough extra material on surfaces so you do not run out. Make a plan to check size and surface quality after grinding.
Item to define | Importance in grinding |
|---|---|
GD&T callouts on critical features | Makes sure you measure and check the shape right, which is key for precision. |
Surface finish parameter and location | Sets the goal for how smooth the surface should be, which affects the grinding and final part quality. |
Datum strategy (primary/secondary/tertiary) | Gives reference points for accurate setups, which means less rework. |
Material condition | Changes how easy it is to grind and if burning might happen, so it affects setup. |
Stock allowance on ground surfaces | Makes sure you have enough material for grinding, so you do not make mistakes from not having enough. |
Inspection plan for acceptance | Tells you how to check size and surface quality, which is important for keeping precision. |
You keep cnc grinding machines working well by doing regular maintenance. Clean the machine every day to get rid of dust and dirt. Lubricate moving parts so they move smoothly. Check important parts often to find wear or damage early. Make sure the cnc grinder stays lined up and calibrated. Watch how the machine works to see if accuracy drops or more parts get rejected. These steps help you keep high precision, repeatability, and good quality in your work.
Clean the machine every day to remove dust and dirt.
Lubricate moving parts so they work well.
Check important parts for wear or damage.
Make sure alignment and calibration are correct.
Watch performance to find problems with accuracy.
You use process monitoring to keep cnc grinding exact and steady. In-process gaging checks the size of the part while grinding. This helps you catch changes from tool wear or the environment. Advanced feedback systems, like in-process laser measurement, watch the size in real time. If something goes outside the limits, the cnc system can change feed rates or spindle speed. Machine sensors collect data and show it on a dashboard. You see problems fast and can fix them right away. These tools help you keep tight tolerances, high repeatability, and top quality in every job.
Tip: Use real-time monitoring and feedback systems to keep your grinding process steady and your parts within strict tolerances.
You use cnc grinding machines like the IDM Series to make parts very exact. Cnc grinding helps you get close measurements, do the same thing every time, and make good quality parts. You need to know about machine features, types of processes, and how to pick the right machine to do your best work. Cnc grinding makes surfaces smoother and keeps your work correct. You can get better accuracy and work faster if you follow these tips:
Pick the best wheel for the material you are using.
Use coolant to keep things cool and protect the part.
Take care of your cnc grinder by doing regular checks.
Make sure your cnc program uses the right speeds and feed rates.
Hold your part tight so it does not shake.
You should look up more information or ask experts before you choose a cnc grinding machine for your factory.
You get very high accuracy and repeatability with cnc grinding machines. These machines help you make parts with tight tolerances. You can also finish jobs faster and keep quality high.
You should look at your part size, material, and how many parts you need to make. Check if the cnc grinder has the right spindle and automation features for your work.
Yes, you can use cnc grinding machines for many materials. You can grind steel, aluminum, ceramics, and more. You just need to pick the right wheel and settings for each material.
Automation lets you run the cnc machine for long hours without stopping. You can load and unload parts with robots. This helps you make more parts and reduce mistakes.
You should clean the cnc grinder every day. Lubricate moving parts and check for wear. Make sure the machine stays aligned. Regular checks help you keep your cnc machine working well.
