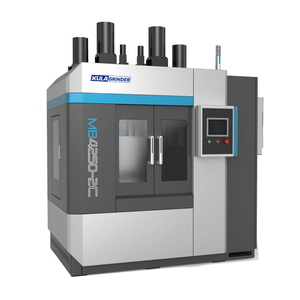

User-Friendly Interface And Control System
The machine is equipped with an intuitive touch screen, utilizing menu technology for a conversational honing interface. This setup allows all parameters to be easily displayed and adjusted, providing flexibility and ease of use during operations.
Tool Wear Compensation
A comprehensive tool wear compensation function is included in the control system, offering both manual and automatic compensation options. This feature ensures precision and extends tool life by adjusting for wear during the honing process.
CNC Program Exchange And Storage
The CNC system comes with an SB interface that facilitates the seamless exchange of machining programs between the machine and a computer. Additionally, it supports the storage of programs on external media, enhancing operational efficiency and data management.
Precision Stroke And Feed Control
The stroke and feed mechanisms are driven by a combination of a "private motor + ball screw" system. This arrangement delivers a high feed resolution of 0.1μm, ensuring precise control over the honing process.
Advanced Cooling And Filtration System
The machine is equipped with a filtration system composed of a magnetic separator, paper filter, and oil cooler. This system provides a filtration accuracy of ≤25μm, a cooling capacity of ≥300L, and a flow rate of ≥100L/min. The honing oil is kept at a constant temperature, minimizing the negative effects of workpiece heating on dimensional accuracy.
Automated Lubrication System
To ensure smooth and continuous operation, the machine is outfitted with a complete lubrication control system. All moving parts are equipped with automatic lubrication devices to reduce wear and extend the machine's lifespan.
Machining Accuracy
The machine delivers high-precision results, with roundness controlled to ≤6μm, cylindricity to ≤8μm per 150mm, and surface roughness (Rz) between 2-4μm. These specifications make the machine ideal for applications requiring strict tolerance and finish quality.
Processing Parts

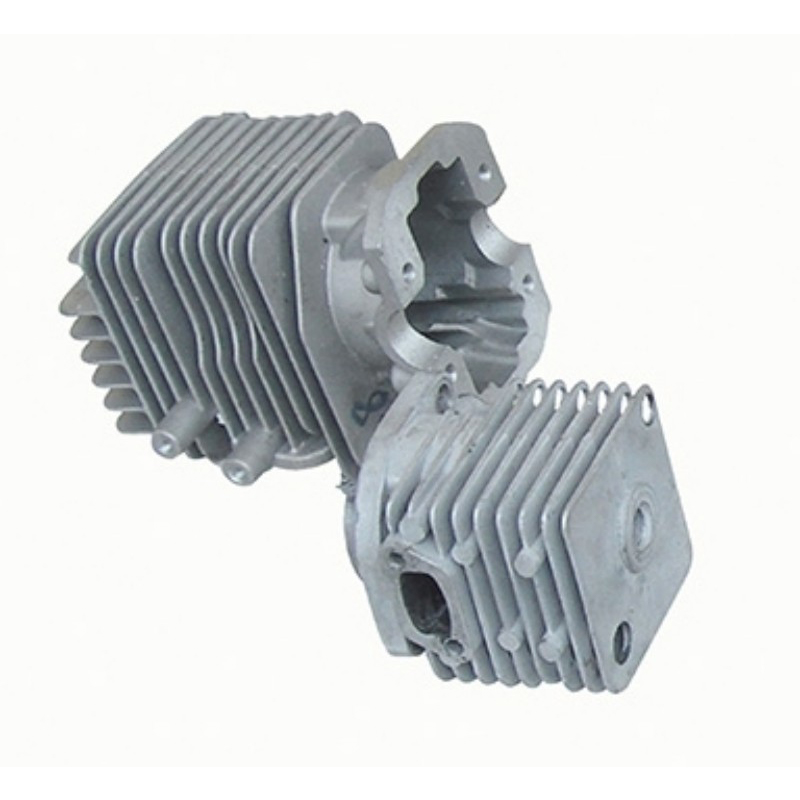

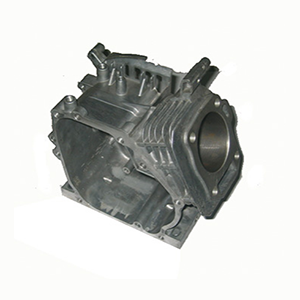

Cylinder

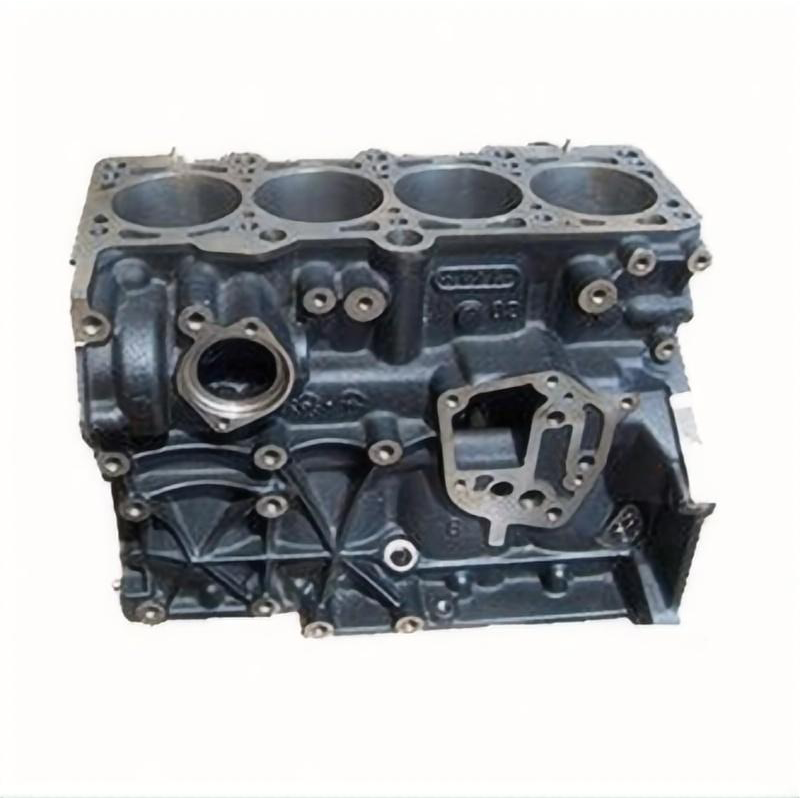

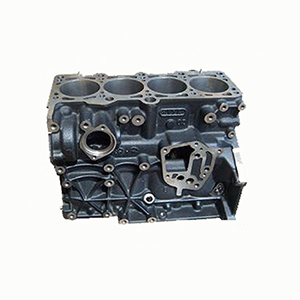

Engine Block

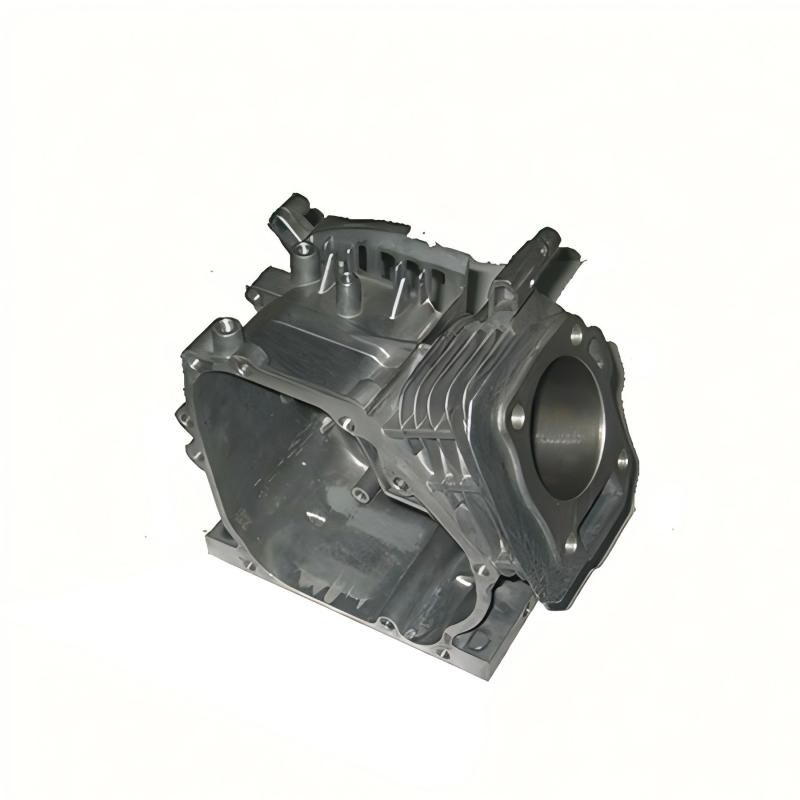

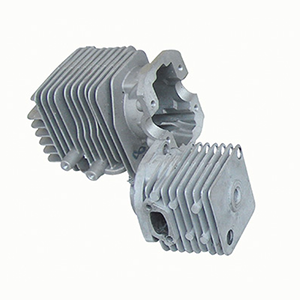

Motorcycle Cylinder
Technical Specifications
ITEM | Cylinder Honing Machine |
Hole diameter | ∅50-∅110mm |
Machined hole type | Through hole |
Broken hole | |
Blind hole | |
Material | All |
Axis number | 2-axis |
Rotation speed | 0-350rpm |
Drive method | servo motor |
External cooling | Yes |
Raise the knife resolution | 0.1μm |
Starting position measurement | Yes |
Stroke measurement | Encoder |
Stroke length | 600mm |
Torque | 70-170Nm |
Noise level | <75dB(A) |
Machine dimensions | 3200 x 2500 x3700mm |
