Features

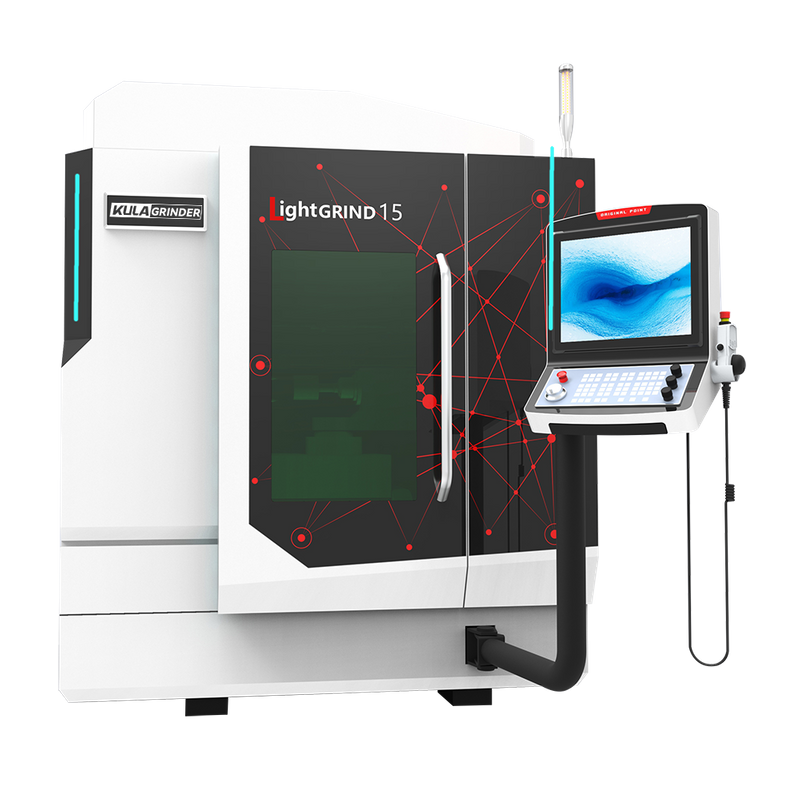

● Designed with a single/dual ultra-fast Laser source and a high-speed rotating grinding spindle, which makes it unique in terms of profile accuracy, efficiency, quality and stability in the machining of external cylindrical and spline curves of superhard materials.
● LightGRIND 15 is equipped with a premium class CNC system, which can perform 4-axis linkage function. The spindle interface is HSK E40, with the repeatability of 2μm, enabling high speed and high precision machining.
● 20 times more efficient than conventional grinding machines for processing superhard materials such as diamond and cubic boron nitride, with roughness less than 0.1 μm and profile accuracy less than 5 μm.
Application Technology
|
|
|
The nanosecond/picosecond laser processing cptics, high precision probe and HSK tool holder are assembled to form the work space. | HSK high-speed 15,000 rpm spindle and A-axis 90° turntable work in conjunction to complete complex profile machining. | High-precision probes are utilized for high-precision tool measurement and workpiece positioning in the work area. |
Technical Specifications
Category | Item | Unit | Parameter | |
CNC system | NEWCON (Fanuc/Siemens optional) | / | NEWCON IM+8 | |
Travel | X Axis | mm | 150 | |
Y Axis | mm | 250 | ||
Z Axis | mm | 200 | ||
Spindle | Spindle maximum rotating speed | rpm | 15000 | |
Tool holder | / | HSK-E40 | ||
Spindle motor power | kw | 11 | ||
Feeding rate | Cutting speed | m/min | 1 | |
Rapid traverse speed (X/Y/Z) | m/min | 6 | ||
Precision | Positioning accuracy (X/Y/Z) | mm | 0.005 | |
Repeatability (X/Y/Z) | mm | 0.003 | ||
Machining range | Maximum part length | mm | 150 | |
Maximum part diameter | mm | 150 | ||
Laser system | Laser source | Pulse width | / | ns/ps |
Wavelength | nm | 1064 | ||
Minimum spot diameter | μm | 30(ns)/20(ps) | ||
Miscellaneous | Machine weight | kg | 2800 | |
Dimensions (L*W*H) | mm | 2535*2142*2303 | ||
Features
● Designed with a single/dual ultra-fast Laser source and a high-speed rotating grinding spindle, which makes it unique in terms of profile accuracy, efficiency, quality and stability in the machining of external cylindrical and spline curves of superhard materials.
● LightGRIND 15 is equipped with a premium class CNC system, which can perform 4-axis linkage function. The spindle interface is HSK E40, with the repeatability of 2μm, enabling high speed and high precision machining.
● 20 times more efficient than conventional grinding machines for processing superhard materials such as diamond and cubic boron nitride, with roughness less than 0.1 μm and profile accuracy less than 5 μm.
Application Technology
|
|
|
The nanosecond/picosecond laser processing cptics, high precision probe and HSK tool holder are assembled to form the work space. | HSK high-speed 15,000 rpm spindle and A-axis 90° turntable work in conjunction to complete complex profile machining. | High-precision probes are utilized for high-precision tool measurement and workpiece positioning in the work area. |
Technical Specifications
Category | Item | Unit | Parameter | |
CNC system | NEWCON (Fanuc/Siemens optional) | / | NEWCON IM+8 | |
Travel | X Axis | mm | 150 | |
Y Axis | mm | 250 | ||
Z Axis | mm | 200 | ||
Spindle | Spindle maximum rotating speed | rpm | 15000 | |
Tool holder | / | HSK-E40 | ||
Spindle motor power | kw | 11 | ||
Feeding rate | Cutting speed | m/min | 1 | |
Rapid traverse speed (X/Y/Z) | m/min | 6 | ||
Precision | Positioning accuracy (X/Y/Z) | mm | 0.005 | |
Repeatability (X/Y/Z) | mm | 0.003 | ||
Machining range | Maximum part length | mm | 150 | |
Maximum part diameter | mm | 150 | ||
Laser system | Laser source | Pulse width | / | ns/ps |
Wavelength | nm | 1064 | ||
Minimum spot diameter | μm | 30(ns)/20(ps) | ||
Miscellaneous | Machine weight | kg | 2800 | |
Dimensions (L*W*H) | mm | 2535*2142*2303 | ||
