Views: 0 Author: Site Editor Publish Time: 2025-03-23 Origin: Site
In precision manufacturing, achieving exceptional accuracy and surface finish is paramount. The three-axis CNC centerless grinder has become a pivotal machine tool, revolutionizing the precision grinding landscape.This article delves into how a high-precision three-axis CNC centerless grinder enhances the quality of precision grinding, exploring its features, advantages, and impact on various industries.
CNC Centerless grinding is a machining process that removes material from a workpiece to achieve precise dimensions and surface finishes. Unlike traditional grinding methods that require the workpiece to be secured between centers, centerless grinding holds the workpiece between a grinding wheel and a regulating wheel, supported by a work rest blade. This setup allows for continuous grinding without the need for workpiece clamping, resulting in higher throughput and efficiency.
There are primarily two types of centerless grinding:
Through-Feed Grinding: The workpiece passes continuously through the grinding wheels, making it suitable for cylindrical parts with uniform diameters.
In-Feed (Plunge) Grinding: The grinding wheel moves radially into the workpiece, allowing for the grinding of complex shapes, such as stepped or tapered geometries.
The integration of Computer Numerical Control (CNC) technology into centerless grinders has significantly enhanced their capabilities. CNC systems enable precise control over grinding parameters, leading to improved accuracy, repeatability, and flexibility. A CNC centerless grinder utilizes programmable controls to automate various aspects of the grinding process, reducing the reliance on manual intervention and minimizing human error.

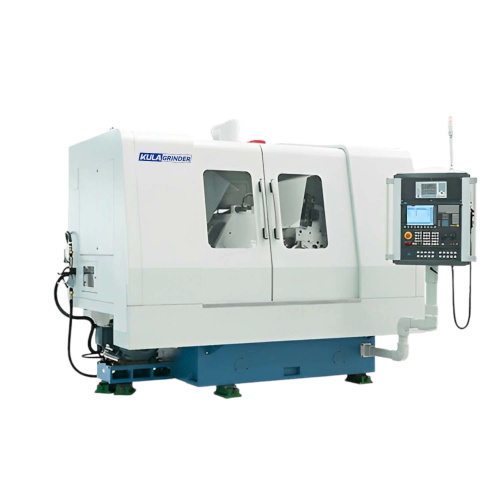

A three-axis CNC centerless grinder incorporates three programmable axes—Typically X, Y and Z axes.This configuration allows for intricate adjustments and movements during the grinding process, facilitating the production of complex geometries with high precision.
High-precision three-axis CNC centerless grinders are equipped with several advanced features that contribute to superior grinding quality:
Rigid Machine Base: Constructed from high-quality cast iron, the machine base undergoes stress-relief processes to eliminate internal stresses, ensuring long-term dimensional stability and vibration dampening.
Precision Spindle Bearings: The grinding and regulating wheel spindles are supported by high-precision bearings, enhancing rotational accuracy and surface finish quality.
Linear Guideways: The use of linear guideways in the machine axes ensures smooth and precise movements, reducing friction and wear over time.
Automatic Wheel Balancing: Integrated wheel balancing systems minimize vibrations during grinding, leading to improved surface finishes and extended wheel life.
Advanced CNC Control Systems: Modern CNC controllers offer user-friendly interfaces, programmable grinding cycles, and real-time monitoring, allowing for precise control over grinding parameters.
In-Process Gauging: Some machines are equipped with in-process gauging systems that monitor part dimensions during grinding, enabling automatic adjustments to maintain tight tolerances.
The adoption of high-precision three-axis CNC centerless grinders offers numerous advantages that directly enhance the quality of precision grinding:
The programmable nature of CNC systems allows for meticulous control over grinding parameters, resulting in consistent and precise dimensions. This is particularly beneficial for applications requiring tight tolerances.
The combination of rigid machine structures, precise spindle bearings, and automatic wheel balancing contributes to achieving excellent surface finishes, essential for components in industries like aerospace and medical devices.
Automation and programmable controls reduce setup times and enable continuous operation, leading to higher productivity and reduced lead times.
The three-axis configuration allows for the grinding of intricate shapes, such as tapers, contours, and multiple diameters, expanding the range of components that can be manufactured.
Automation minimizes the reliance on operator skill, reducing the likelihood of human error and ensuring consistent quality across production batches.
Precise control over grinding parameters and automatic wheel balancing reduce wheel wear, leading to cost savings in tooling and maintenance.
To illustrate the impact of three-axis CNC centerless grinders on precision grinding, let's compare them to traditional centerless grinders:
| Feature/Aspect | Traditional Centerless Grinder | Three-Axis CNC Centerless Grinder |
| Dimensional Control | Manual adjustments; prone to variability | CNC-controlled; high repeatability |
| Setup Time | Longer setup times due to manual adjustments | Reduced setup times with programmable settings |
| Complex Geometry Capability | Limited to simple shapes | Capable of complex geometries (tapers, contours) |
| Surface Finish Quality | Dependent on operator skill | Consistently high-quality finishes |
| Production Efficiency | Lower; manual interventions required | Higher; automation enables continuous operation |
| Operator Dependency | High; skilled operators needed | Lower; automation reduces dependency |
| Maintenance Requirements | Frequent due to manual settings | Predictive maintenance with CNC monitoring |
This comparison highlights the significant improvements in precision, efficiency, and versatility offered by three-axis CNC centerless grinders over traditional models.
The enhanced capabilities of high-precision three-axis CNC centerless grinders make them indispensable in various industries:
Components such as turbine shafts, landing gear parts, and fuel system components require high precision and surface integrity, achievable through advanced centerless grinding.
Surgical instruments, orthopedic implants, and medical tubing demand tight tolerances and superior surface finishes, making CNC centerless grinders ideal for their production.
Parts like transmission components, camshafts, and fuel injectors benefit from the accuracy and efficiency of CNC centerless grinding, ensuring optimal performance.
The production of bearing races and rollers necessitates precise diameter control and surface finish, achievable with high-precision centerless grinders.
Manufacturing precision punches, dies, and tool components requires consistent accuracy, provided by CNC centerless grinding machines.
A high-precision three-axis CNC centerless grinder significantly improves the quality of precision grinding by enhancing accuracy, surface finish, and production efficiency. With its advanced features and automated capabilities, it is an invaluable tool in various high-precision industries. Investing in this technology ensures superior performance, reduced costs, and increased competitiveness in precision manufacturing.
