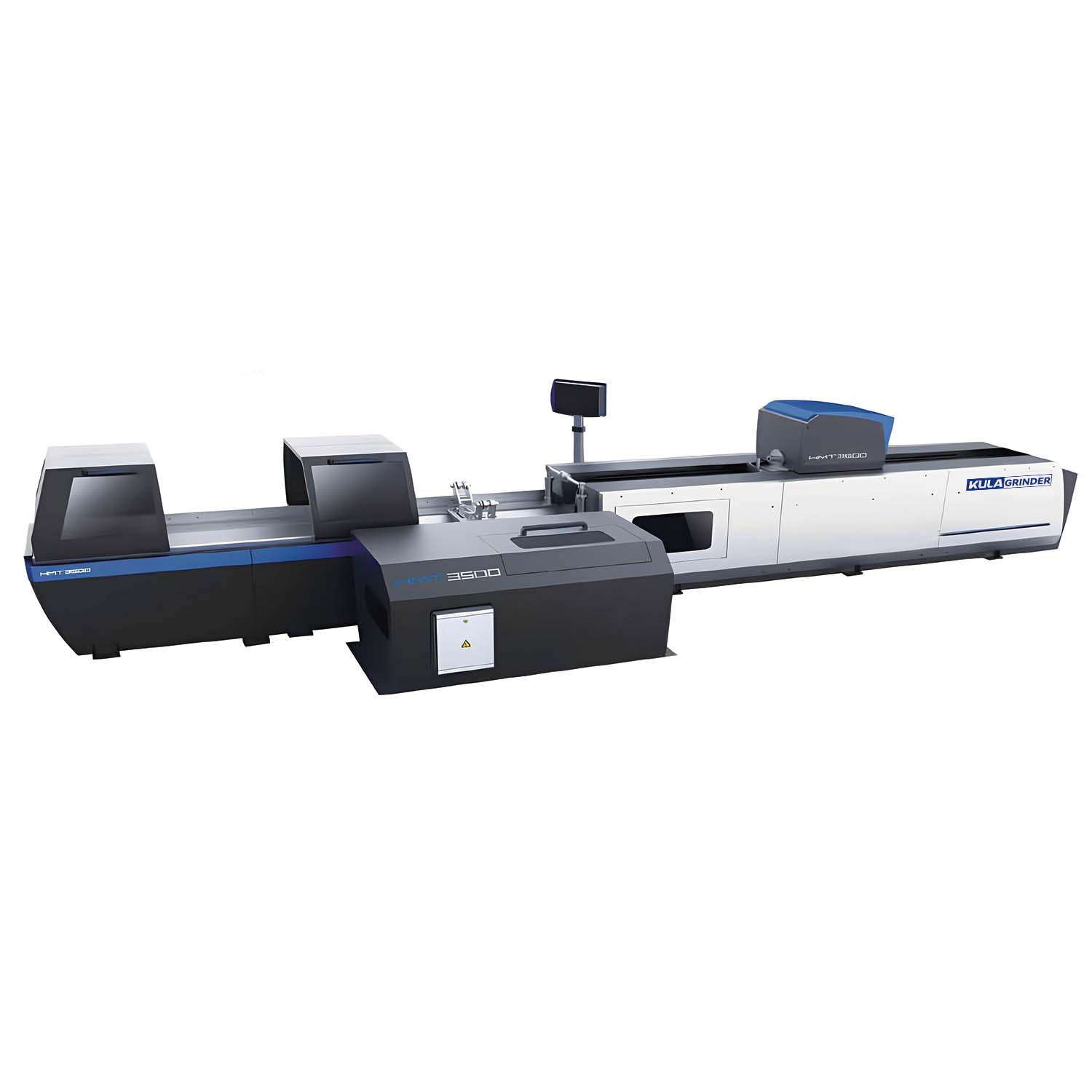

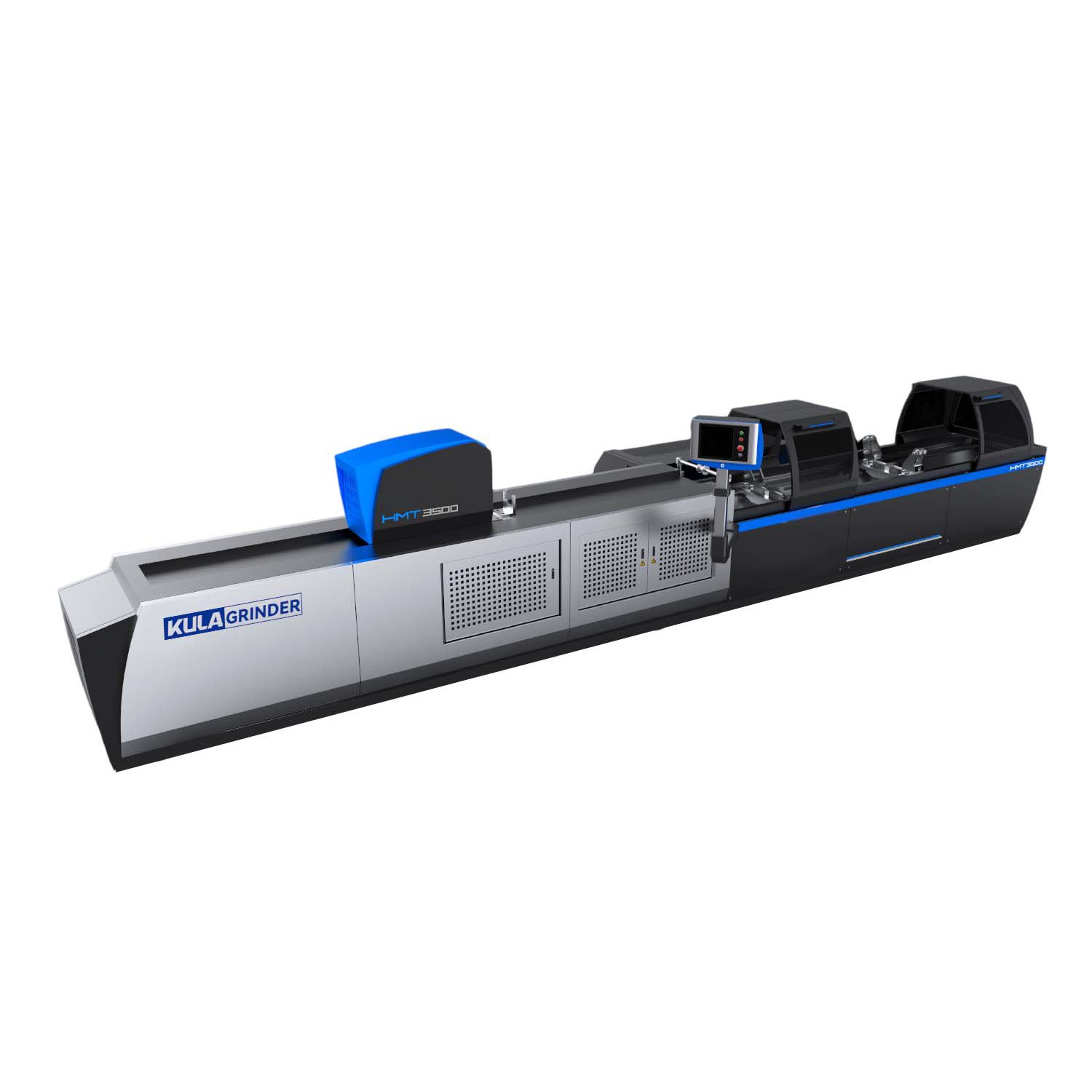

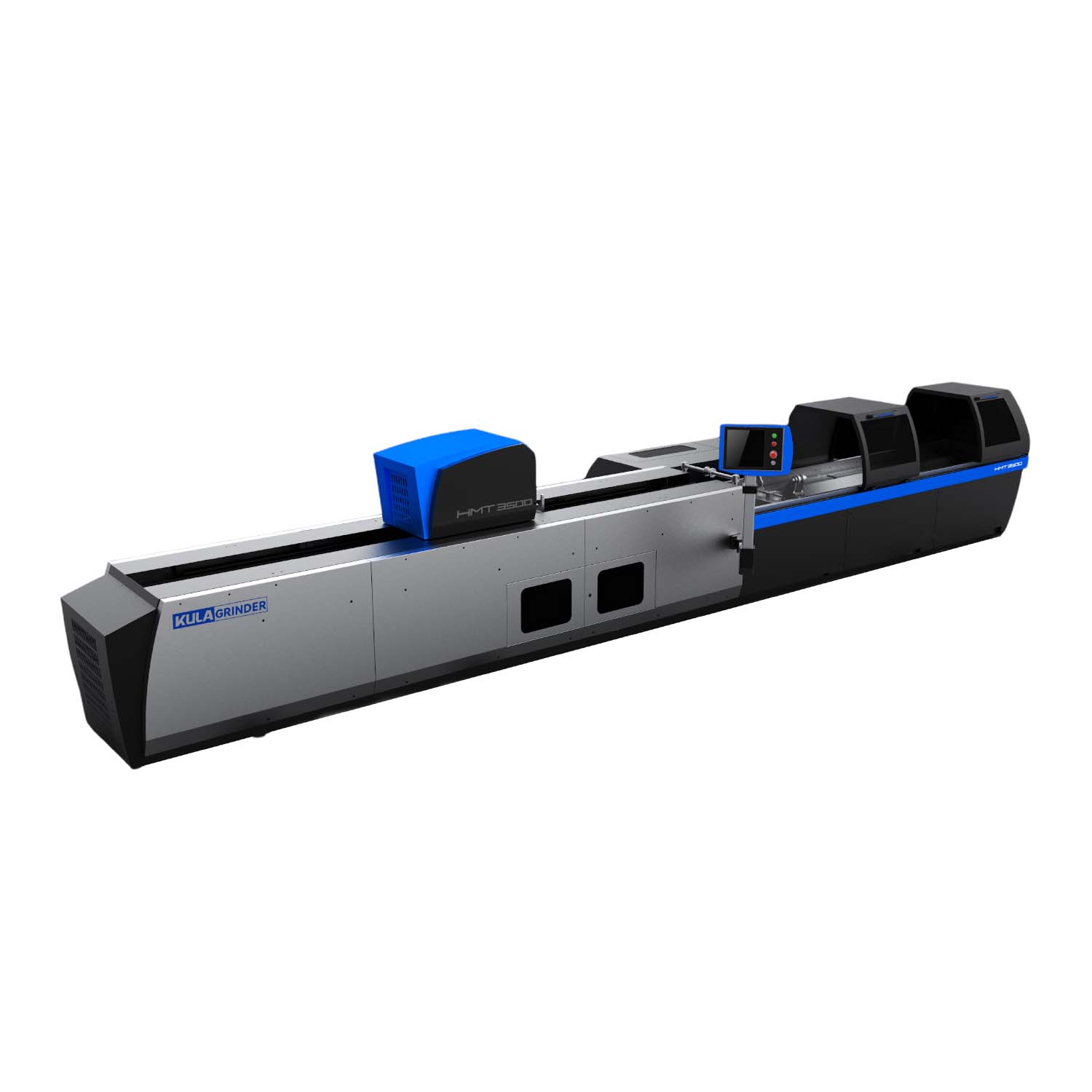

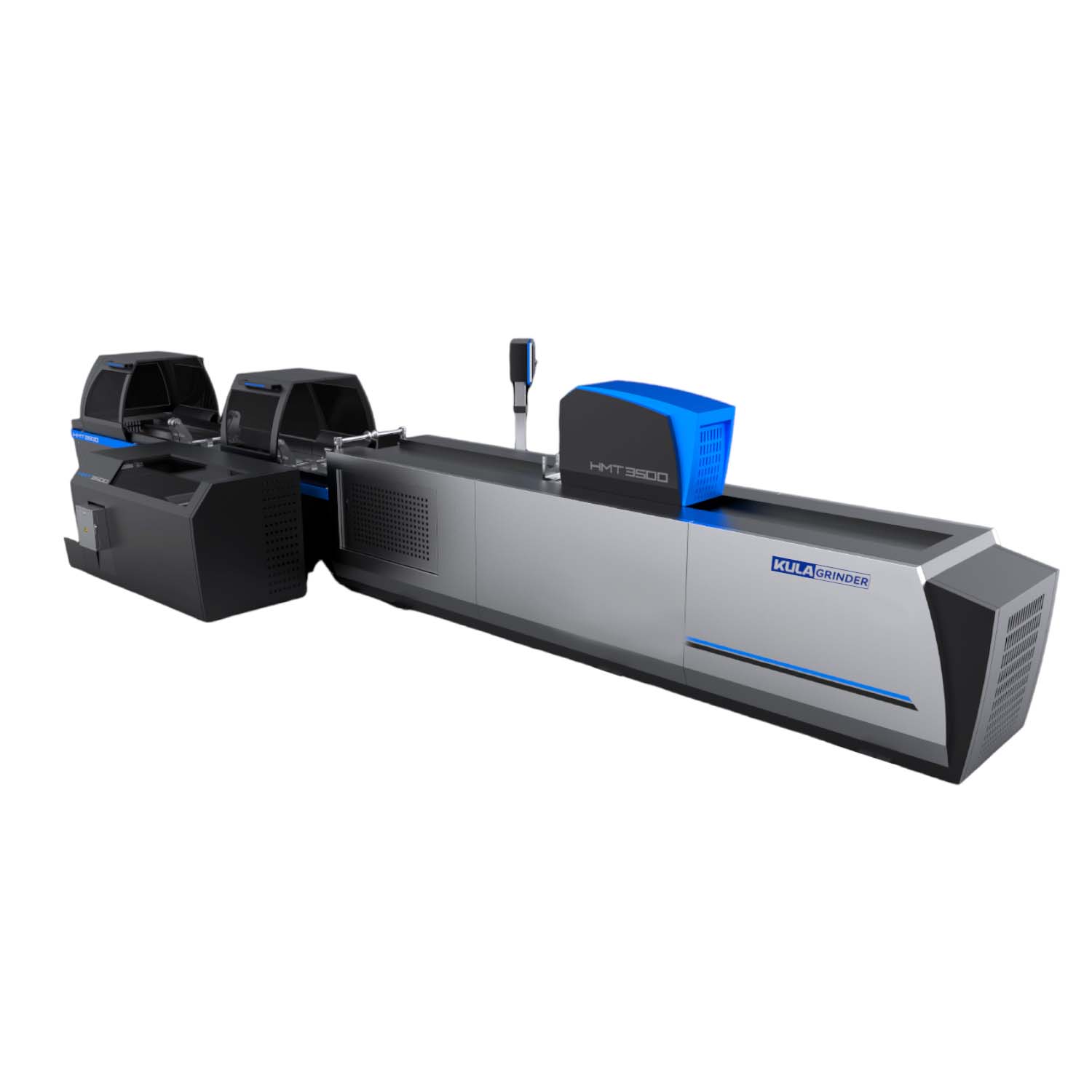

Modern Design And Interactive Interface
The machine features a brand-new appearance design (standard model) and is equipped with a 10.4" touch screen. Its interactive honing interface incorporates menu technology, allowing all parameters to be freely displayed and set for user convenience.
Advanced Control System
The control system includes a tool wear compensation function, enabling precise adjustments for tool wear. This ensures consistent performance and reduces downtime during operations.
Precise Feed Control
The feed system operates using a "servo motor + screw" control mechanism, providing a high-resolution feed accuracy of 1μm, which enhances the precision of the honing process.

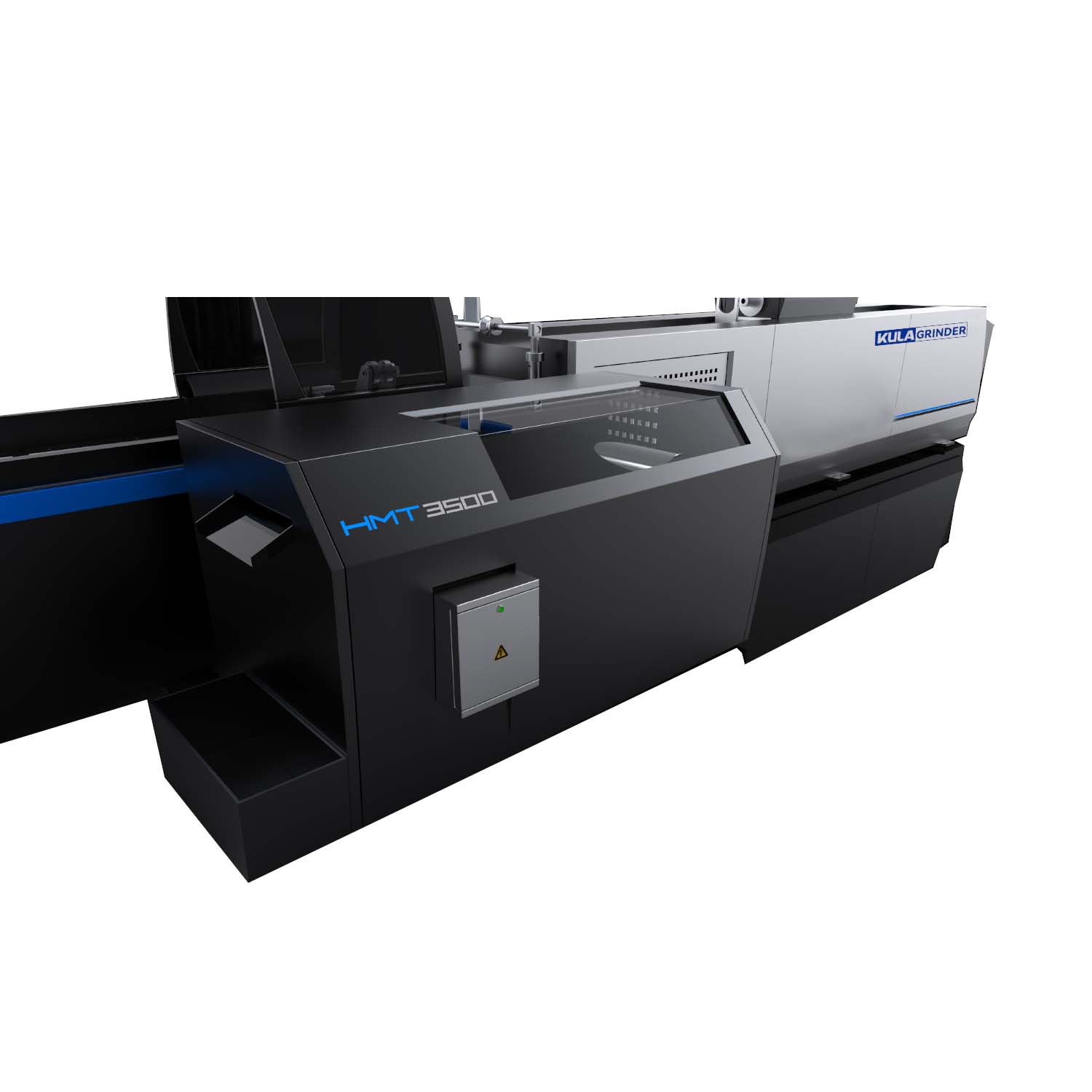

Cooling And Filtration System
The cooling and filtration system comprises a "magnetic separator + paper bag + oil cooler" setup, offering a filtration precision of ≤30μm. The system includes a cooling tank with a capacity of ≥350L and a flow rate of ≥100L/min. Additionally, the constant temperature honing oil control system minimizes the impact of workpiece heating on accuracy.
Optimized Honing Rod Design
The honing rod is designed with an internal oil injection structure, which ensures optimal lubrication during the honing process. This design facilitates faster cooling, easier chip removal, and contributes to improved surface accuracy and production efficiency.

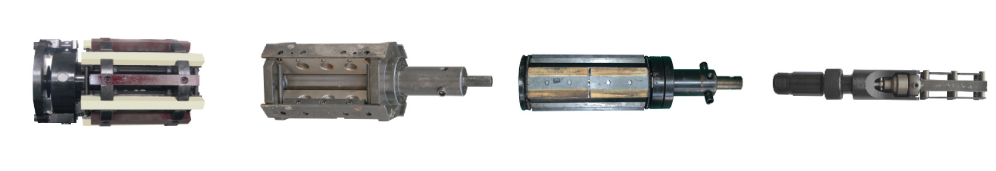

Deep Hole Honing Tools
Technical Specifications
ITEM | Unit | HMTC3500 |
Machining diameter | mm | ∅30-∅500 |
Machining length | mm | 500-12000 |
Gripping outer diameter | mm | ∅100-∅560 |
Spindle speed | r/min | 10-140 |
Spindle drive | KW | Inverter motor,11KW |
Stroke drive | KW | Servo motor,3.5KW |
Machine dimensions | mm | Extended performance depending on model |
Machining diameter range | mm | ∅500-∅1000 |
Machining length | m | 0-18 |
Stroke speed | m/min | 4-20 |
Feed drive | kw | Servo motor,0.75KW |
Feed control method | / | Servo motor+screw rod |
Feed resolution | μm | 1 |
Cooling system | / | Paper tape filter + magnetic separator + oil temperature cooler |
External spray flow rate | L/min | 100 |
Internal spray flow rate | L/min | 30 |
Internal spray Capacity | L | 350-500 |
