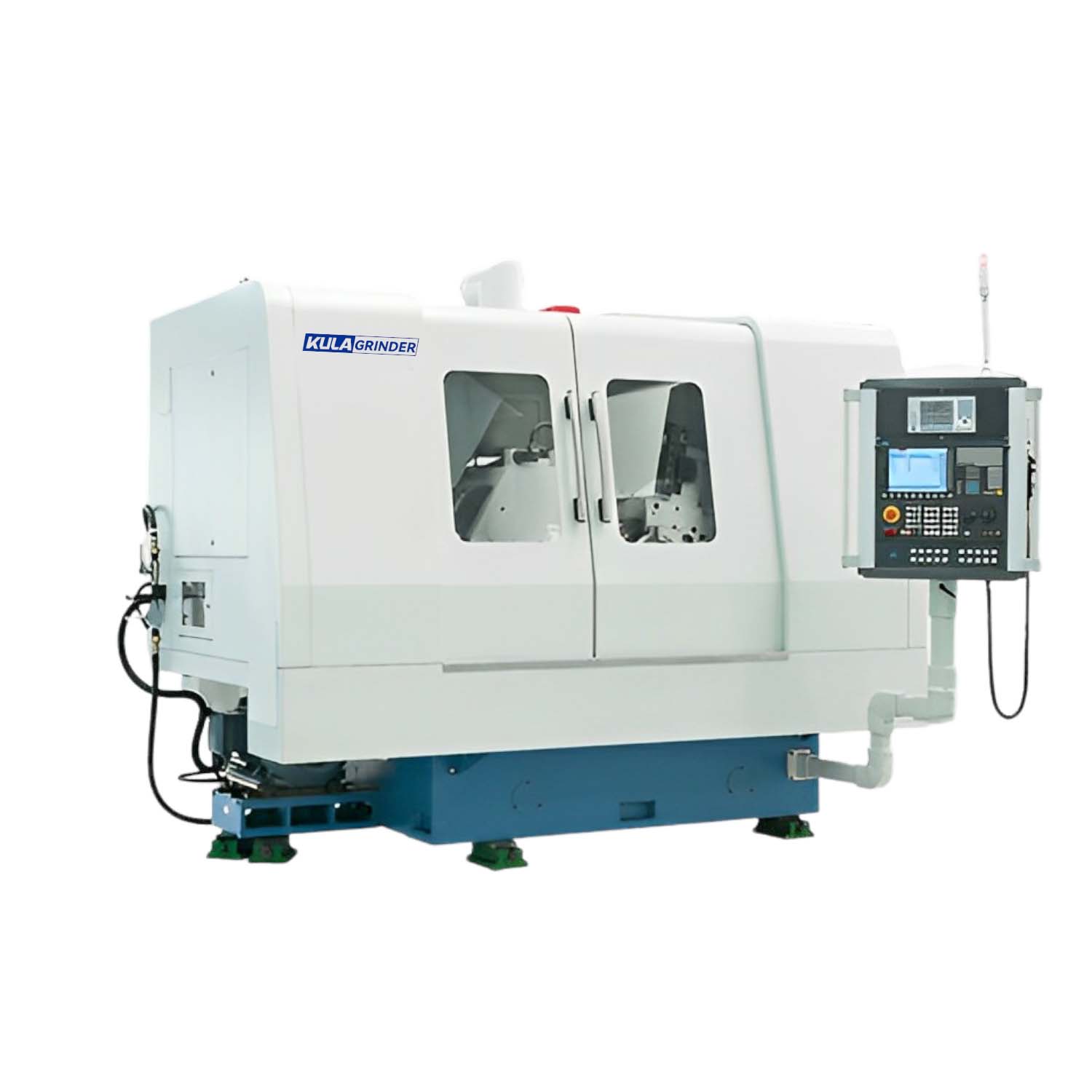

Can a wide wheel CNC centerless grinder handle through-feed grinding for long bars?

Centerless grinding plays a crucial role in modern manufacturing, particularly when it comes to handling long bars. In this article, we will explore whether a wide wheel CNC centerless grinder is suitable for through-feed grinding of long bars by analyzing its technical parameters and real-world applications.

Basic Principles of Centerless Grinding

A centerless grinder operates using two interacting wheels: the grinding wheel, which removes material, and the regulating wheel, which controls the rotation speed and feed rate of the workpiece. This configuration allows for precise grinding without requiring central support for the workpiece. The absence of a center support provides several benefits, particularly for continuous, high-precision grinding of long bars.

In this system, the workpiece is fed through the grinding area, where the grinding wheel removes material from the workpiece, while the regulating wheel keeps it moving at a consistent speed. This setup allows for continuous grinding, making it ideal for producing long bars with high precision.

Technical Advantages of Wide Wheel CNC Centerless Grinders

Wide wheel CNC centerless grinders have become increasingly popular due to their many advantages, particularly when it comes to through-feed grinding of long bars. These grinders offer the following technical benefits:

Precision Control Capabilities

1. High-precision feed systems ensure consistency in grinding performance.

2. Automatic lubrication systems keep the machine running smoothly and reliably.

3. Precision bearings ensure stability and accuracy during the grinding process.

Wide Wheel Benefits

1. Wider wheels provide a larger contact area, enhancing the grinding process.

2. This increased contact area leads to improved surface finish quality.

3. Fewer passes are required to achieve the desired results, improving overall efficiency and reducing wear on components.

These factors contribute to the grinder’s ability to maintain tight tolerances and high-quality finishes over long grinding cycles, making it ideal for long bars.

Key Considerations for Through-Feed Grinding of Long Bars

While wide wheel CNC centerless grinders offer significant advantages, there are several key factors to consider when applying them to through-feed grinding for long bars:

Machine Configuration Requirements

1. Adequate workspace and support systems are crucial for handling long bars effectively.

2. The grinder must have stable feed control to prevent defects during the grinding process.

3. An efficient cooling system is necessary to maintain temperature control, ensuring the quality of both the workpiece and the grinding wheel.

Process Parameter Settings

1. The grinding speed must be optimized for the material being processed to ensure efficiency and precision.

2. The correct feed rate and wheel speed must be determined to achieve the desired finish without compromising material removal rates.

3. The angle of the regulating wheel and grinding wheel should be properly adjusted to prevent errors such as vibration or misalignment during the grinding process.

These factors are essential for achieving the optimal grinding conditions for long bars and preventing issues like surface imperfections or dimensional inaccuracies.

Practical Application Recommendations

For the successful implementation of wide wheel CNC centerless grinders in through-feed grinding of long bars, the following practical considerations should be taken into account:

Equipment Selection

1. Choose a grinding wheel with an appropriate width for the specific production requirements, ensuring it matches the dimensions and material of the bars being processed.

2. Ensure the regulating wheel has a sufficient dynamic range to accommodate varying feed rates and workpiece diameters.

3. Opt for grinders equipped with automatic measurement systems to monitor the progress and quality of the grind in real-time.

Operational Guidelines

1. Consistent feed rates should be maintained throughout the grinding process to ensure uniformity in the finished product.

2. Regular inspection and maintenance of the equipment are crucial to prevent mechanical failures and maintain grinding precision.

3. Monitor the condition of the grinding wheel to ensure it remains sharp and effective throughout the process.

These operational practices will help minimize downtime and maximize the effectiveness of the centerless grinding process.

Conclusion

A wide wheel CNC centerless grinder is well-suited to handle through-feed grinding for long bars. With the right machine configuration, precise parameter settings, and effective operational practices, high-efficiency and high-quality grinding can be achieved. This approach not only enhances production efficiency but also ensures consistent product quality, making it an ideal solution for industries requiring precision grinding of long bar materials. The wide wheel grinder’s technical advantages and capacity for high-precision control make it an essential tool in modern manufacturing environments.
