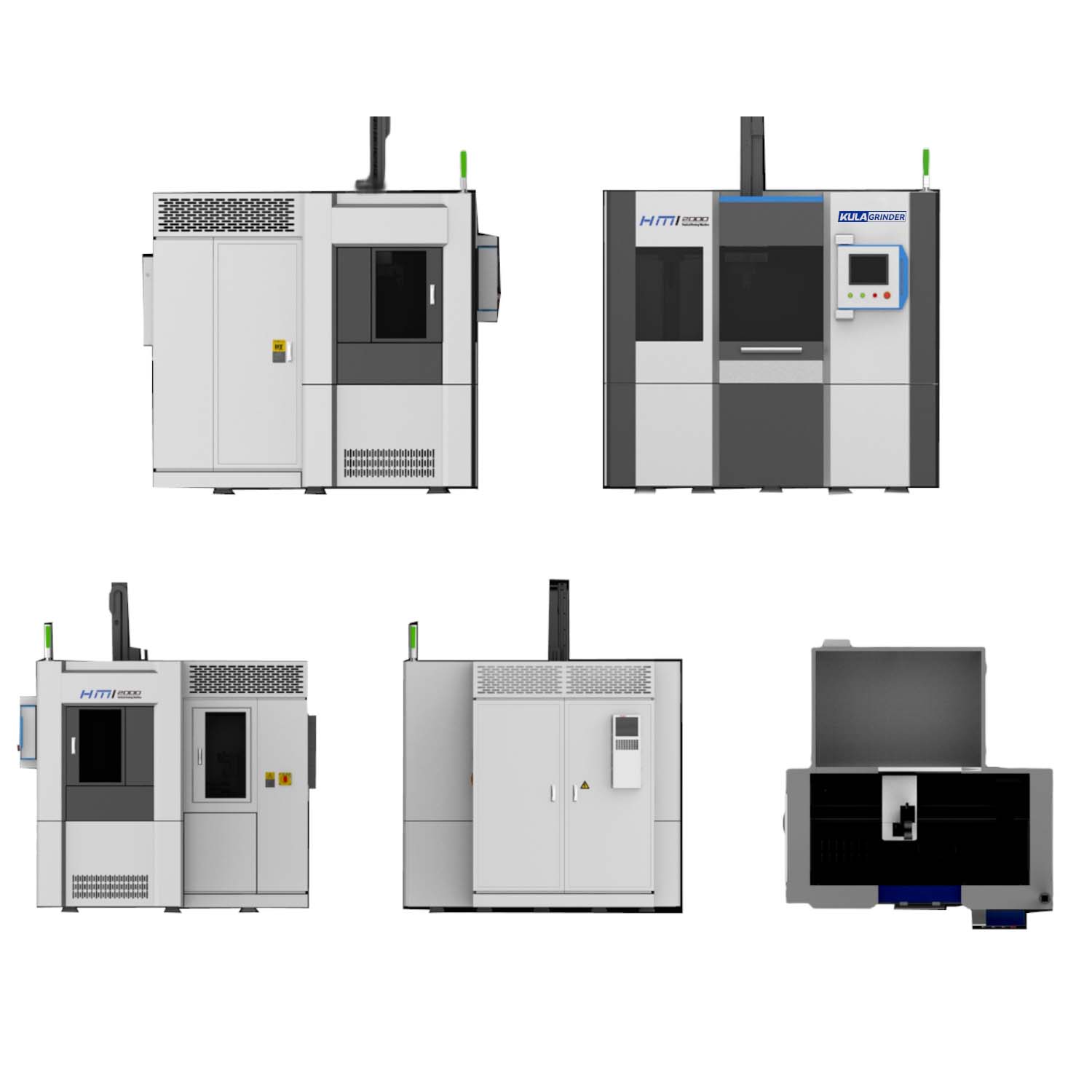

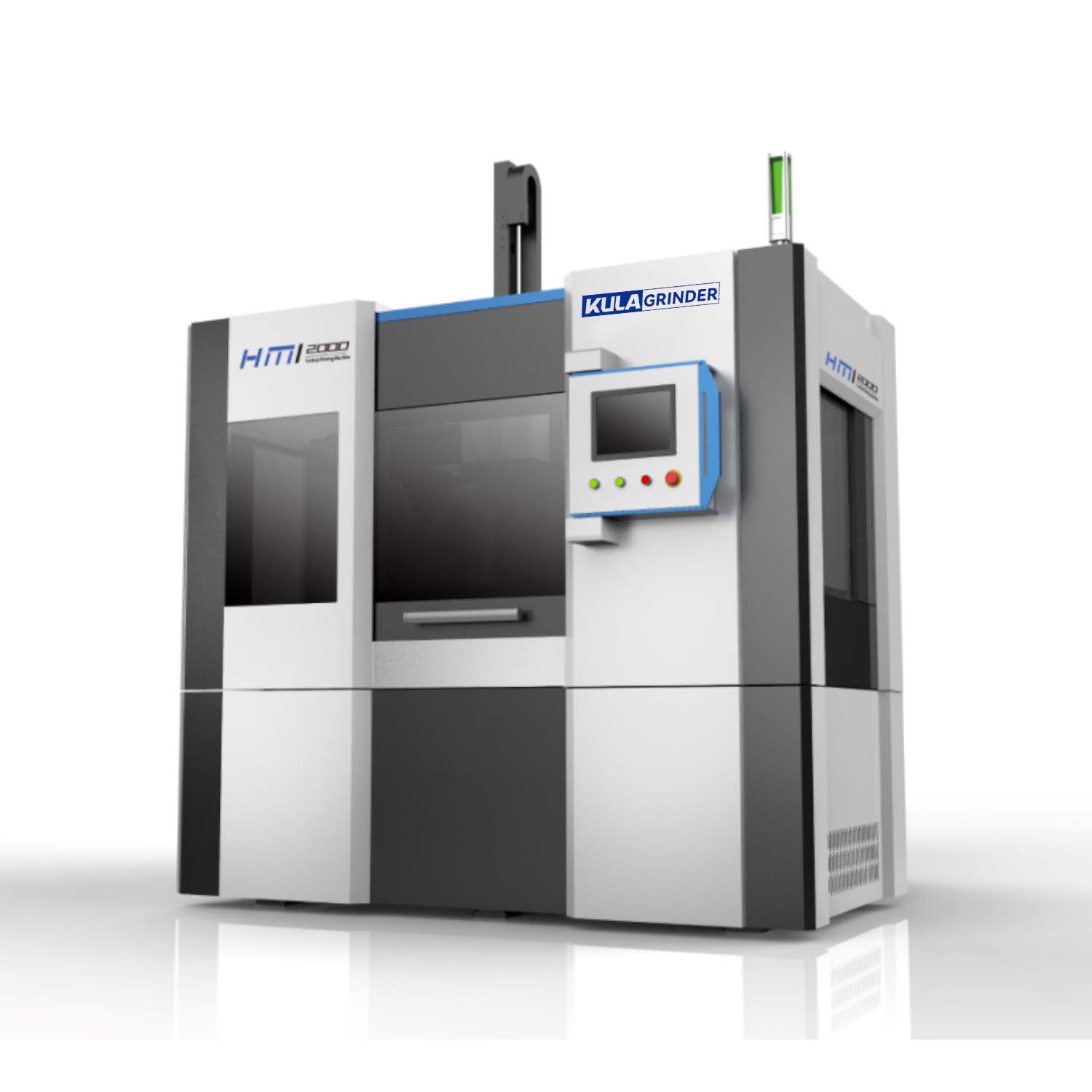

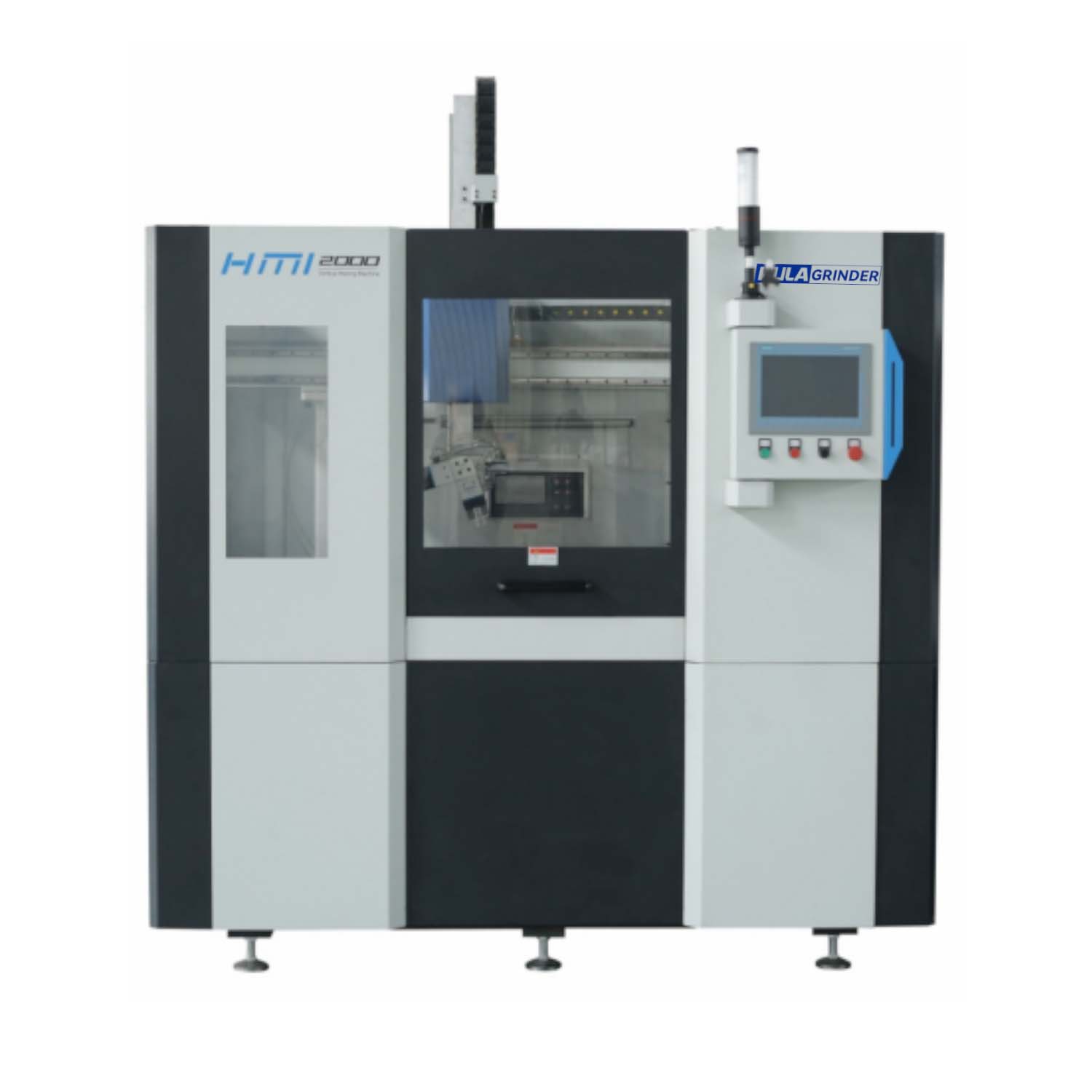

High Precision CNC Horizontal Honing Machine HM Series

Features

Application And Precision

The High-Precision CNC Horizontal Honing Machine is engineered to provide exceptional accuracy and performance in the finishing of small parts across various high-demand industries. Its innovative design and advanced control system make it an ideal solution for precision honing applications in the automotive, aerospace, and machine tool manufacturing sectors.

Application And Precision

This machine is designed with ease of installation, delivering precise results right from the start. Featuring dual inverter control for both the spindle and stroke, it allows seamless matching and conditioning of reticulated patterns for optimized surface finishes. The intuitive numerical control system, operated via a touch screen, enables quick and easy adjustment of honing parameters, ensuring enhanced productivity and flexibility during operation.

Key operational features include automatic stopping at size zero, along with "fixed point" and "timed" functionalities. This ensures accuracy in honing dimensions and enhances operational efficiency. The machine also incorporates a double-guide stroke bracket and an enhanced connecting rod drive system, providing faster stroke speeds and reduced cycle times, thus improving throughput.

Product Features

• Ease of Operation: The user-friendly interface with a numerical control touch screen simplifies parameter adjustment, allowing operators to quickly modify settings to suit specific machining tasks.

• Enhanced Productivity: Automatic compensation for stone wear ensures consistent performance without frequent manual intervention, minimizing downtime and ensuring optimal precision over extended operations.

• High Machining Accuracy: The dual inverter control system, along with the advanced drive design, guarantees high precision in honing, particularly for small parts that require tight tolerances.

Scope Of Application

This CNC honing machine is specifically designed for honing small components across several industries:

• Automotive Industry: Ideal for honing small engine parts and other precision components.

• Aerospace: Suitable for the fine finishing of critical aerospace parts, ensuring high standards of accuracy and surface quality.

• Machine Tool Manufacturing: Provides reliable and precise honing for small, intricate components used in machine tools, supporting consistent quality in high-tech manufacturing.

With its robust design, high accuracy, and ease of maintenance, the High-Precision CNC Horizontal Honing Machine is a reliable and efficient choice for manufacturers looking to achieve superior results in small parts honing with minimal operator involvement.

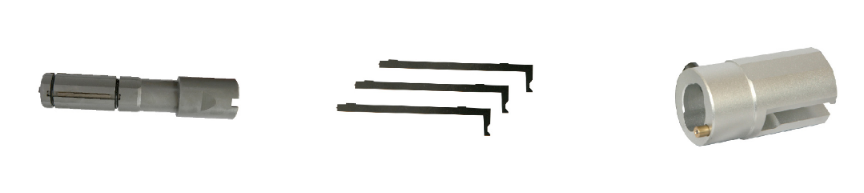

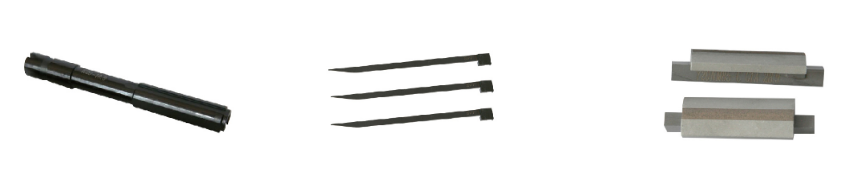

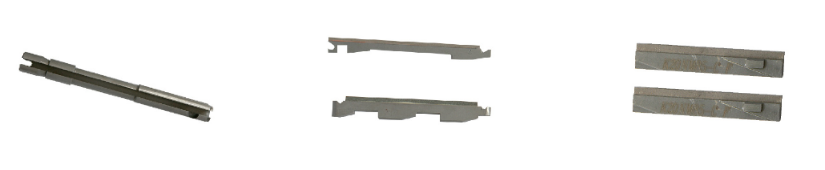

Honing Tools

Horizontal honing rod - hard rod	Hoing stone push plate	Honing stone for key slot hole
Horizontal Multi-Sandle Honing Rod	Hoing stone thimble	Tool connector
Horizontal Honing Rod - Soft Rod	Multiple grit honing bar stone	Honing stone for keyless slots

Processing Parts

automotive part

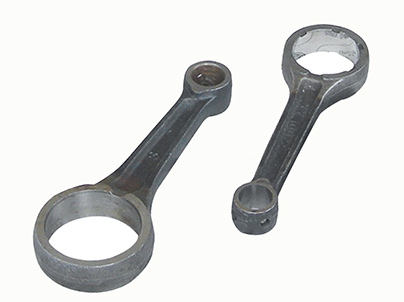

connecting rod

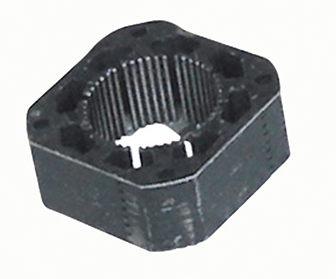

Stator

Gear

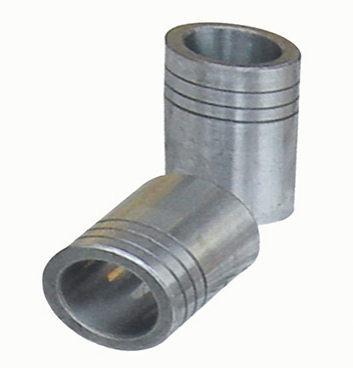

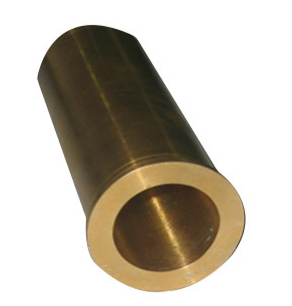

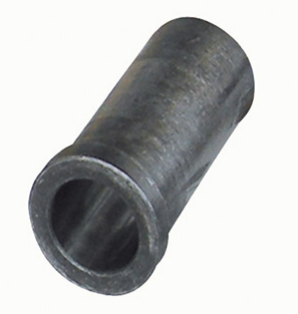

guiding sleeve

Technical Specifications
